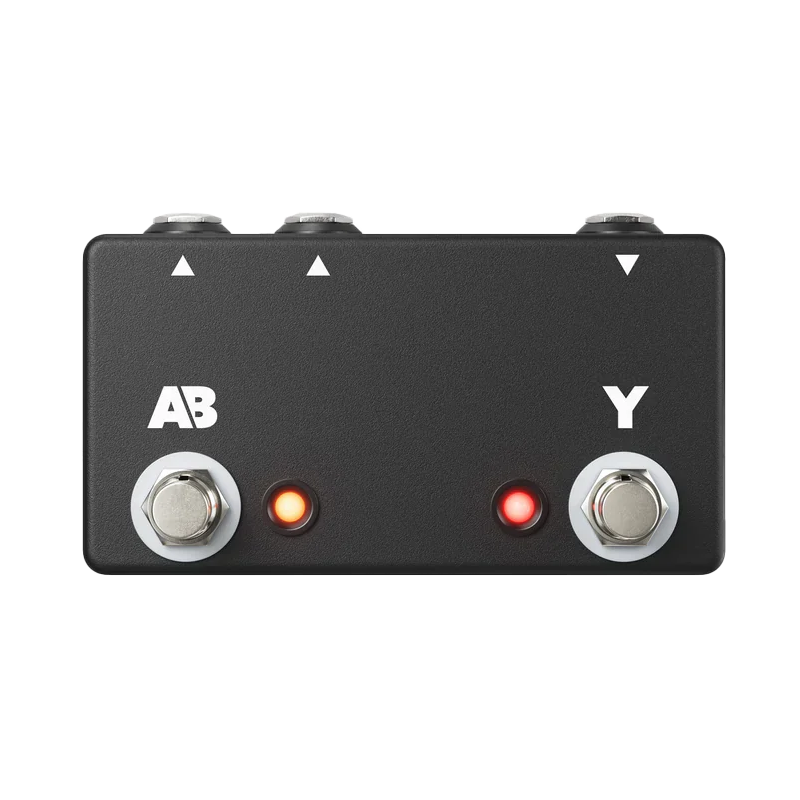

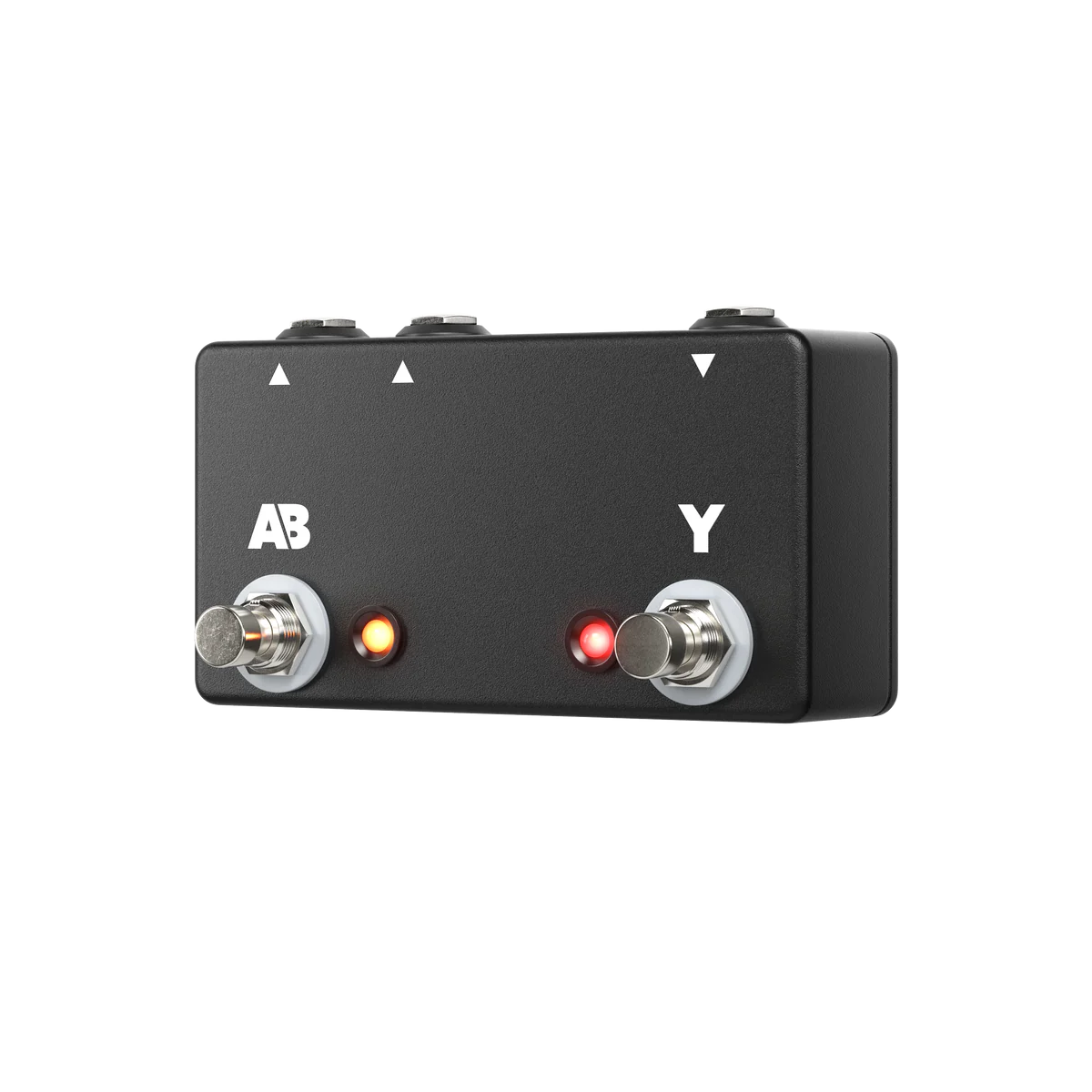

JHS brand routing pedal, Active ABY.
- FET transistors for silent switching
- Requires 9V power supply
- Dimensions: 112 x 60 x 31 mm
- Weight: 300 g
- Made in the USA
The JHS Active A/B/Y pedals are the perfect solution when you need to send a signal to two outputs, with the ability to select one (or both) instantly. Simply connect your instrument (or connection cable) to the input and use the outputs to send the signal to any combination of amplifiers, interfaces, mixing consoles, or any other destination. Once connected, use the left pedal to switch between channels A and B. When the LED is red, channel A is active.
When the LED is green, channel B is active. Press the right "Y" pedal to activate BOTH mono outputs. Since the Active A/B/Y features a transformer on one of the outputs, a ground connection is not necessary, as the transformer eliminates any hum.
- Active operation
- Output transformer that eliminates hum
- No ground connection required
- FET transistors for silent switching
- Polarity reversal switch (Channel A)
- A/B pedal switch
- Y pedal switch
- Status LEDs
- Metal enclosure
- 6.3 mm mono jack input
- 2 x 6.3 mm mono jack outputs
- Powered by a 9V DC adapter
- Not battery operated
- Power consumption: 47 mA
- Dimensions: 112 x 60 x 31 mm
- Weight: 300 g
- Made in the USA
About JHS Pedals
JHS was founded in 2007 by Joshua Heath Scott, who used his initials for branding. Josh started by modifying BOSS pedals for himself and friends, and shortly after began developing his own circuits, such as the Morning Glory — one of his first pedals, inspired by the Marshall Bluesbreaker, which is still in production today. Over time, Josh has built a passionate team, positioning JHS as a prominent name in guitar effects worldwide.
EAN13: 0650415212125
