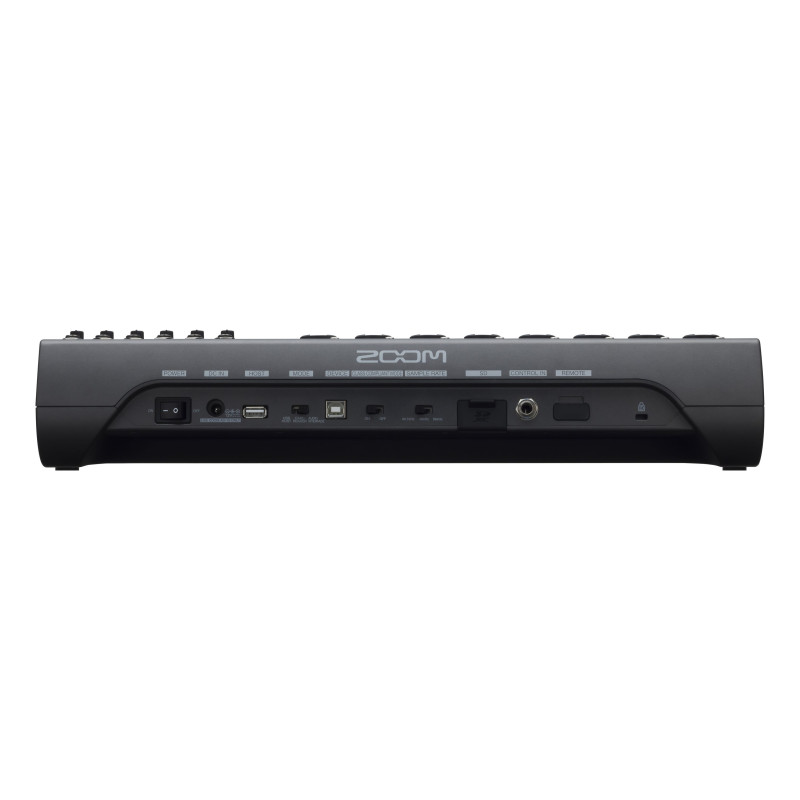

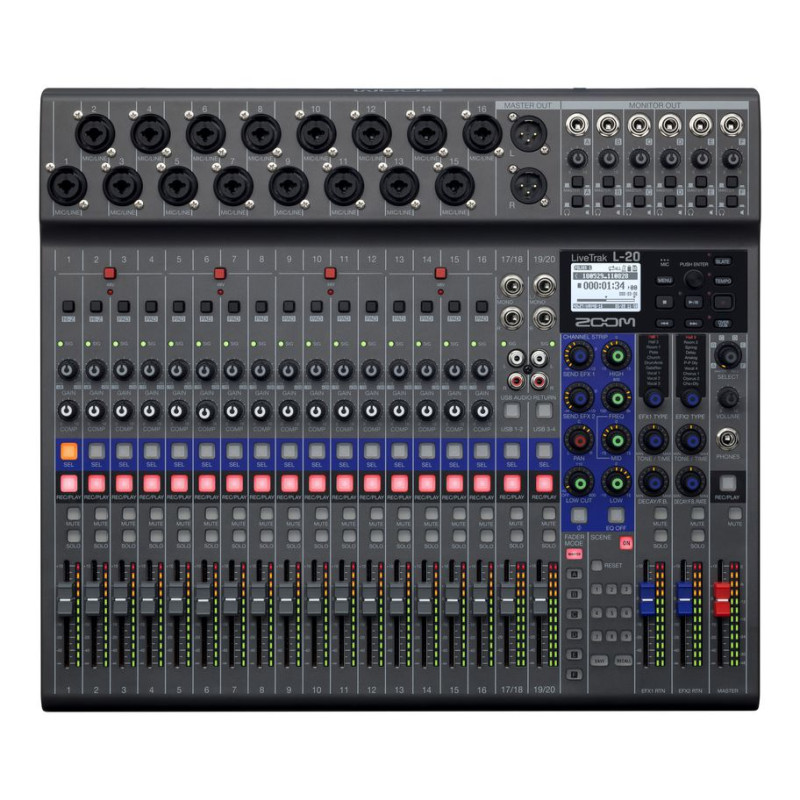

Zoom L-20 LiveTrak

LiveTrak L-20 is the new digital mixer that offers everything creators need to mix, monitor, and record complex productions. With 20 discrete audio channels and six personalized monitor mixes, it is designed for larger, bolder arrangements.

• 20 discrete channels (16 mono channels plus two stereo channels) with XLR and 6.3 mm jack inputs
• Simultaneous recording of 22 tracks and playback of 20 tracks
• USB audio interface with 22 inputs and 4 outputs
• Records audio up to 24 bits / 96 kHz to SD card
• 48V phantom power
• Hi-Z connectivity (channels 1-2)
• Pad of 26 dB (channels 3 to 16)
• Built-in compression control (channels 1-16)
• Solo and Mute buttons for individual channels
• Variable high-pass filter per channel, adjustable between 40 - 600 Hz
• Sum output and six configurable monitor outputs
• Monitor outputs can be configured as headphone output or standard line-level output
• Separate additional headphone output
• Scene memory function, up to 9 scenes simultaneously
• 20 built-in effects including chorus, delay, and reverb, with adjustable parameters
• Two effects buses
• Built-in Talkback microphone
• Pre-recording function
• Native operation (for iOS compatibility)
• Automatic start and stop of recording
• Project import and export via USB 2.0 interface
• Functions compatible with ZOOM FS01 footswitch
• Includes power supply (AD-19), USB 2.0 cable, and quick start guide
• Dimensions: 445 x 388.4 x 82.6 mm
• Weight: 3.71 kg
