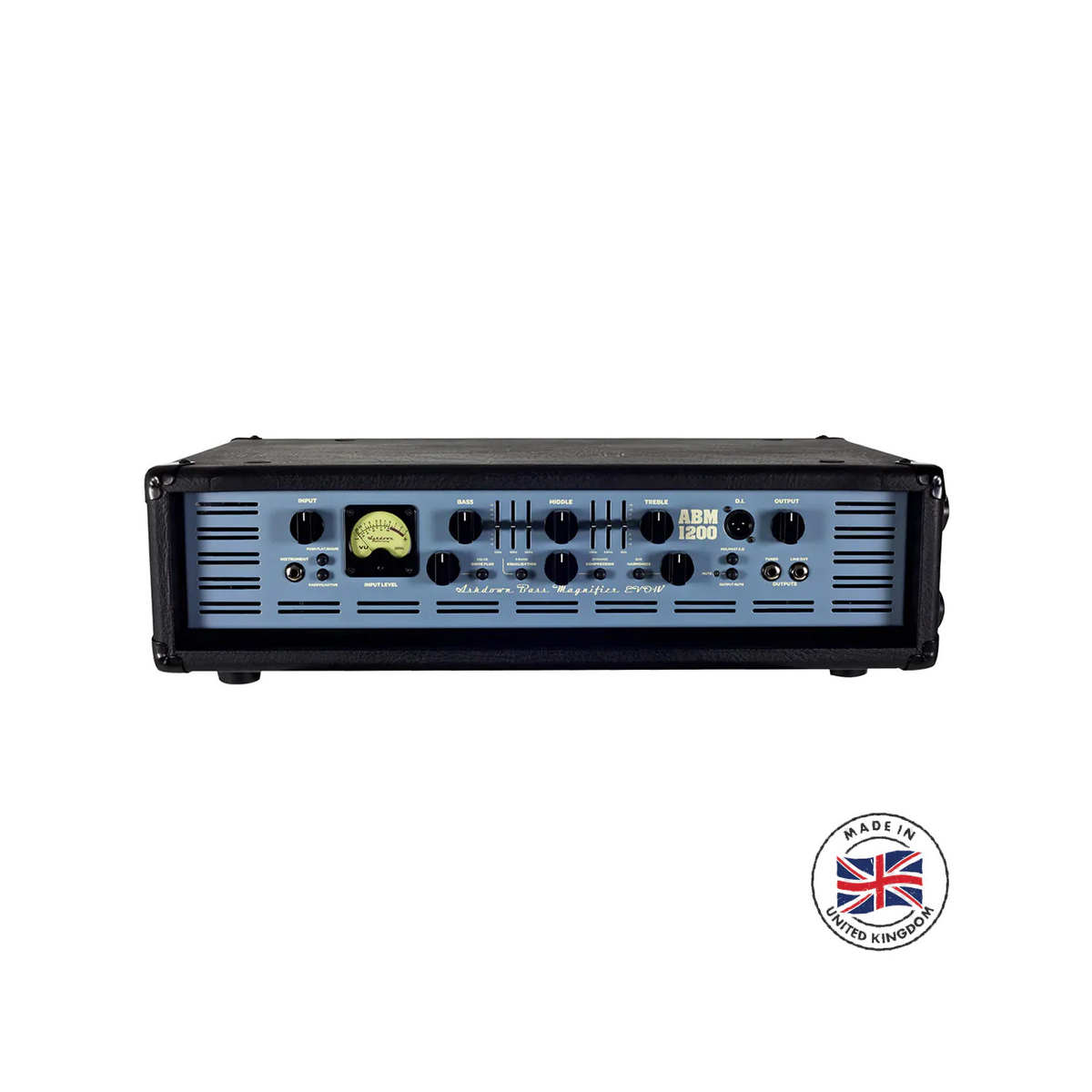

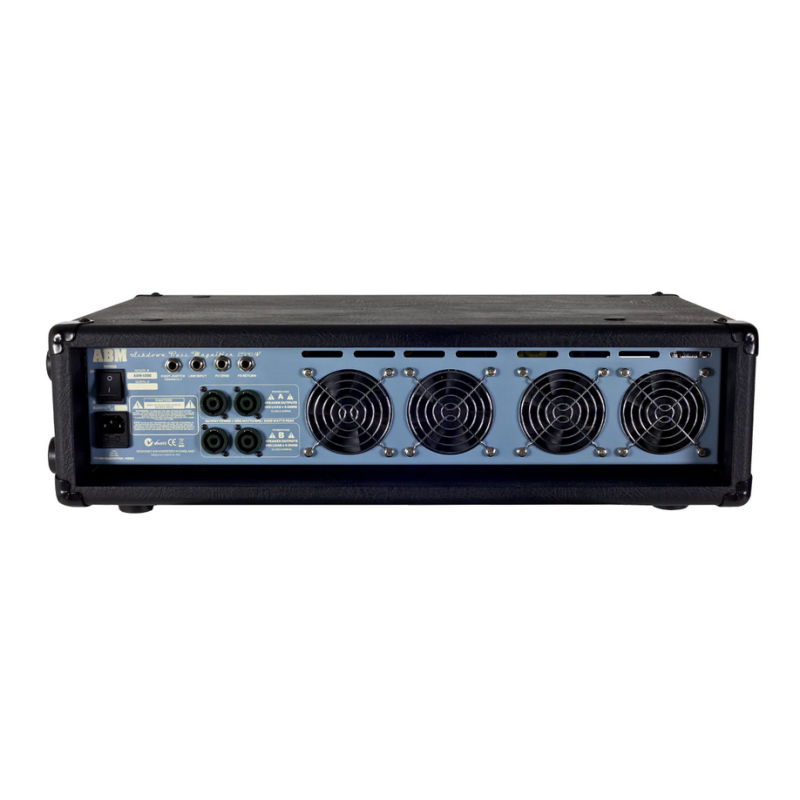

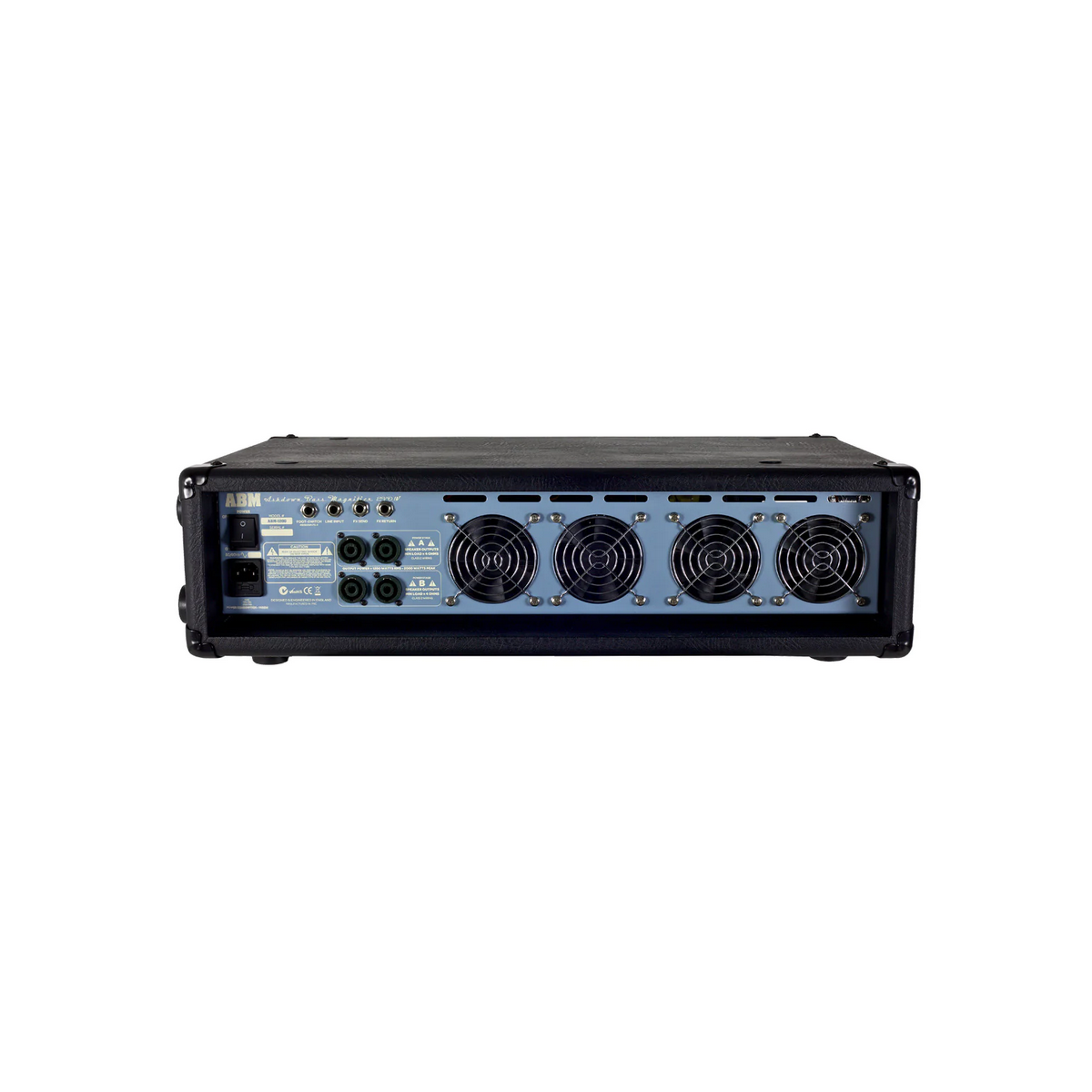

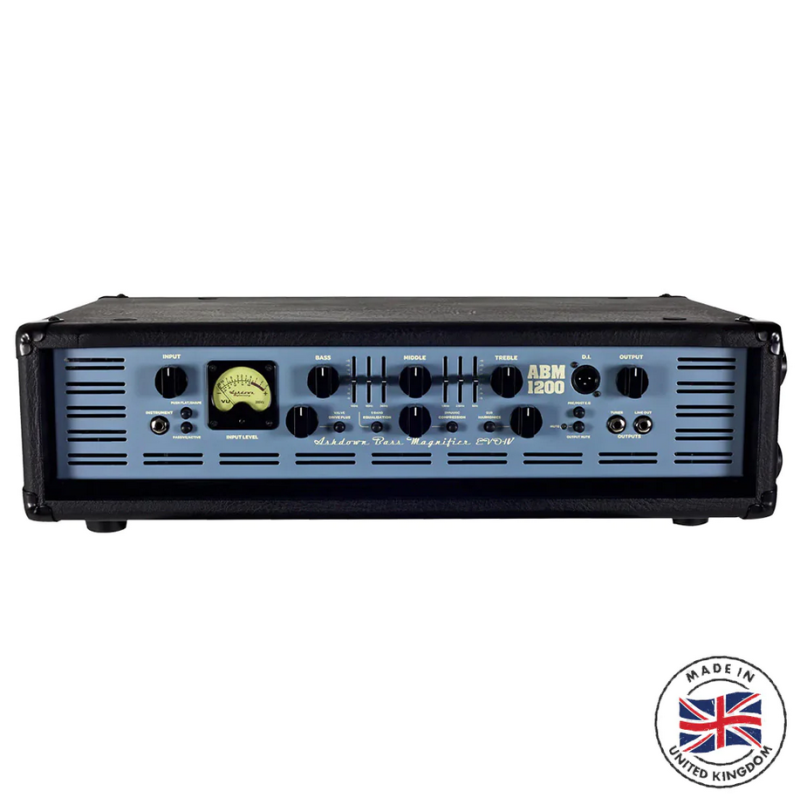

Ashdown ABM 1200 Evo IV Head

The variable valve drive section of the preamp has been improved in the EVO IV version. By supplying more current to the 12AX7 tube, it delivers increased dynamics and harmonic content, allowing the bassist to transition from a pure tone to the richest and most complete bass overdrive available today. The Drive level can be preset and toggled on or off via a footswitch, providing access to a wide range of bright, warm, and saturated sounds.

Some of the favorite features of the ABM have been retained in the EVO IV version, including Ashdown's renowned one-button dynamic compressor, which enables powerful bass tones. This easy-to-use compressor, with high-quality sound, produces a strong and consistent tone, ensuring your bass blends seamlessly into any mix.

• Power: 600 + 600 Watts
• Power requirements: 115-230 volts
• Speaker outputs: 4 Neutrik Jack/Speakon outputs
• Frequency response: -3dB at 17Hz and 30KHz
• High impedance input: 3.9M ohms, input range of 150mV
• Low impedance input: 10k ohms, input range of 300mV - 40V p-p
• Line input: 22k ohms impedance, nominal input level of 0dBu
• DI output: 600 ohms balanced, 0dBu nominal
• Tuner output: 22k ohms impedance, nominal level of 0dBu
• Minimum impedance: 4 ohms per side
• Effects send: 22k ohms impedance, nominal level of 0dBu
• Effects return: 22k ohms impedance, nominal input level of 0dBu
• Preamplifier tube: 1x 12AX7
• Dimensions (mm): 174 x 645 x 357
• Weight: 18.6 Kg

About Ashdown Engineering

The history of Ashdown dates back to 1997, but even in those early days, the company's founder, Mark Gooday, was already considered a veteran of bass amplification. After intense competition with another leading electric bass amplifier manufacturer in the UK, Gooday managed to position his company among the largest, thanks to his pioneering approach, and focused on even higher aspirations, developing what is now this manufacturer’s legacy.
