Earthquaker Devices Data Corrupter
Reference:
EQDDATAV1EU
Add to compare
(0)
- Monophonic PLL modulated harmonizer
- Provides playable guitar synthesizer / square wave fuzz sounds
- Three fully mixable voices (Master Oscillator, Subharmonic, Square) capable of harmonies up to three octaves above/below the input
- Two frequency modulation modes (Glide mode - pitch-bend mode with smooth portamento and retro sci-fi laser effects)
- Frequency modulation applied to the Master Oscillator and Subharmonic sounds
- Fully analog signal path
- True Bypass
- Optional 9V DC power supply (not included)
- Not battery operated
- Dimensions (depth x width x height): 117 x 92 x 57mm
- Power consumption of 25 mA
- Handmade in the United States
- Voice mixer section controls for Square, Subharmonic, Oscillator, and Level
- 8-way rotary Master Oscillator switch to select the Master Oscillator program
- Master Oscillator Root toggle switch to select between Unison -1 and -2 settings
- Frequency Modulator section control for Rate, Glide/Vibrato switch to toggle the Frequency Modulator mode
- 8-way rotary Subharmonic switch to select the Subharmonic program
- Subharmonic Root toggle switch to choose between Unison and Oscillator configurations
- Bypass pedal
- Silent relay-based switching
- Mono input and output connections, 6.3mm (1/4")
- Status LED
- Metal enclosure

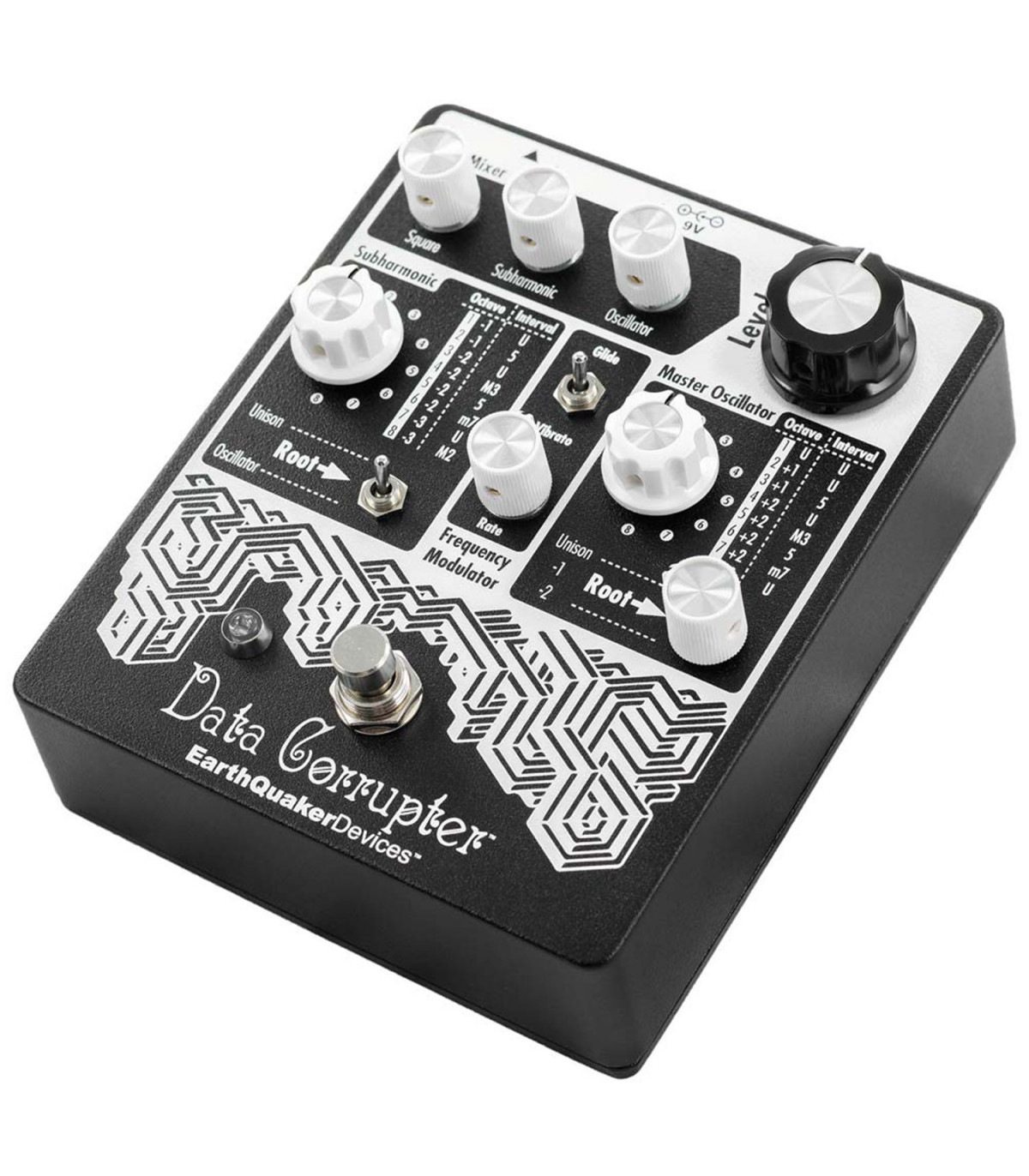

The Data Corrupter is a monophonic PLL analog harmonizer with modulation. It takes your input signal and brutally amplifies it into a crushing square wave fuzz sound that multiplies, divides, and modulates to create a wild, yet repeatable, three-voice guitar synthesizer.
The Master Oscillator system is the central nervous system at the heart of the Data Corrupter's cyberpunk collective intelligence. The three-position switch on the Master Oscillator panel, called Root, introduces your input into the Data Corrupter's signal harvest in its original octave (Unison), one octave down (-1), or two octaves down (-2).
About EarthQuaker Devices
EarthQuaker Devices was founded in 2004 by musician Jamie Stillman, who began designing effect pedals after successfully repairing a broken overdrive pedal. Today, it is a manufacturer whose team is deeply passionate about music. They produce their pedals one by one, handcrafted and tested in Ohio, USA.
EAN13: 0855755007060
EQDDATAV1EU
Data sheet
- Effects Loop
- No
- Power Supply
- A/C Adaptor
- Format
- Classic
- Technology
- Analog
- True Bypass
- Yes
- Made In
- Usa
- Effect For
- Guitar
- Voltage
- 9V
- In
- Mono
- Out
- Mono
- Effect Type
- Harmonizer
- Power Supply Included
- No
- USB Port
- No
- MIDI Control
- No
- EXP Out
- No
- SALIDA FOOTSWITCH
- No
- Tap Tempo
- No
