PRS Stack HDRX20 + 1X12

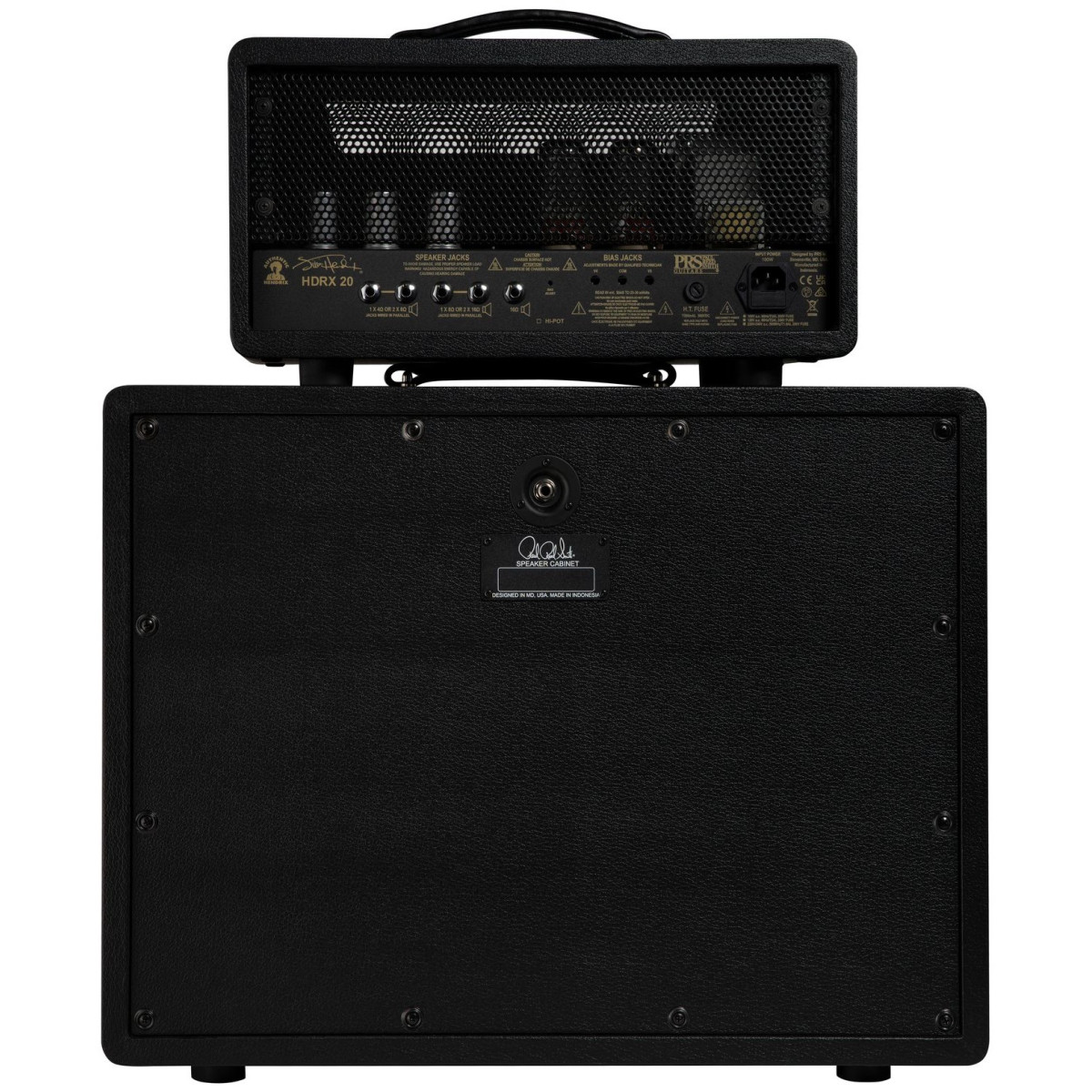

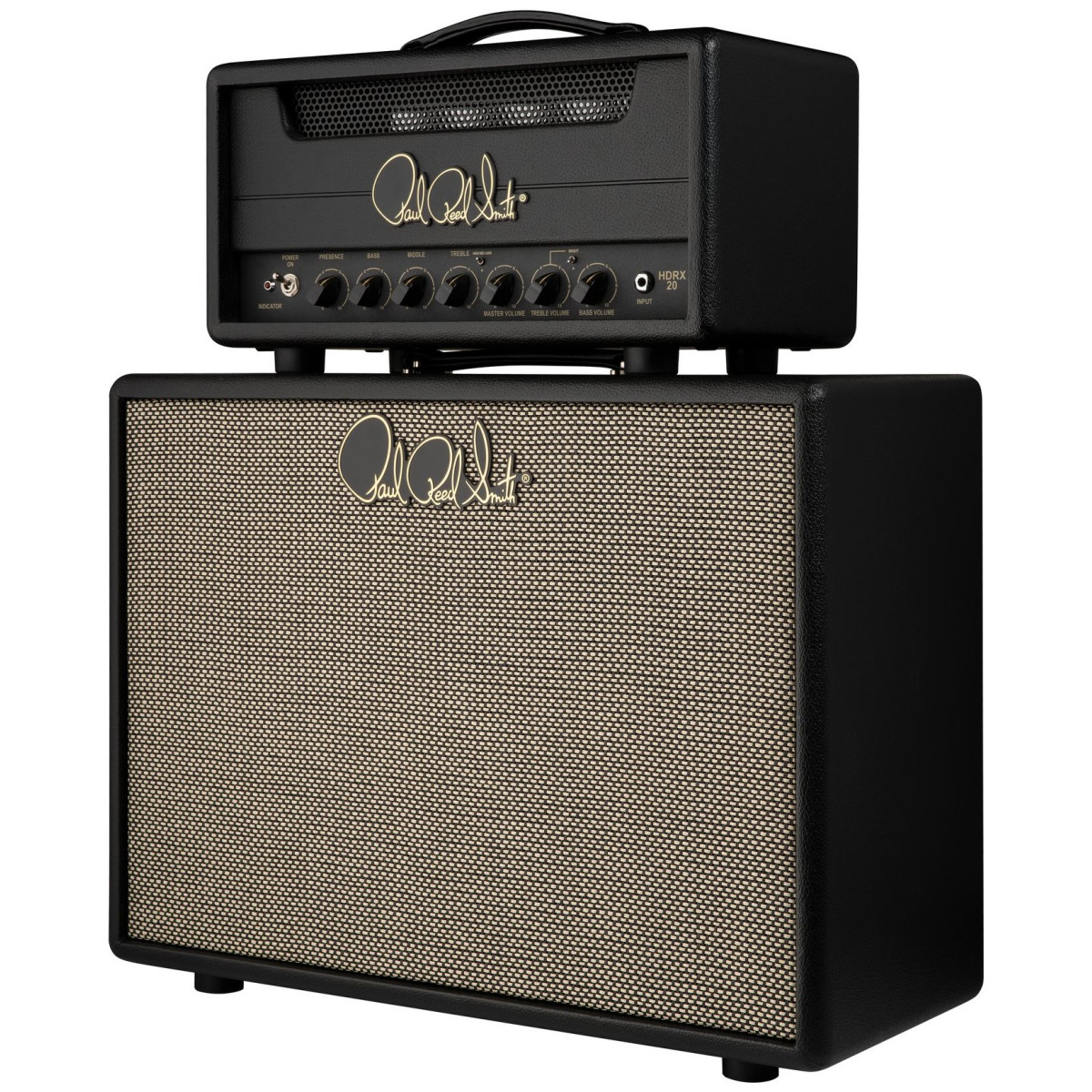

Stack of tube amp composed of the HDRX 20 head and a 1x12 closed-back speaker cabinet, Stack HDRX20 + 1X12.
- 20 W power output with two 5881 tubes
- Circuit inspired by British amplifiers used by Jimi Hendrix
- Two internally linked channels with independent volume controls
- Master Volume, three-band EQ, Presence, Bright, and High Mid Gain controls
- Celestion V-Type 12-inch speaker with 70 W power handling
The PRS Stack HDRX20 + 1X12 combines the HDRX 20 tube head with its closed-back 12-inch speaker cabinet, creating a compact rig inspired by late 60s British sounds. Its “Authentic Hendrix” Touring Circuit is modeled after one of Jimi Hendrix’s personal amplifiers, delivering defined treble, expressive mids, and a dynamic response that allows seamless transition from characterful clean tones to warm, articulate overdrive.
The head delivers 20 W through two 5881 power tubes and features two internally linked channels with independent volume controls for the bass and treble sections. The Master Volume control allows for preamp saturation while maintaining a more controlled overall level. The HDRX 1x12 cabinet has a closed-back construction and houses a 70 W Celestion V-Type speaker, providing a balanced sound with deep bass, musical mids, and clear highs.
- Stack comprising the PRS HDRX 20 head and PRS HDRX 1x12 Closed Back cabinet
- Amplifier type: Fully tube head
- Head power: 20 W
- Circuit: “Authentic Hendrix” Touring Circuit
- Power tubes: 2 x 5881 or 6L6WGC-STR Short Bottle
- Preamp tubes: 3 x 12AX7 / ECC83
- Channels: 2 internally linked channels
- Channel controls: Bass Volume and Treble Volume
- Equalization: Treble, Middle, and Bass
- General controls: Master Volume and Presence
- High Mid Gain switch to boost gain and mid-high frequencies
- Bright switch to enhance high-frequency presence
- Speaker outputs: 2 x 4 ohms, 2 x 8 ohms, and 1 x 16 ohms
- Bias adjustment with measurement points
- Head finish: Black Tolex
- Head dimensions: 43.82 x 22.86 x 22.86 cm
- Head weight: 12.52 kg
- Cabinet format: 1x12
- Cabinet construction: Plywood with closed back
- Speaker: 12-inch Celestion V-Type
- Cabinet power handling: 70 W
- Cabinet impedance: 16 ohms
- Front grille: Salt and Pepper-style British fabric
- Leather handle with metal supports
- Cabinet dimensions: 60.96 x 26.67 x 45.72 cm
- Cabinet weight: 11.79 kg
HDRX
The PRS HDRX series features amplifiers and cabinets inspired by late 60s British sound. Its design is based on a circuit modeled after one of Jimi Hendrix’s personal amplifiers, developed by Paul Reed Smith and designer Doug Sewell. This family is known for delivering clear, non-screechy highs, balanced lows, and a dynamic response capable of shifting from smooth, clean tones to powerful, expressive saturation.
