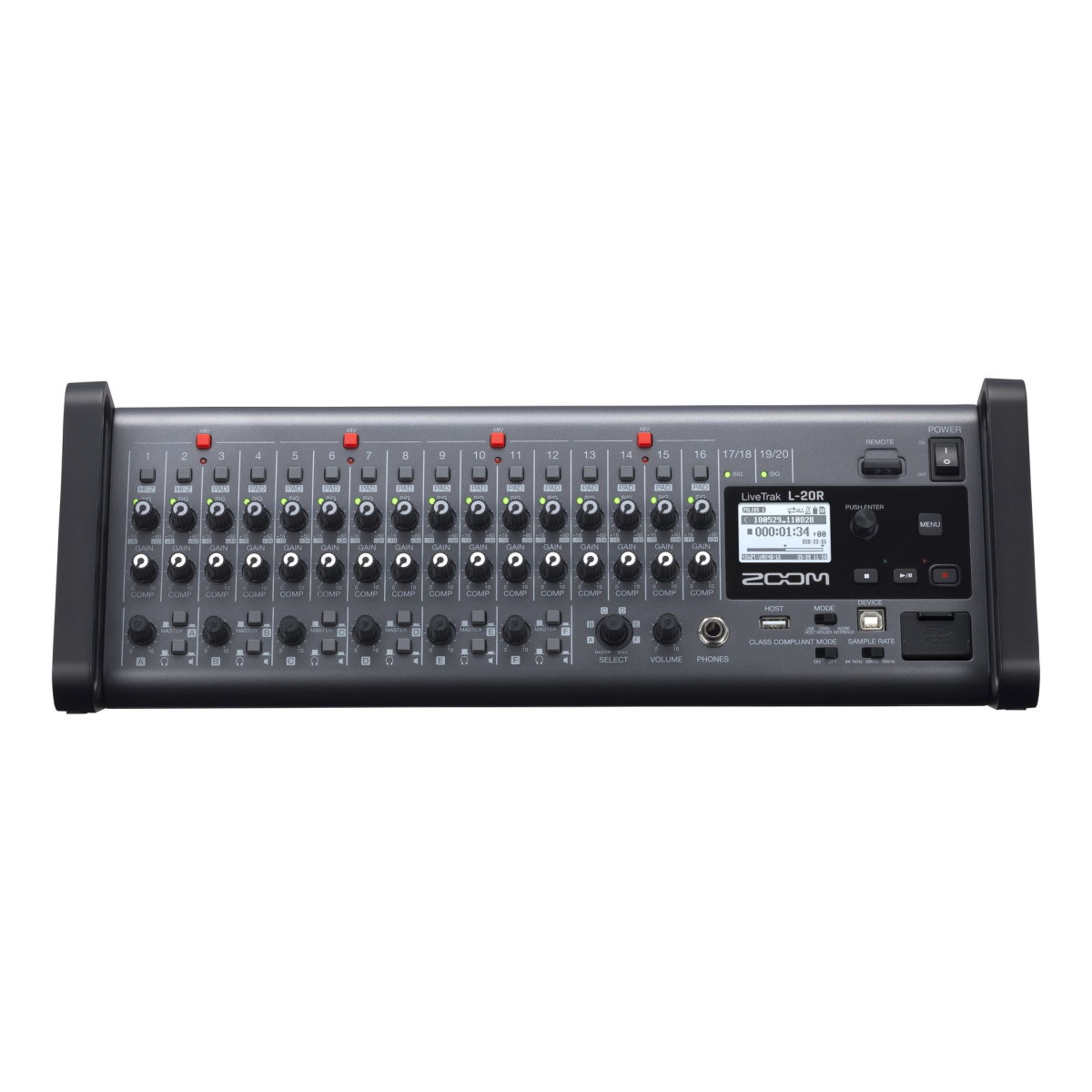

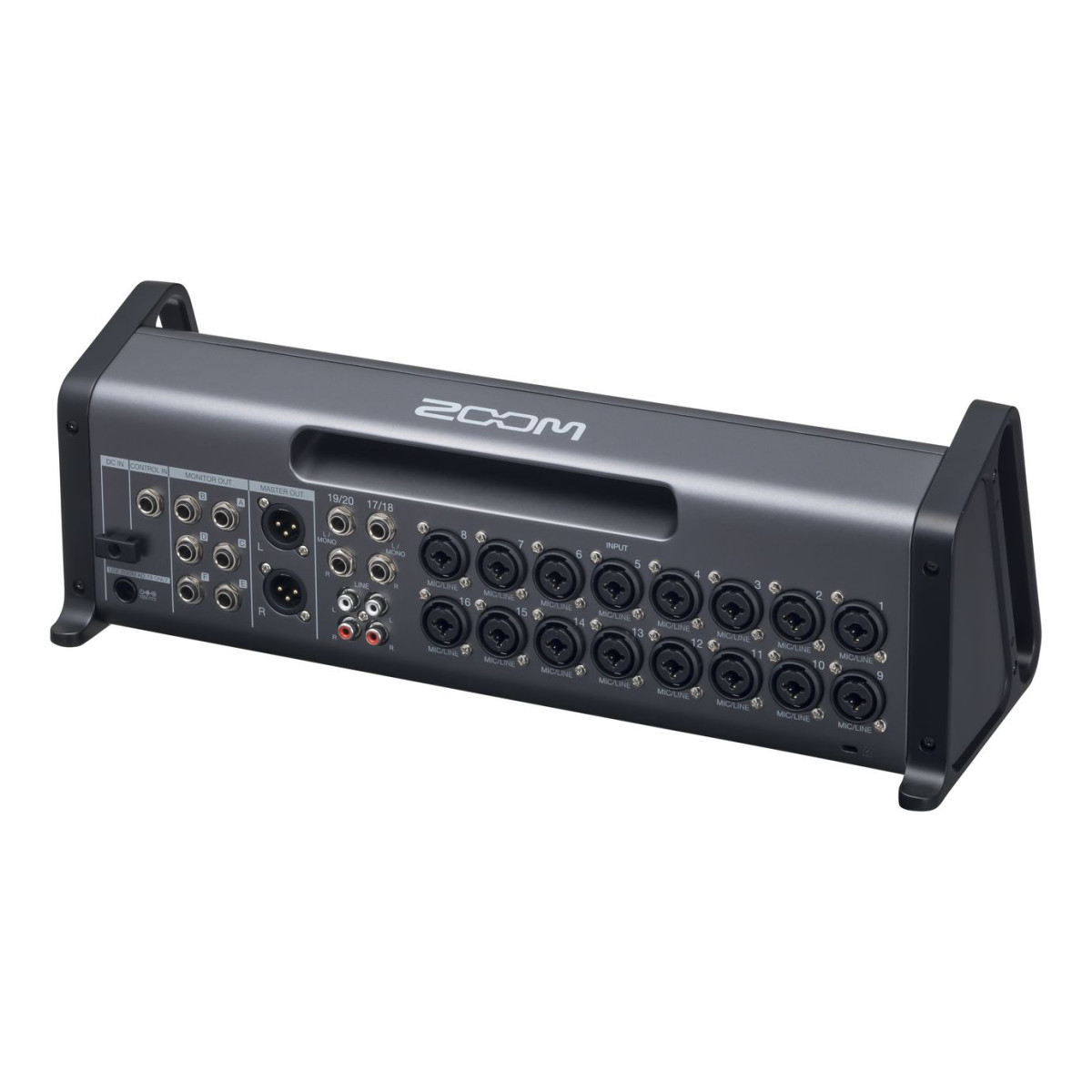

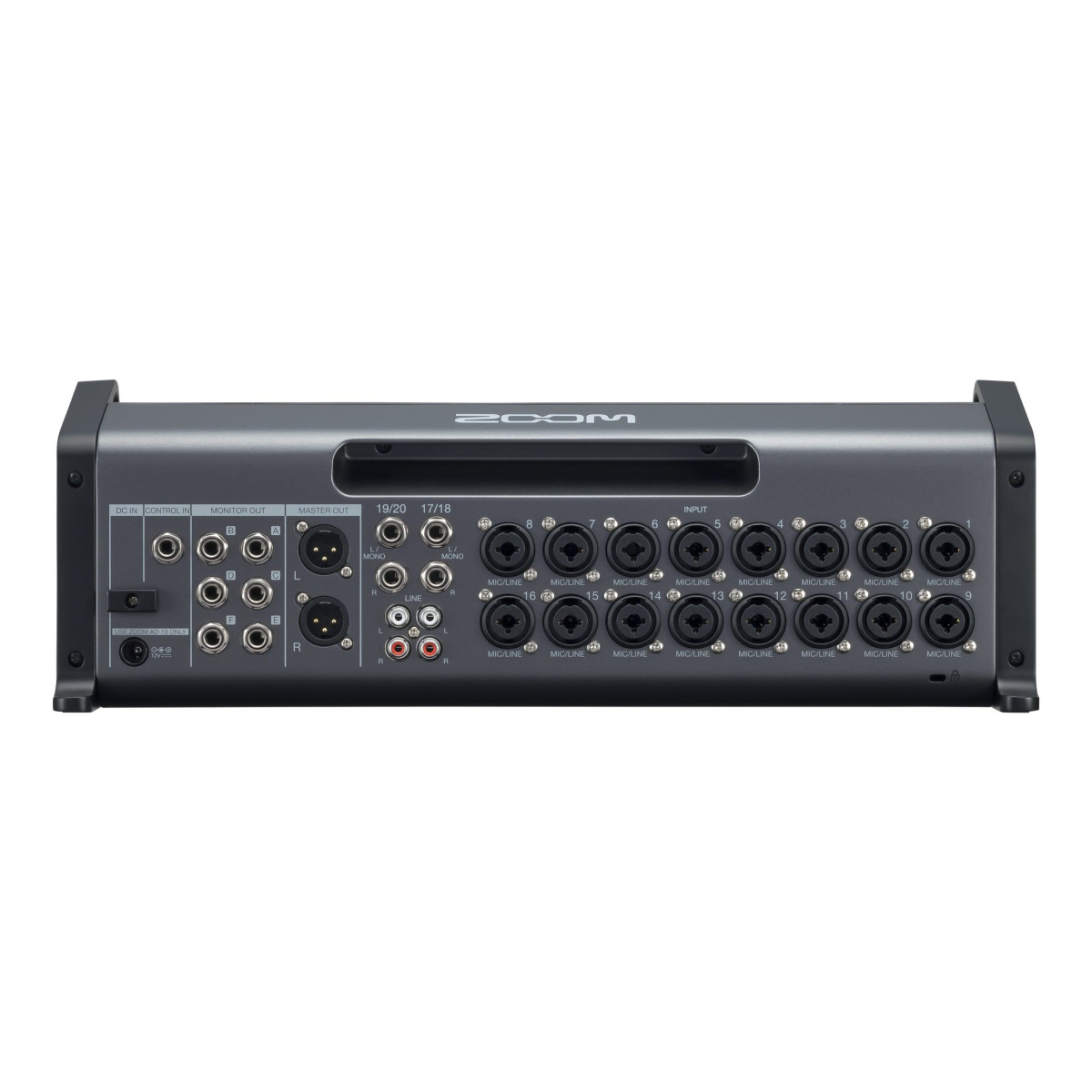

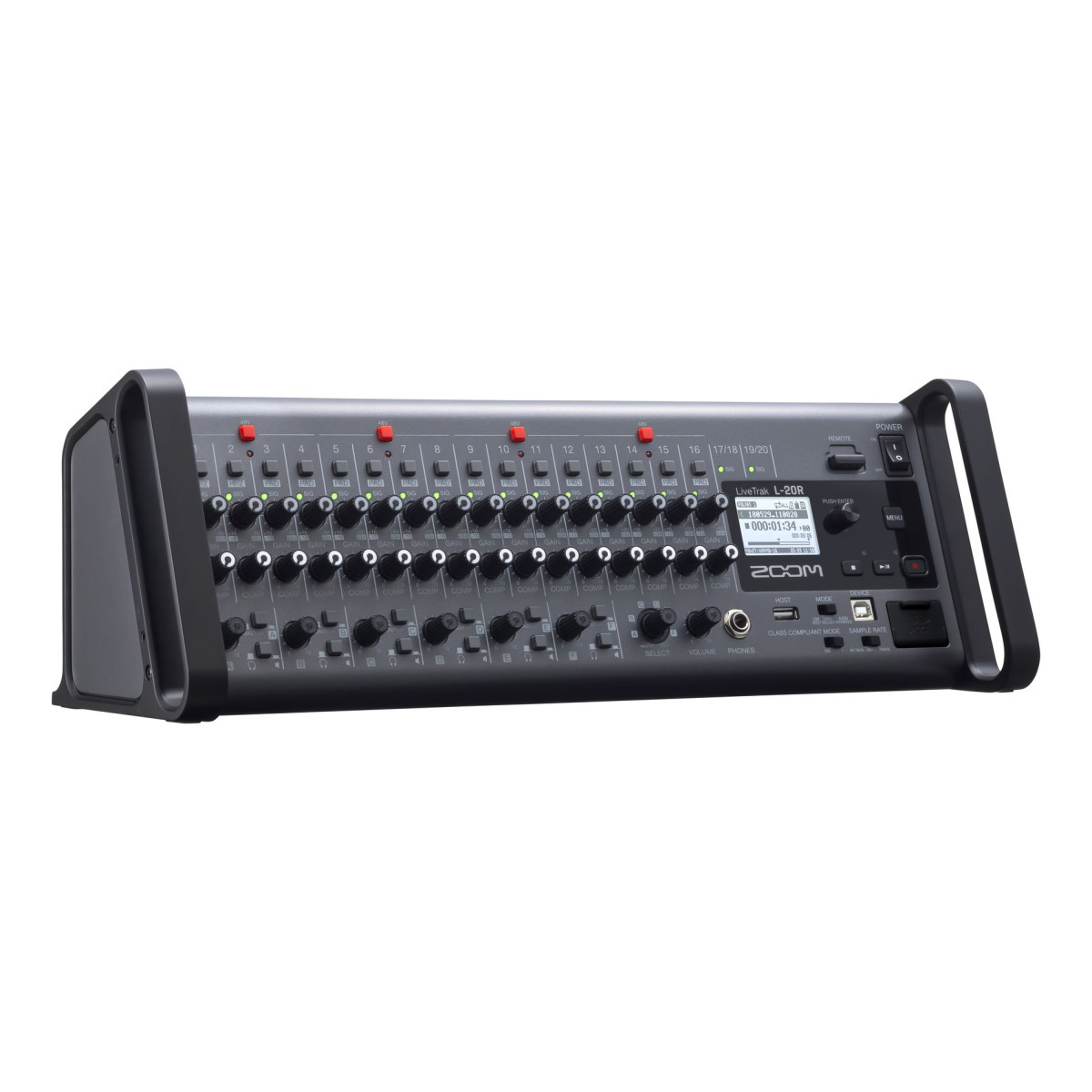

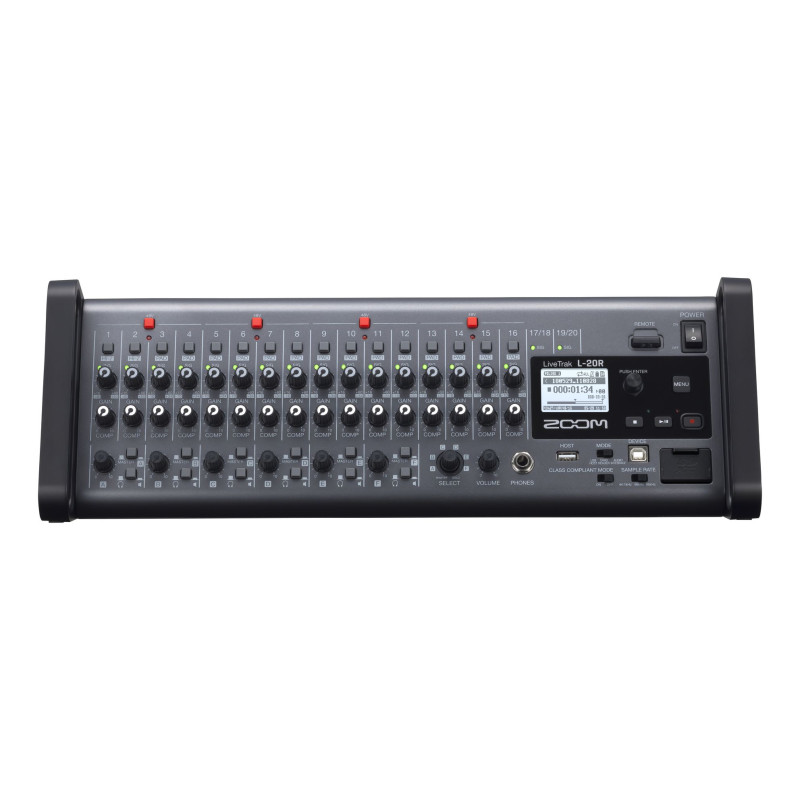

Zoom L-20R LiveTrak

The Zoom LiveTrak L-20R is a rack-mounted digital mixer that allows musicians to control their live mix from the stage using an iPad.

With wireless control, 20 channels, 22 recording tracks, and six personalized monitor mixes, the L-20R provides a comprehensive solution for any venue.

• 20 input channels: 16 mono and 2 stereo
• 16 combined XLR / TRS connections
• Stereo channels with 2 x 6.3 mm jack connectors and RCA
• Per channel: Gain control, 3-band EQ, pan, compressor, and two effects buses
• Hi-Z connections on channels 1-2
• 26 dB switchable pad for channels 3-16
• Low Cut per channel with adjustable range from 40 - 600 Hz
• 6 configurable monitor sends (6.3 mm jack)
• Monitor outputs configurable as headphone outputs or standard line-level outputs
• 20 built-in effects including Chorus, Delay, and Reverb
• USB audio interface with 22 inputs and 4 outputs
• Audio recording up to 24 Bit/96 kHz on SD media (max. 512 GB)
• Scene storage for up to 9 Mix scenes
• Compatible with Remote Mixer App for iPad
• Dimensions: 438 x 158.2 x 151.7 mm
• Weight: 2.49 kg
• Includes power supply (AD-19), Bluetooth adapter BTA-1, rack adapters, and quick start guide
