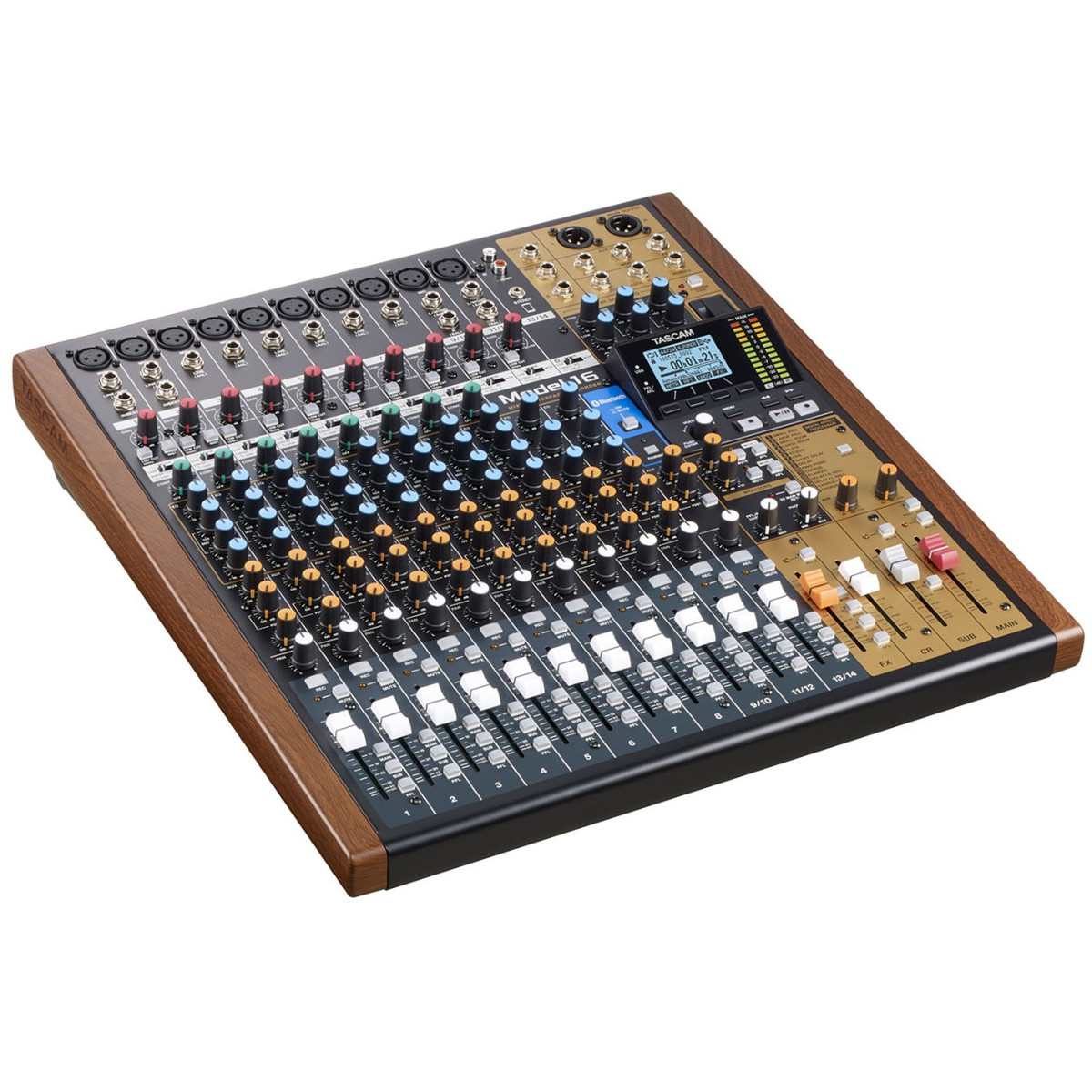

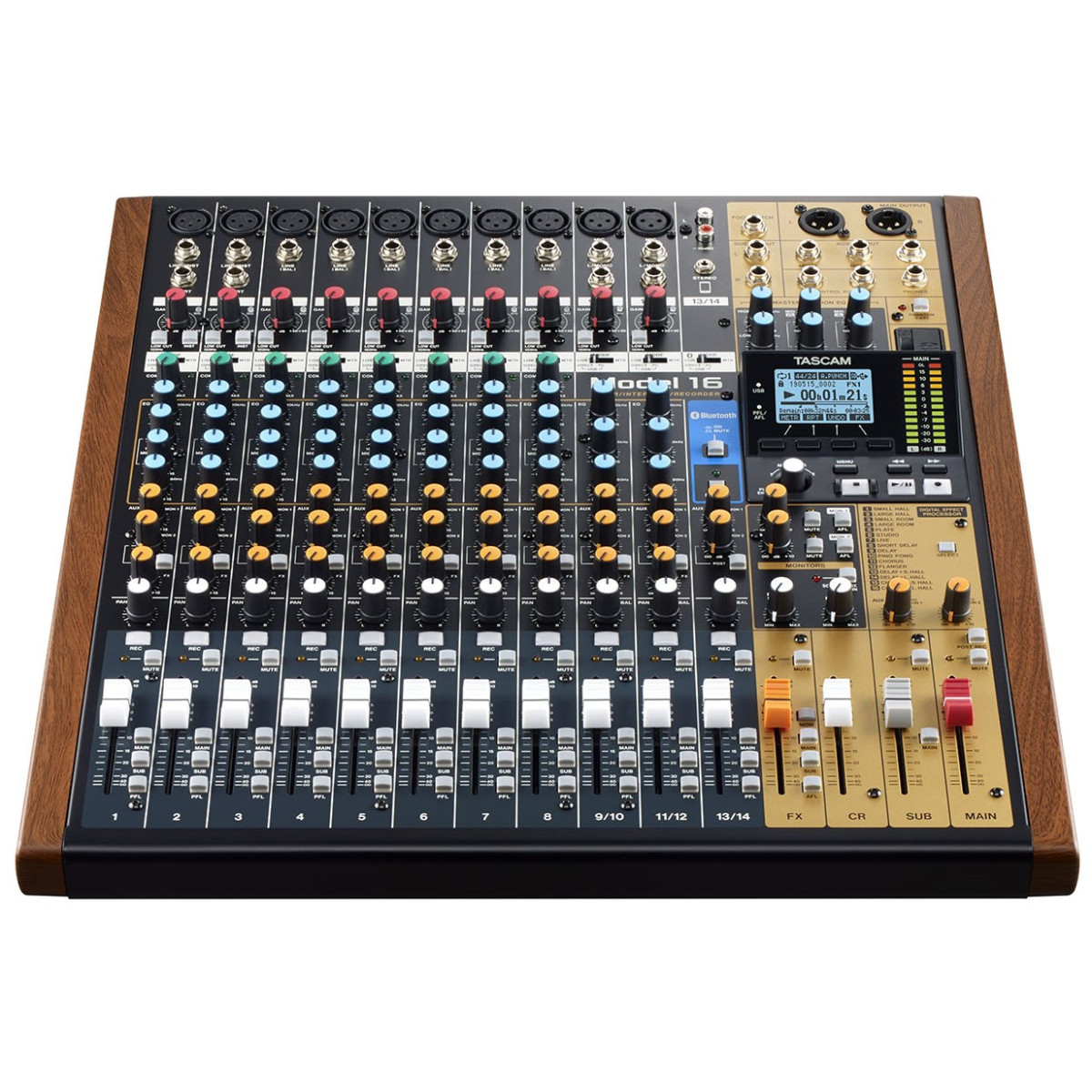

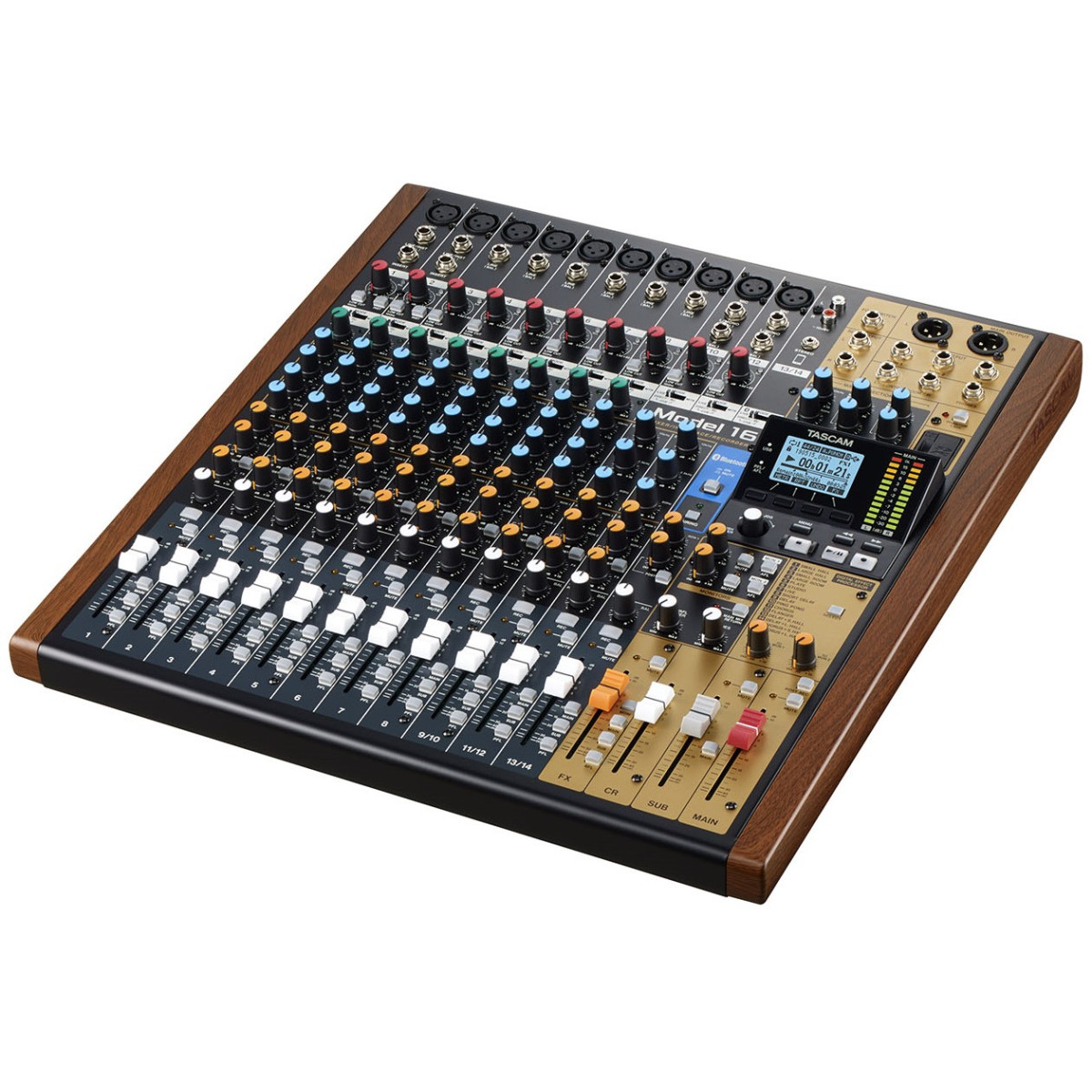

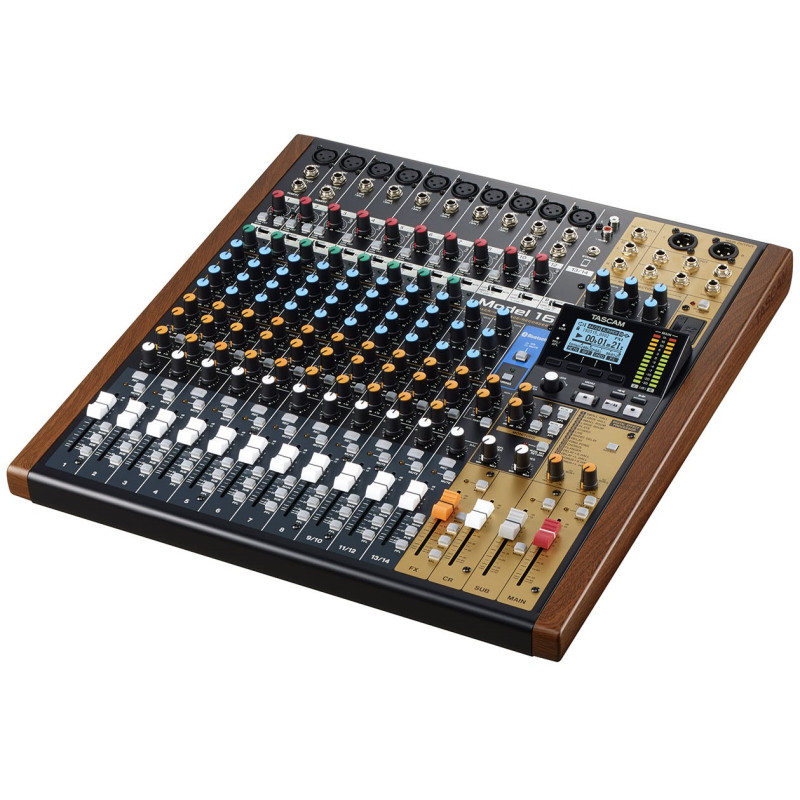

The Tascam Model 16 is an analog 14-channel mixer that integrates a multi-track digital recorder, a USB audio interface, and a effects processor. Its design combines the direct control of a traditional mixer with digital tools for recording rehearsals, live shows, music productions, podcasts, and other projects without the need for a computer.

Its built-in recorder allows simultaneous recording of all 14 input channels and the stereo mix onto an SD card, with a maximum resolution of 24 bits and 48 kHz. It also functions as a USB 16-in/14-out audio interface for working with a DAW, and features ten Ultra-HDDA microphone preamps, a compressor on channels 1 to 8, channel EQ, three auxiliary sends, 16 internal effects, and Bluetooth connectivity for wireless audio playback.

• 14-channel analog mixer
• Integrated multi-track digital recorder up to 16 tracks
• USB 2.0 audio interface with 16 inputs and 14 outputs
• Stand-alone recording without a computer
• Simultaneous recording of 14 input channels and stereo mix
• Recording resolution of 16 or 24 bits
• Sample rates of 44.1 and 48 kHz
• WAV BWF format recording
• Compatible with SD, SDHC, and SDXC cards up to 512 GB
• Requires Class 10 or higher cards
• Ten balanced XLR microphone inputs
• Ten Ultra-HDDA microphone preamps
• 48 V phantom power
• Twelve balanced line inputs
• Channels 1 and 2 compatible with high-impedance instrument signals
• Insert points on channels 1 and 2
• Stereo input via RCA or 3.5 mm mini-jack connectors
• Built-in Bluetooth 5.0 receiver for wireless playback
• Source selector for Live, PC, or MTR on each channel
• Single-knob compressor on channels 1 to 8
• High-pass filter at 100 Hz
• Three-band EQ per channel
• Adjustable mid frequencies on the eight mono channels
• Internal processor with 16 effects types
• Includes effects such as reverb, delay, chorus, and flanger
• Three auxiliary sends for monitors and effects
• Stereo Main, Sub, and Control Room outputs with independent controls
• Balanced XLR main outputs
• Balanced TRS outputs for Sub, Control Room, Monitor, and effects
• Headphone output with volume control
• 60 mm faders
• Master four-band EQ
• Overdub and punch-in/out recording functions
• Compatible with optional Tascam RC-1F control pedal
• Tascam Model Mixer Settings Panel app with digital meters
• Compatible with streaming programs like OBS Studio
• Optional 19-inch rack mounting kit available
• Internal power supply
• Power consumption: 40 W
• Dimensions: 430 x 463 x 113 mm
• Weight: 7 kg

Our Opinion

The Tascam Model 16 is a highly versatile solution for bands, rehearsal spaces, small studios, and musicians seeking straightforward recording. It functions as a traditional analog mixer, records each channel separately onto an SD card, and later transfers the tracks to a computer for detailed editing.

The main advantage is combining a mixer, recorder, and interface in a single unit without complicating the workflow. Physical controls, compressors, and channel EQs allow quick adjustments, while various monitoring and routing options make it suitable for both recording sessions and live performances.
