Strymon El Capistan V2

The new El Capistan now features a USB-C port for firmware updates and a robust MIDI implementation that allows for MIDI clock synchronization, storage of up to 300 presets, and bidirectional MIDI communication via the TRS MIDI jack; a new high-quality JFET input circuit, with stereo inputs/outputs and its corresponding rear panel selector, guarantees maximum tonal response and tactile feel. Meanwhile, the new high-performance ARM processor delivers incredible processing power while consuming less energy than previous versions.

The user interface has been redesigned for easier, more precise, and more in-depth adjustment of the most important parameters. A dedicated, fully independent spring reverb level control has been added, which is more powerful than it might seem at first glance. This effect was redesigned in the original El Capistan and was hidden in secondary functions, but it is now a key part of the pedal’s operation, offering a wide range of new sounds previously unavailable!

• Tape Echo effect for electric guitar
• Detailed replica of a vintage tape echo
• 3 different tape echoes: 'Fixed', 'Multi', and 'Single'
• 3 echo modes: A, B, and C
• Spring reverb control knob for the recently added spring reverb
• Full MIDI integration via TRS-MIDI or USB-C MIDI
• Up to 300 presets stored via MIDI
• Premium analog 'Front End' with JFET technology
• New 520 MHz Superscalar ARM processor
• 24-bit AD/DA converter at 96 kHz

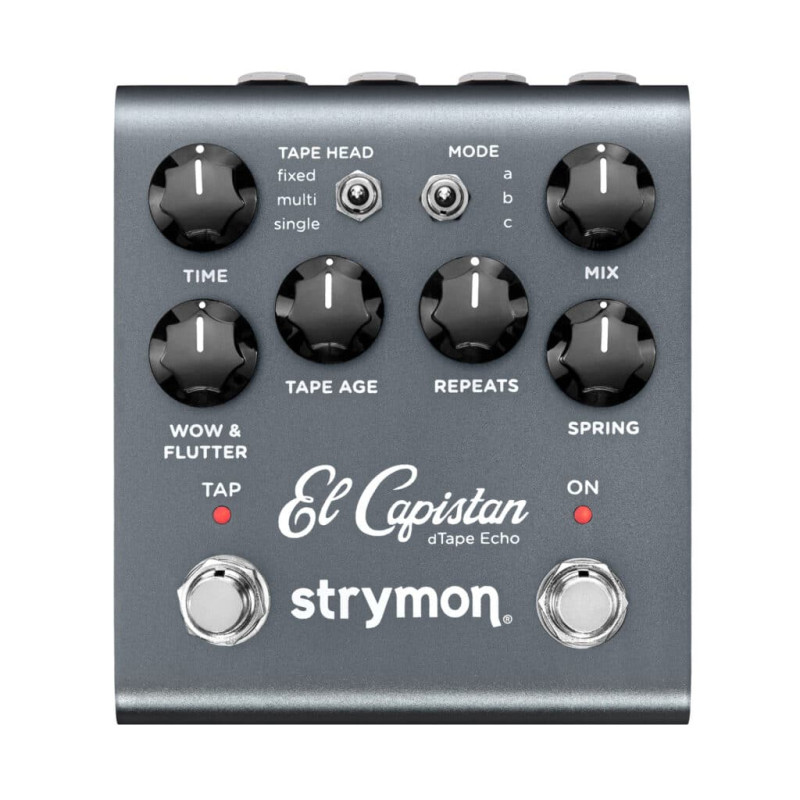

• Controls: 'Time', 'Wow & Flutter', 'Tape Age', 'Repeats', 'Mix', and 'Spring'

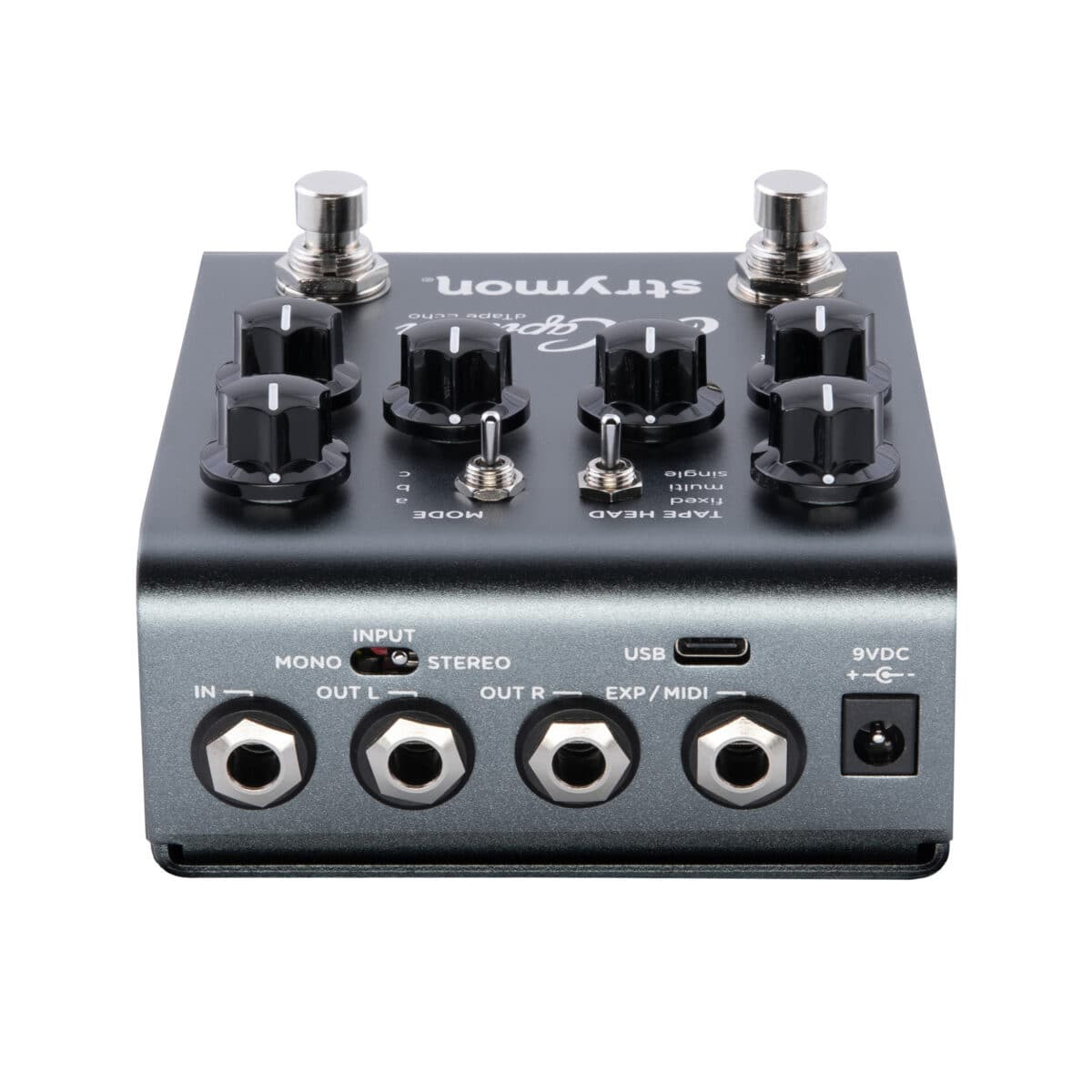

• Switches: Tape head, Mode, and Mono/Stereo
• LEDs: 'Tap' and Effect On
• Pedal switches: 'Tap' and Effect On
• Input (1/4" TRS jack)
• L/R Output (1/4" jacks)
• EXP/MIDI (1/4" TRS jack)
• USB-C
• Power supply input with 5.5 x 2.1 mm barrel connector, center negative
• Power consumption: 300 mA
• 9 V DC power supply included
• True Bypass
• Dimensions (W x D x H): 102 x 114 x 44 mm
• Made in the United States
