Electro-Harmonix MOP-D10

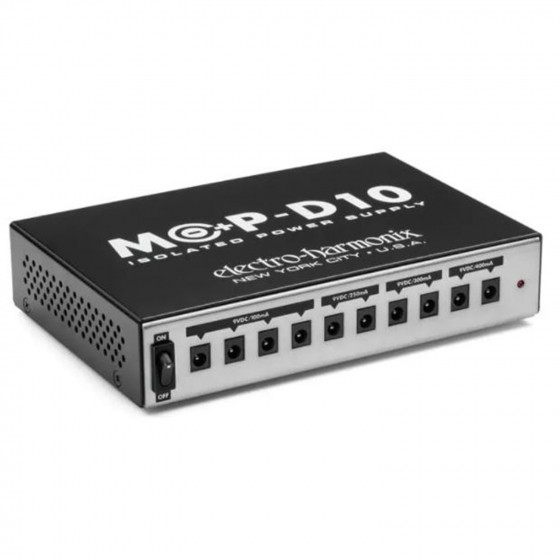

Electro Harmonix MOP-D10.
- Isolated power output connectors
- Accessories included
- 10 outputs at 9V

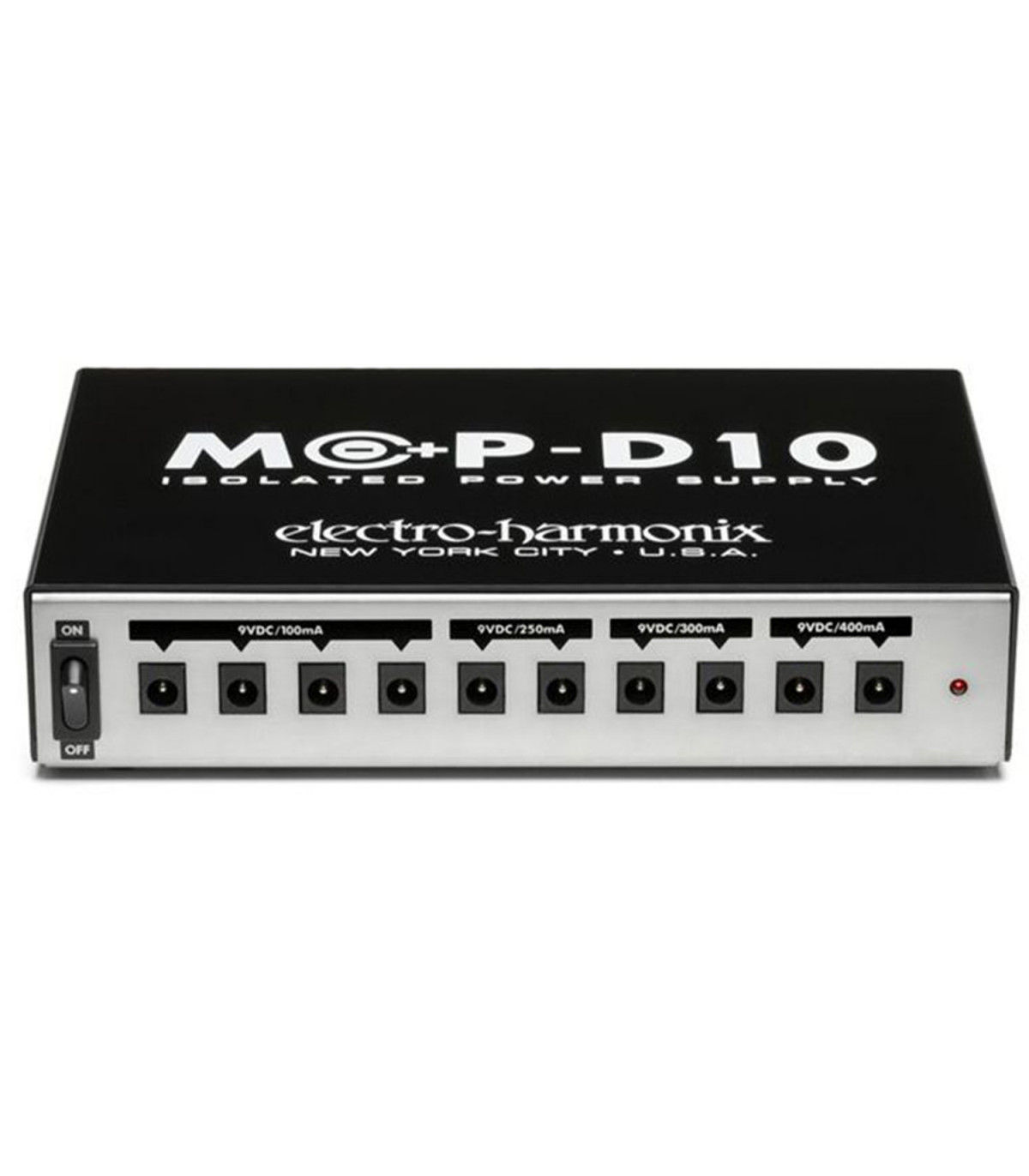

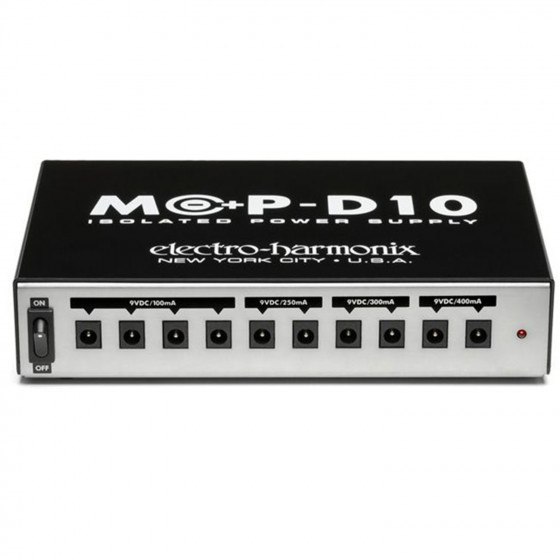

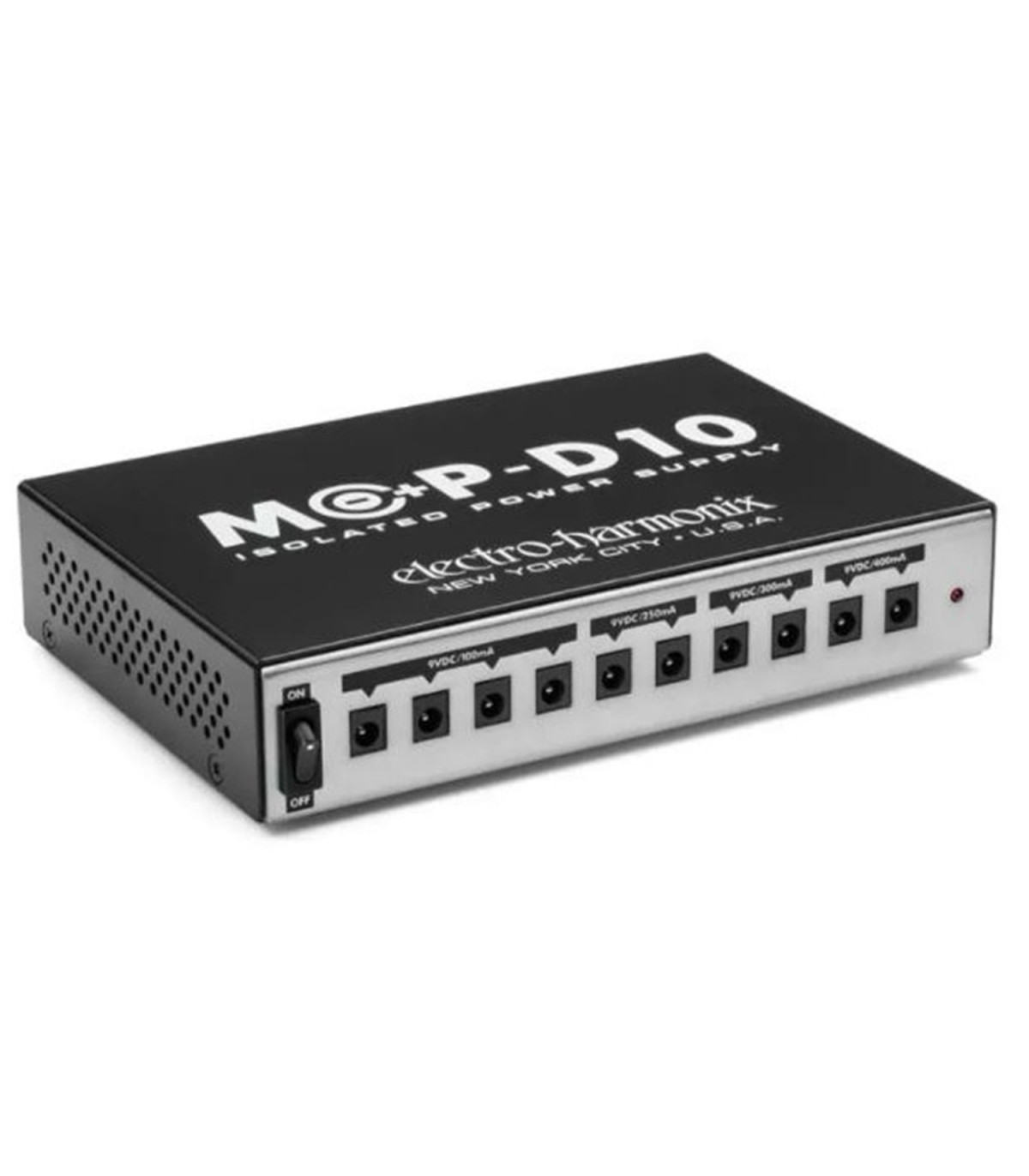

The MOP-D10 is a multi-output power supply engineered by EHX engineers to provide noise-free pedal operation. It features ten isolated 9 VDC outputs capable of handling the most common power requirements: 4x100mA, 2x250mA, 2x300mA, and 2x400mA.

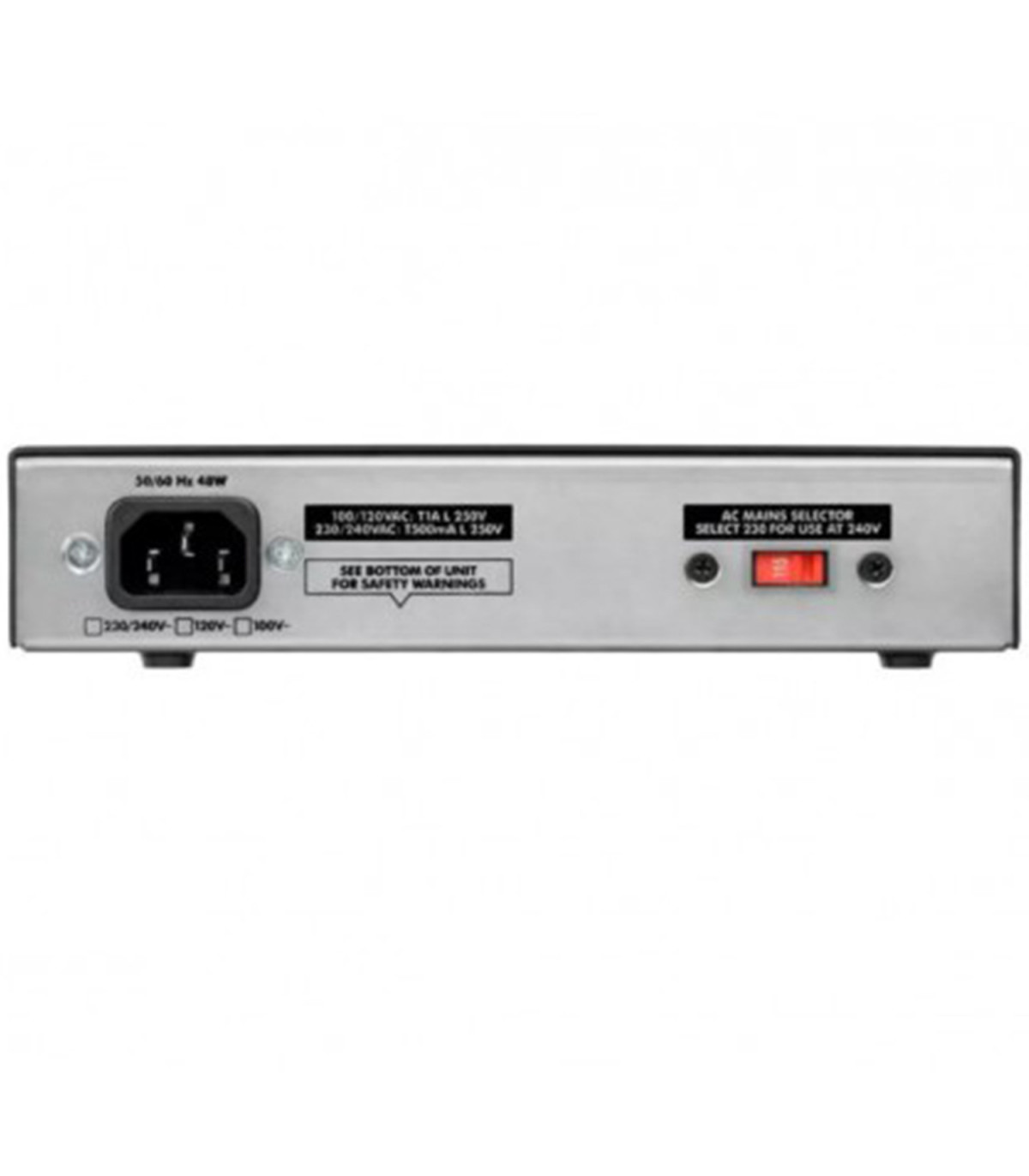

From its premium analog power path with low-noise linear regulators to its custom toroidal transformer, the MOP-D10 is designed to enable pedal users to achieve a sonically pure signal chain. Unlike many other multi-output power supplies that rely on switched-mode power conversion, the transformer-based power conversion of the MOP-D10 is significantly less susceptible to spurious noise that can infiltrate the audio path. A switchable AC voltage selector also ensures that the MOP-D10 can be used worldwide with a range of voltages.

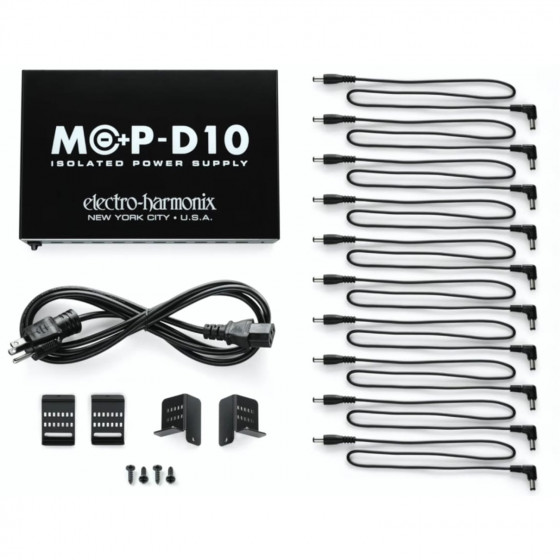

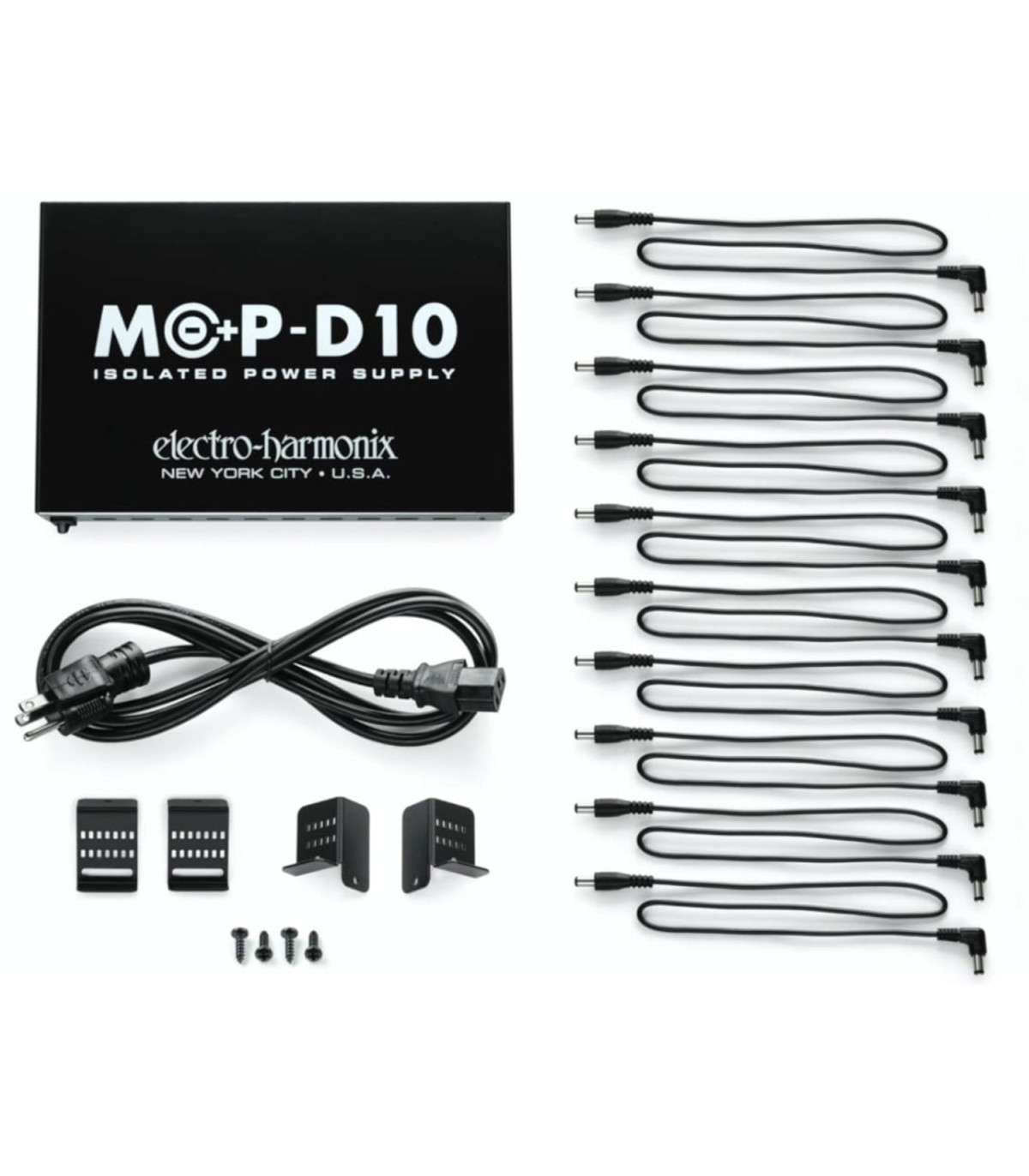

Each of the MOP-D10's outputs is center negative, and all output power connectors are isolated from each other. The dimensions of each output connector are 5.5 mm x 2.1 mm. The unit comes with a 6′ detachable power cable and ten 24″ DC power cables with one straight and one angled connector. It also includes mounting hardware for pedalboard installation.
- Power up to ten 9V pedals
- Noise-free operation
- 4 isolated 100mA outputs
- 2 isolated 250mA outputs
- 2 isolated 300mA outputs
- 2 isolated 400mA outputs

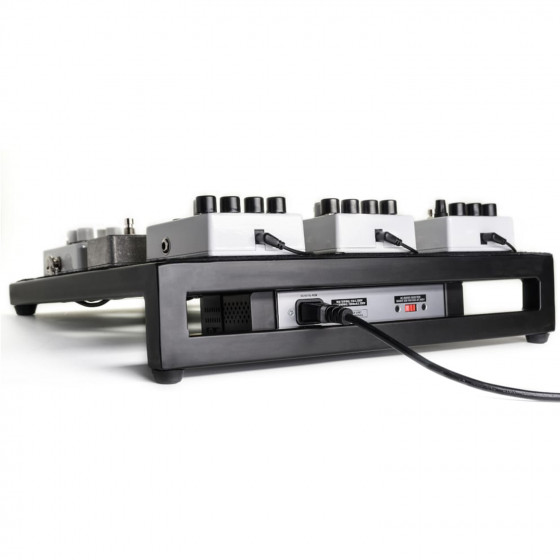

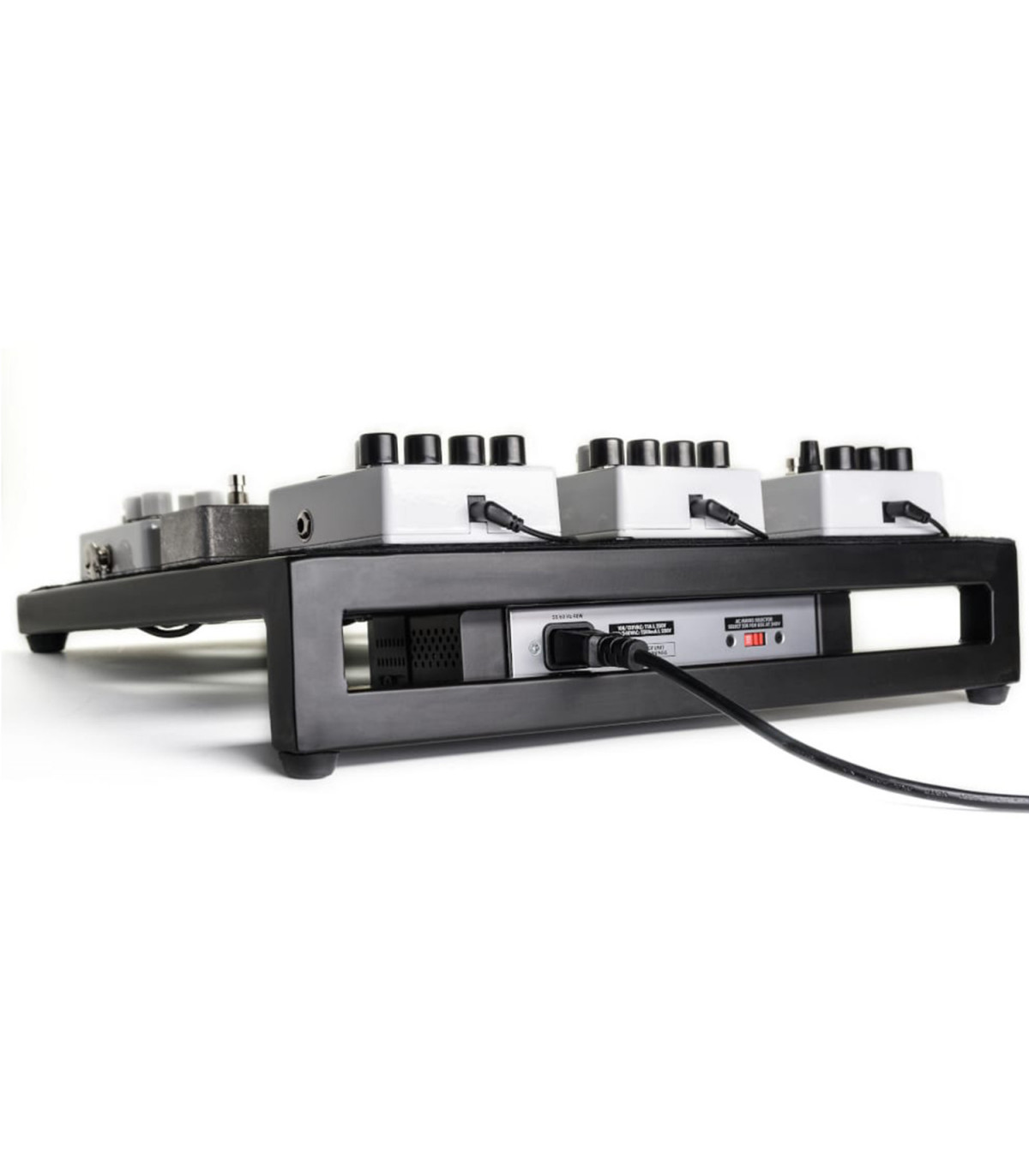

- Includes mounting hardware for pedalboard setup
- Includes pedal power cables
About Electro Harmonix.
Electro Harmonix is one of those legendary companies that has remained a strong presence in the market since 1968, when guru Mike Matthews founded the brand in New York City.
Mike balanced his work at IBM with building pedals in his garage, creating effects pedals for many years. His first design was the LPB-1, a very simple booster-line driver that quickly gained fame.
In the early 1980s, Electro Harmonix was forced to close due to the influx of Asian companies like Roland/Boss, Ibanez, and Tokai entering the musical instrument market. Fortunately, it made a comeback years later by reissuing its classic designs under a new phase of the company, renamed by Mike as New Sensor.
Since its inception, the factory has specialized in effects pedals, attracting prominent musicians such as Carlos Santana, Kurt Cobain (Nirvana), Jonny Greenwood (Radiohead), Jimi Hendrix, Robert Fripp (King Crimson), Billy Corgan (The Smashing Pumpkins), Jack White (The White Stripes), John Frusciante (Red Hot Chili Peppers), The Edge (U2), Cliff Burton (Metallica), David Gilmour (Pink Floyd), and Alex Turner (Arctic Monkeys).
EAN13: 0683274012032
