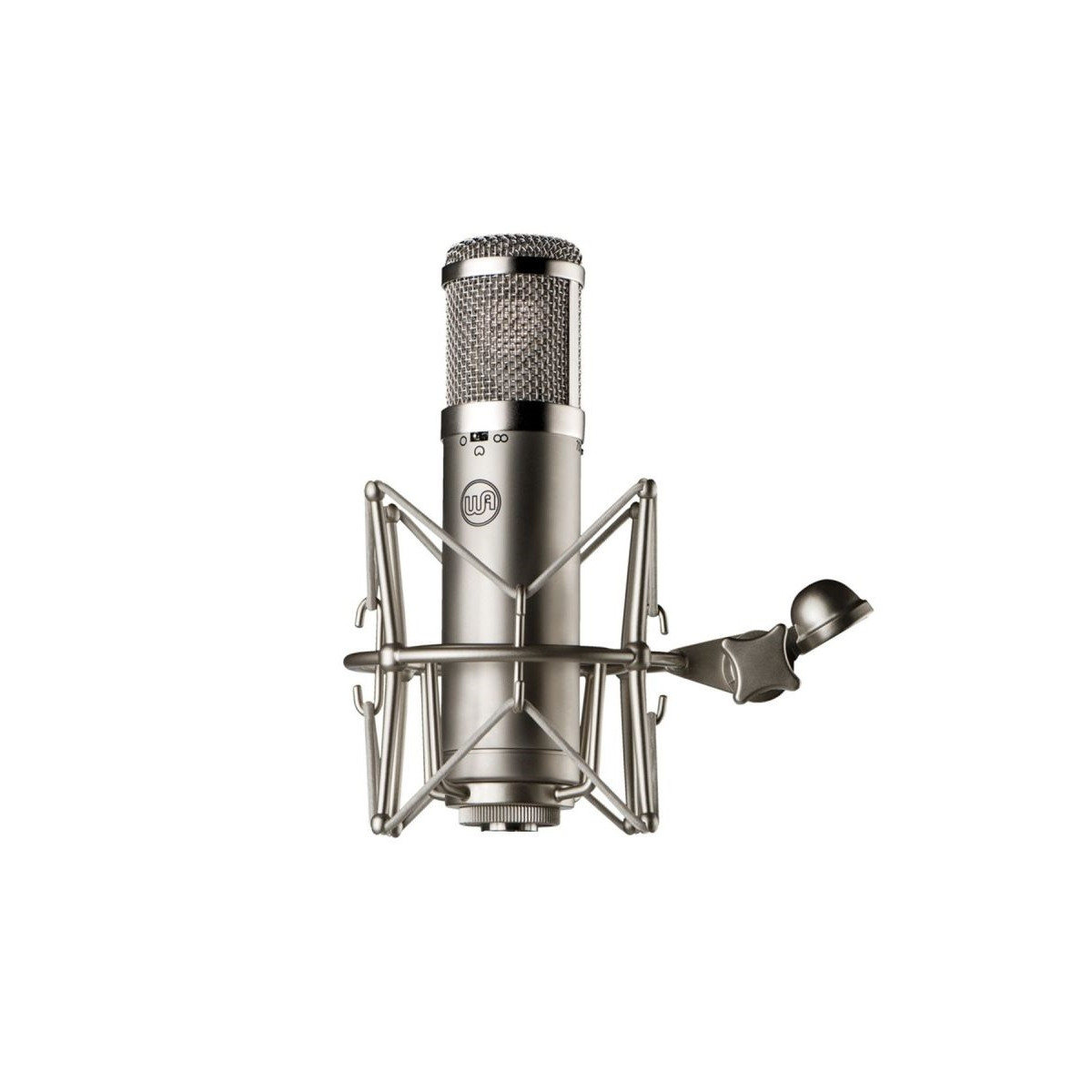

Large-diaphragm condenser microphone, WA-47 Jr.
- Classic 47 microphone FET version without transformer
- Double large-diaphragm capsule, gold-sputtered
- Polar patterns: Cardioid, figure-eight, and omnidirectional
- Frequency response: 20Hz - 20kHz
- Includes shock mount, hard mount, and zippered storage pouch
- Weight: 0.5 kg
The WA-47jr is a modern take on the legendary vintage-style 47 studio microphone, delivering rich analog sound with updated circuitry. The WA-47jr is equally suited for project studios or high-end recording setups. It features a K47-style capsule, the same design used in the original vintage mics that captured iconic recordings by artists like Billie Eilish, Harry Styles, Adele, and many more.
- Dual large-diaphragm capsule, gold-sputtered
- Polar patterns: Cardioid, figure-8, and omnidirectional
- High-pass filter: 70 Hz
- Pad: -10 dB
- Dynamic range: 138 dBA
- Max SPL: 147/157 dB (at 1 kHz, 1 kOhm, 0.5% THD, 0/-10 dB)
- Frequency response: 20 Hz – 20 kHz
- Output impedance: 100 Ohms
- Max output: 16 dBu at 1 kHz, 1 kOhm, 0.5% THD
- Requires 48 V phantom power
- Includes shock mount, hard mount, and zippered storage pouch
- Dimensions: 52 x 210 mm (diameter x length)
- Weight: 0.5 kg
The WA-47 faithfully reproduces the K47-style capsule from the original tube 47 microphone. Ideal for recordings where vintage character is essential.

Three polar patterns (cardioid, omnidirectional, and figure-8) provide a variety of options for capturing stereo sound and rejecting unwanted noise.

A selectable -10 dB pad allows the 47jr to handle sound pressure levels up to 157 dB, making it easy to capture loud sources.

The switchable 70 Hz high-pass filter helps eliminate unwanted low-frequency rumble from sources before recording.
