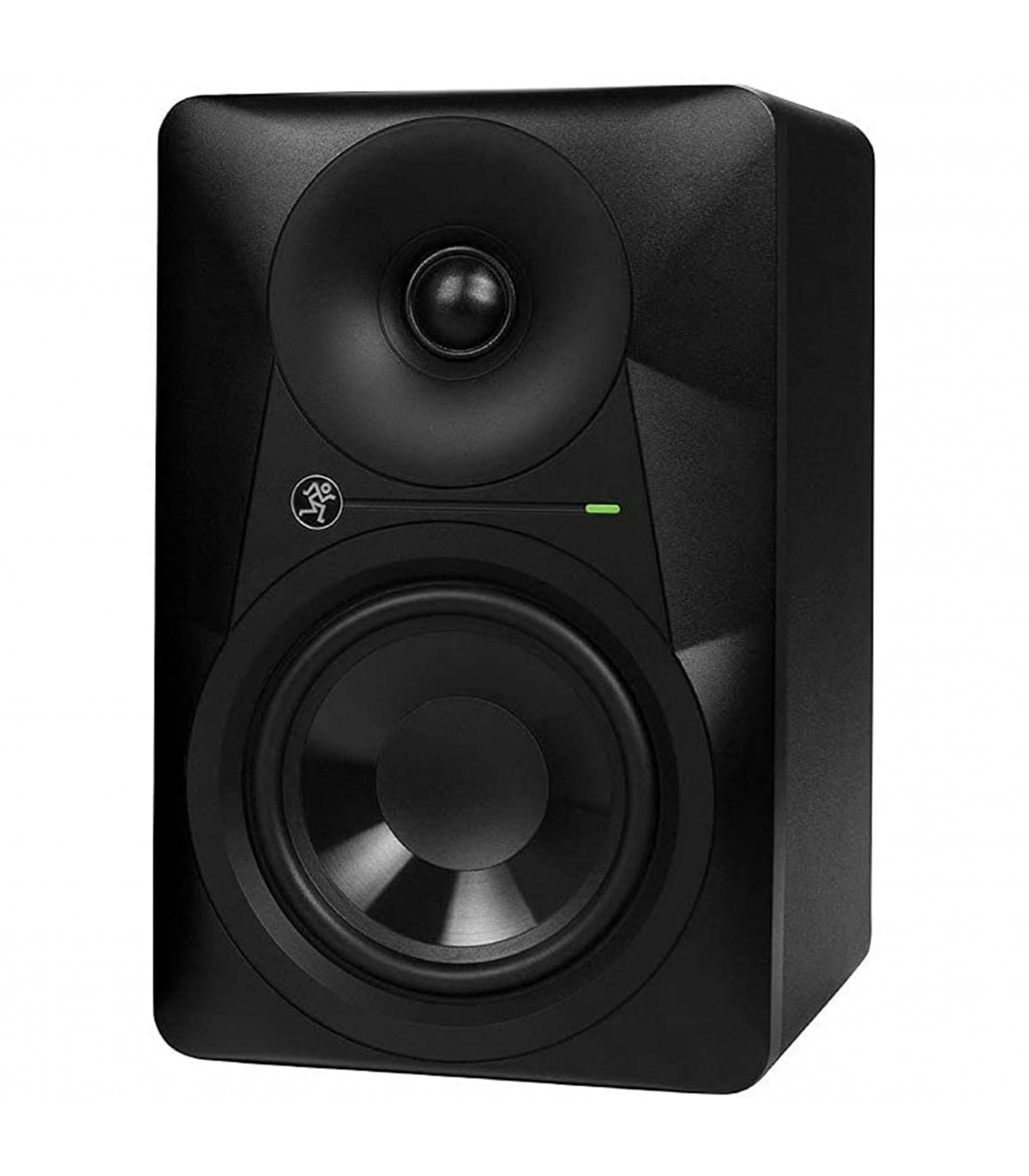

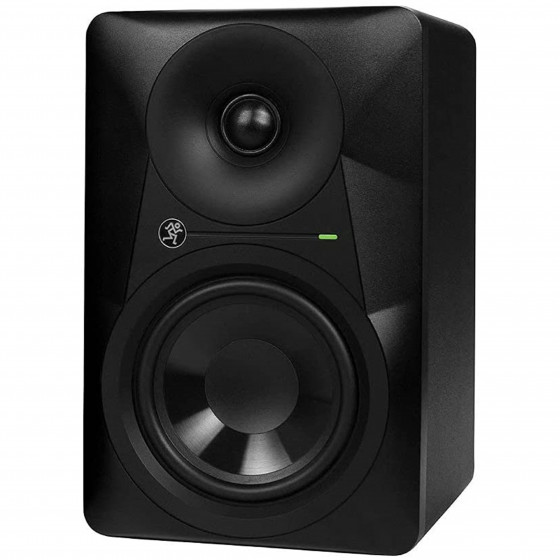

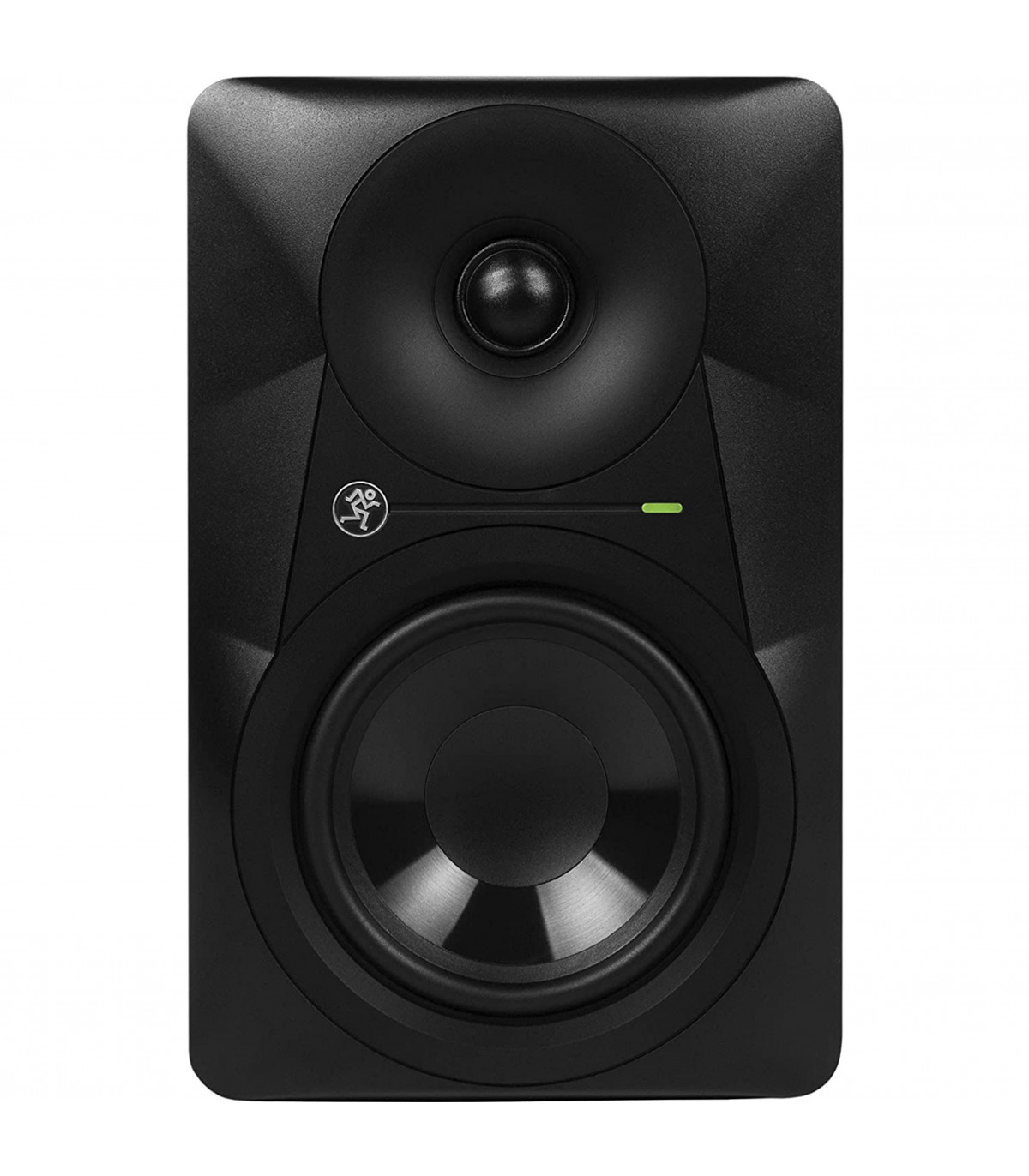

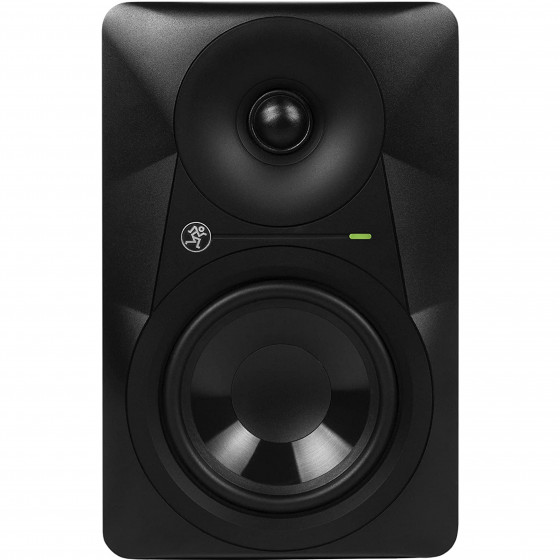

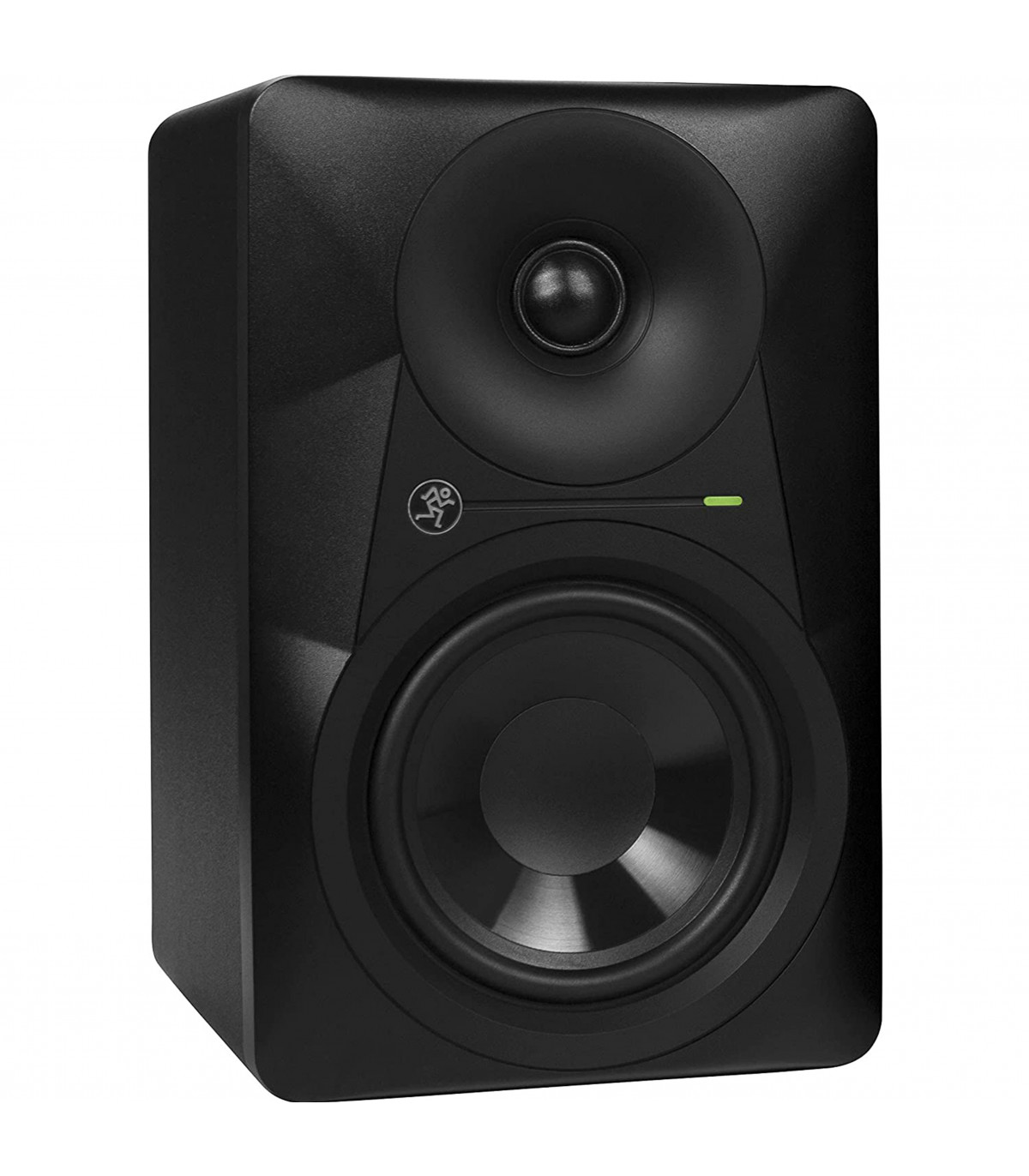

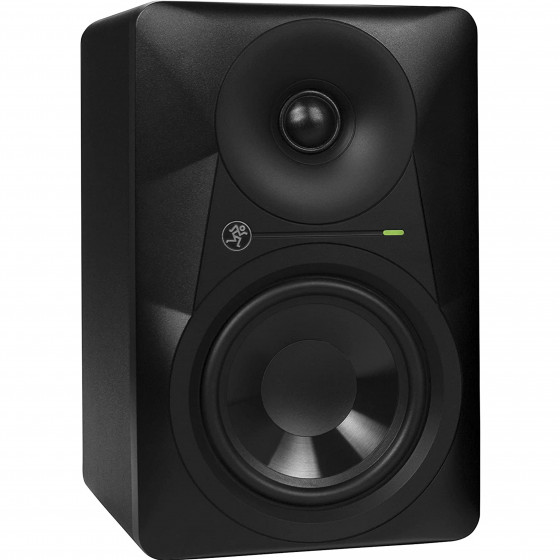

Mackie MR524 Active Studio Monitors
Reference:
055141
Add to compare
(0)
- Adjustable to three different acoustic spaces
- Adjustable low-pass filter
- Balanced XLR input
- TRS balanced/unbalanced input
- Unbalanced RCA input
- Power supply via IEC cable (included)
- The logarithmic waveguide provides wide dispersion and balanced sound
- 5" woofer and 1" tweeter for dynamic and clear LF response
- The adjustable acoustic space and HF filters deliver optimal performance
- From September 12, 2019, includes ProTools and 23 additional plugins and instruments
- 50W RMS / 100W monitor with 5.25" woofer
The MR524 powered monitor offers professional performance, clarity, and perfect fidelity in mixing, allowing the user to listen with confidence that their mix will sound good on any other system. Thanks to Mackie's extensive experience in monitor design, the MR524 is precisely tuned to deliver the most realistic mix, whether it's dialogue, hip hop, rock, or any other genre.
- Frequency response (-3 dB): 57Hz - 20kHz
- Frequency response (-10 dB): 45Hz - 20kHz
- Maximum SPL peak: 102 dB SPL @ 1m
- Maximum SPL per pair: 108 dB SPL @ 1m
- Low-frequency driver: 5.25" polypropylene woofer
- High-frequency driver: 1" silk dome tweeter with neodymium magnet
- Low-frequency power: 30W RMS, 60W Peak, 4Ω Load
- High-frequency power: 20W RMS, 40W Peak, 6Ω Load
- Type: Monolithic IC, class AB with DMOS power stage
- Crossover type: 24 dB/Octave
- Crossover frequency: 2kHz
- Sensitivity: +4 dBu at 300Hz for full output
- Input impedance: 20kΩ balanced bridge, 10kΩ unbalanced
- High-frequency EQ: ±2 dB @ 3kHz and above

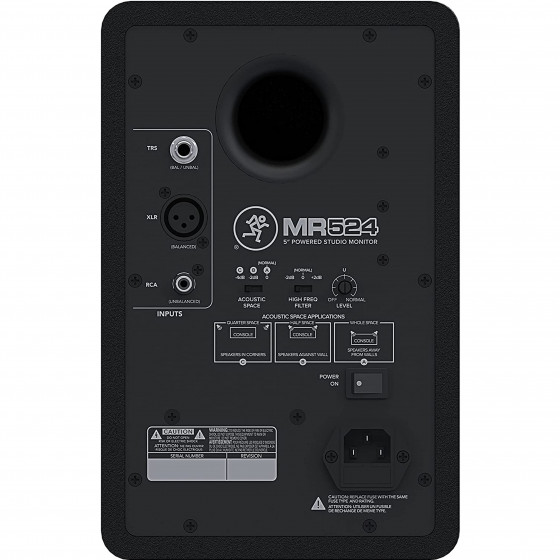

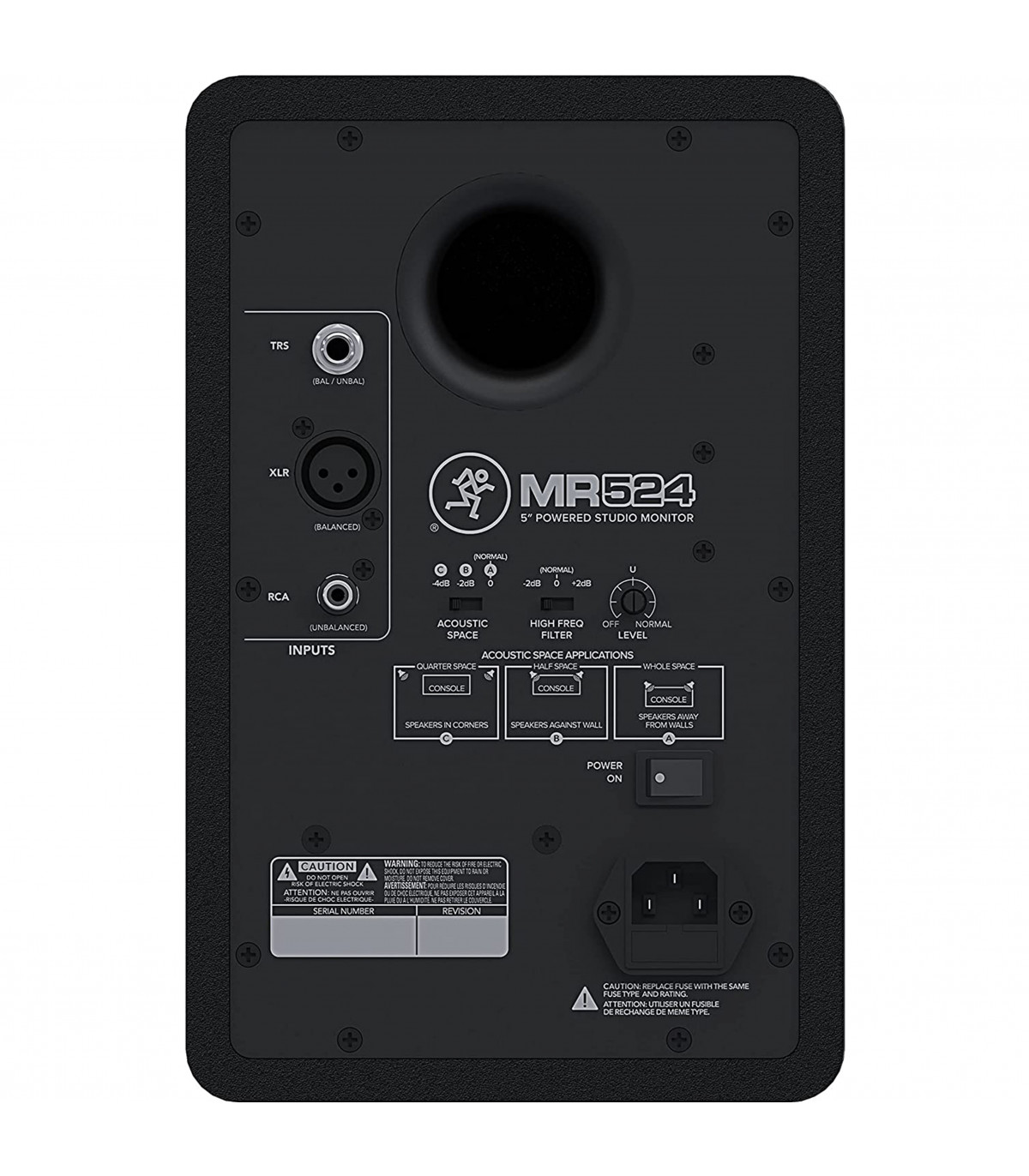

- Inputs: 1x TRS balanced/unbalanced, 1x XLR balanced, 1x RCA unbalanced
- Power requirements
- 120V: 60Hz
- 220V - 240V: 50/60Hz
- 100V: 50/60Hz
- Power consumption: 90W with music, loud mix; 10W in standby
- Enclosure: 12 mm thick MDF with 21 mm front panel MDF
- Damping: Adiabatic damping
- Weight: 4.6 kg
- Dimensions
- Height: 281 mm
- Width: 180 mm
- Depth: 221 mm
EAN13: 0663961052275
--
