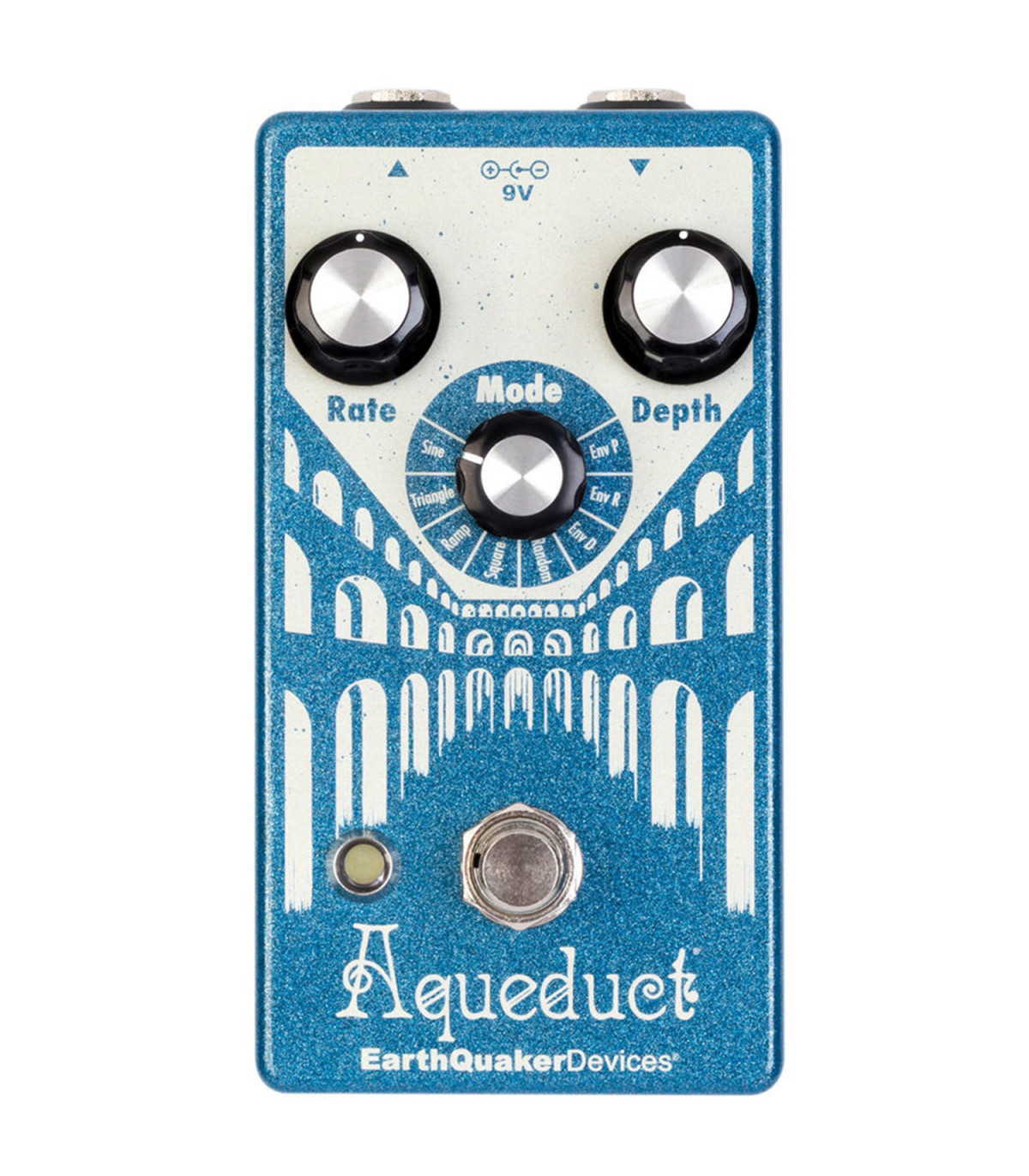

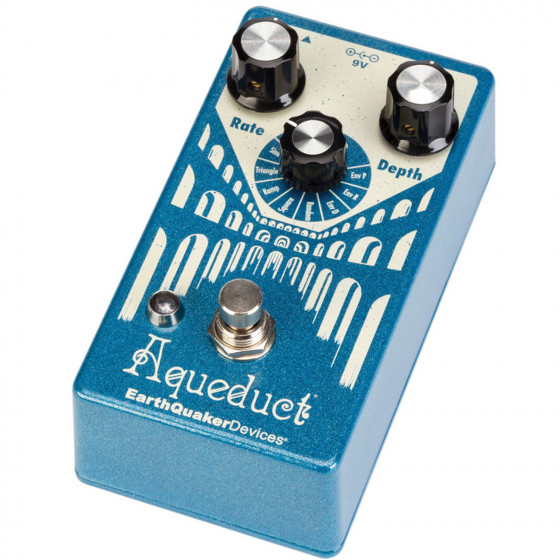

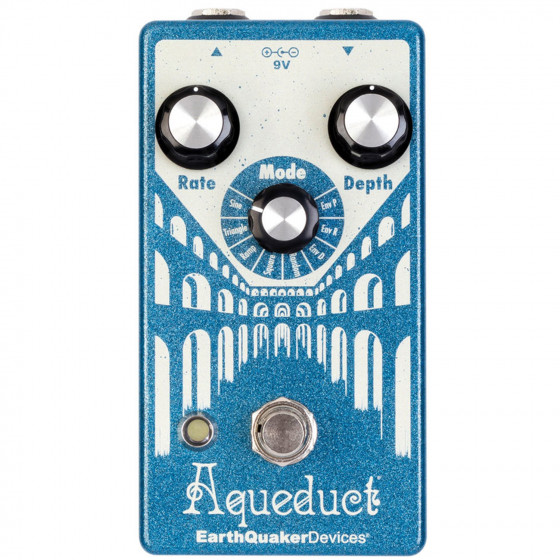

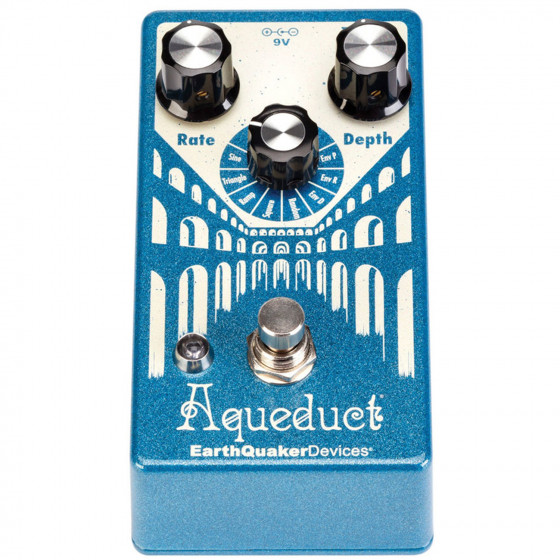

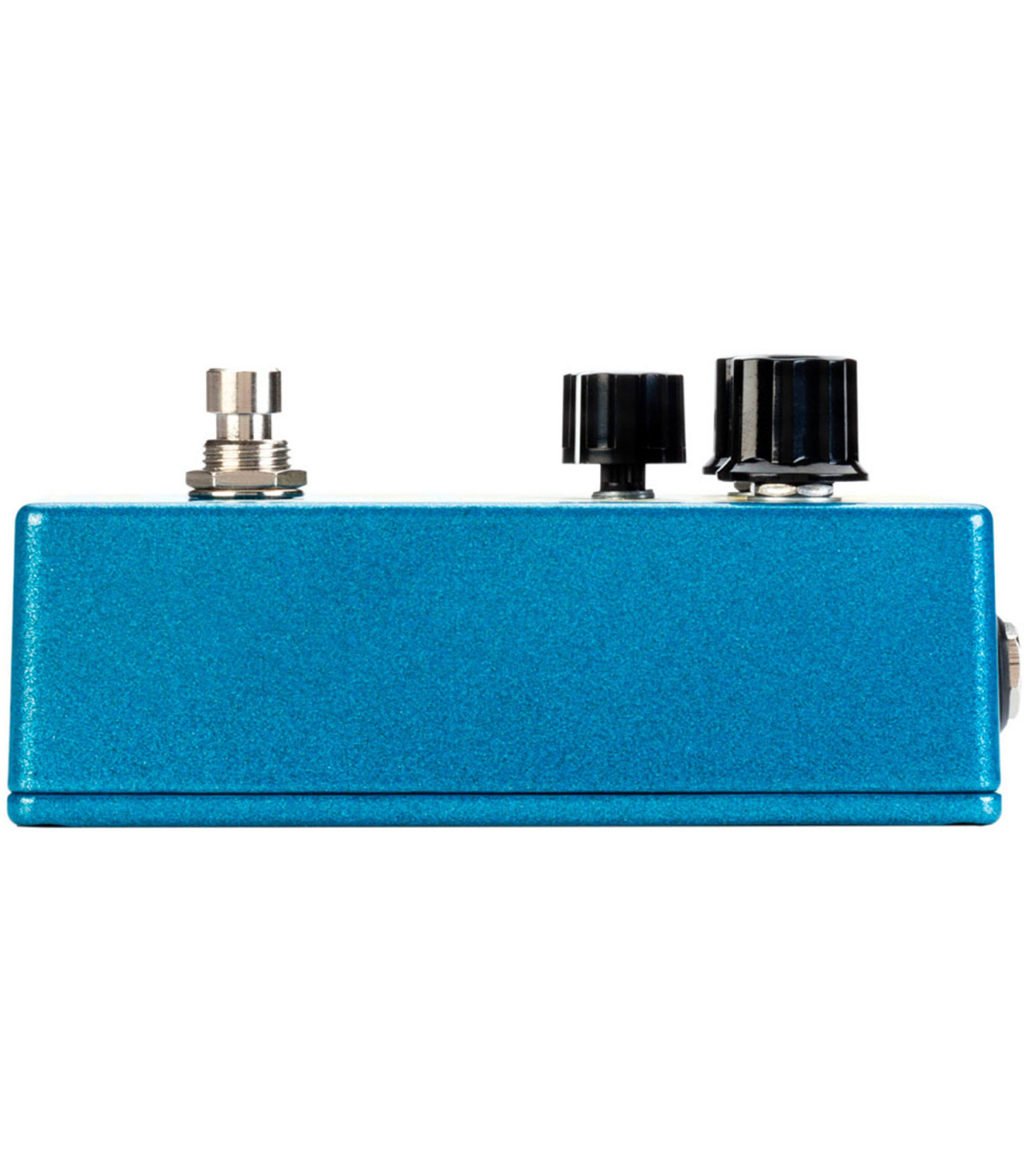

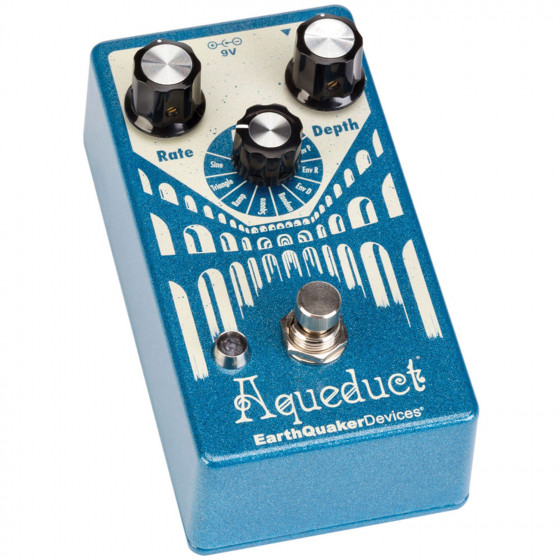

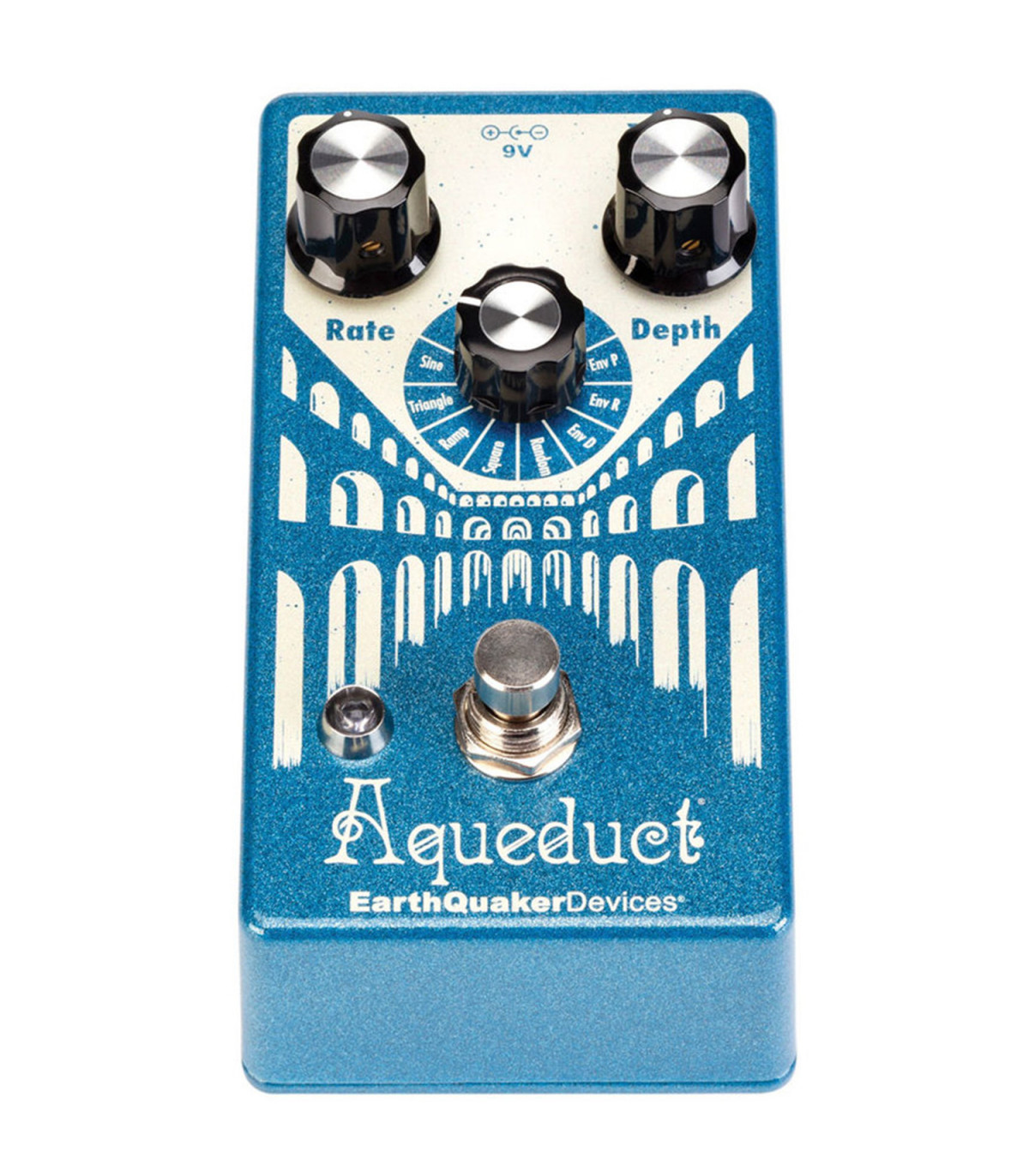

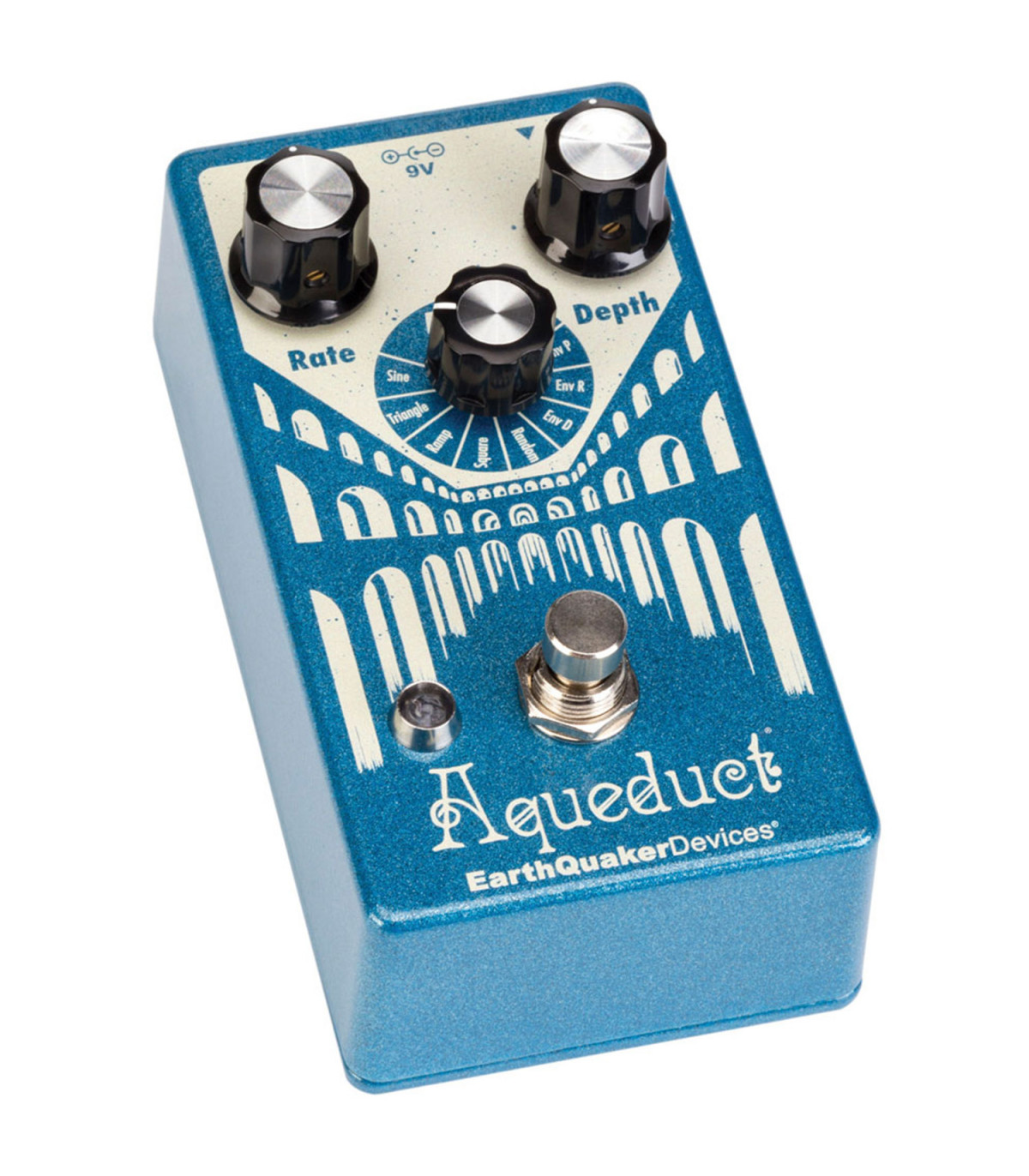

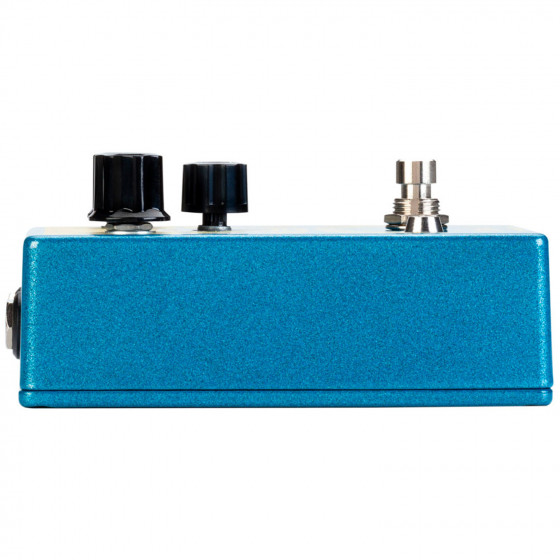

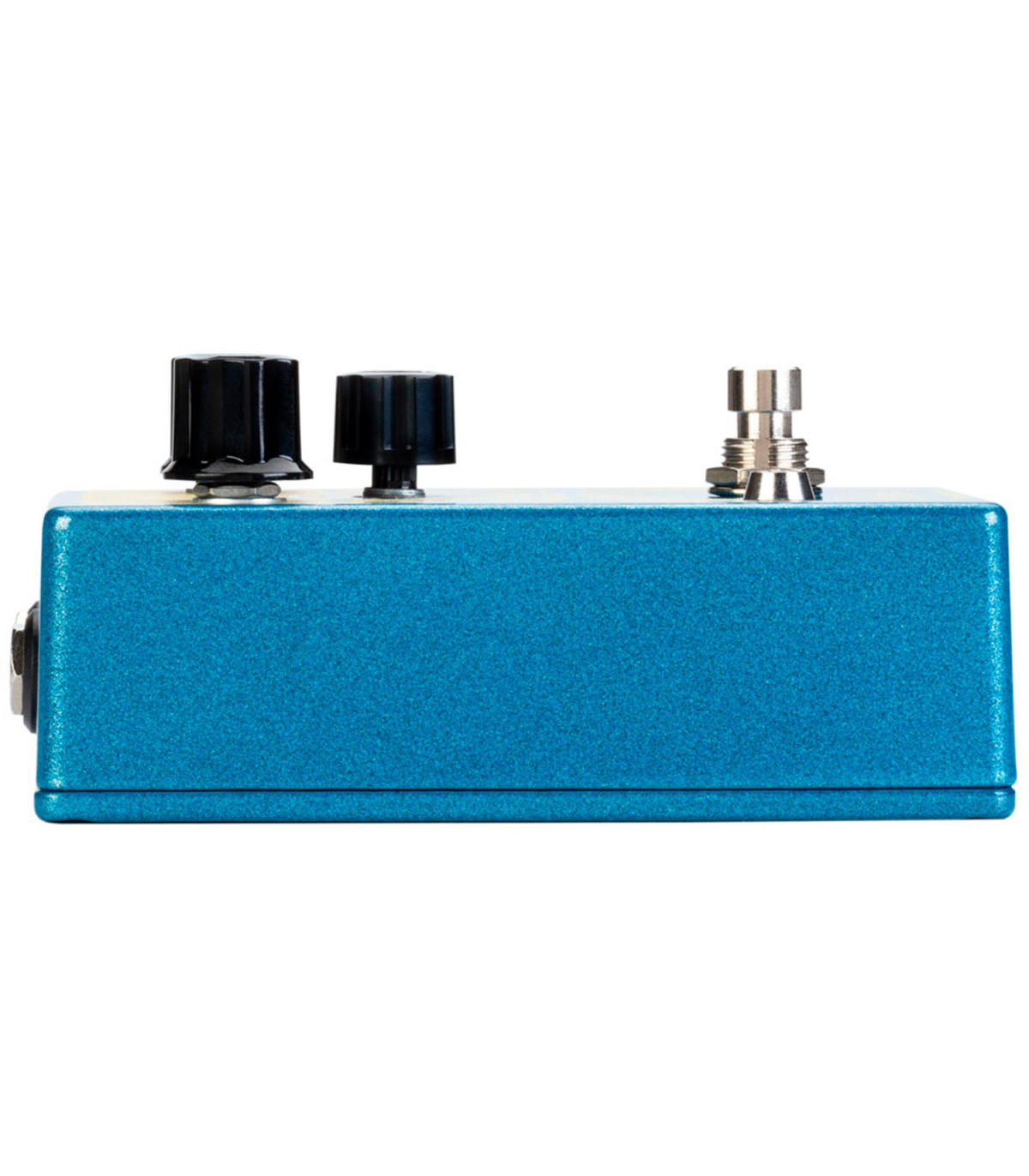

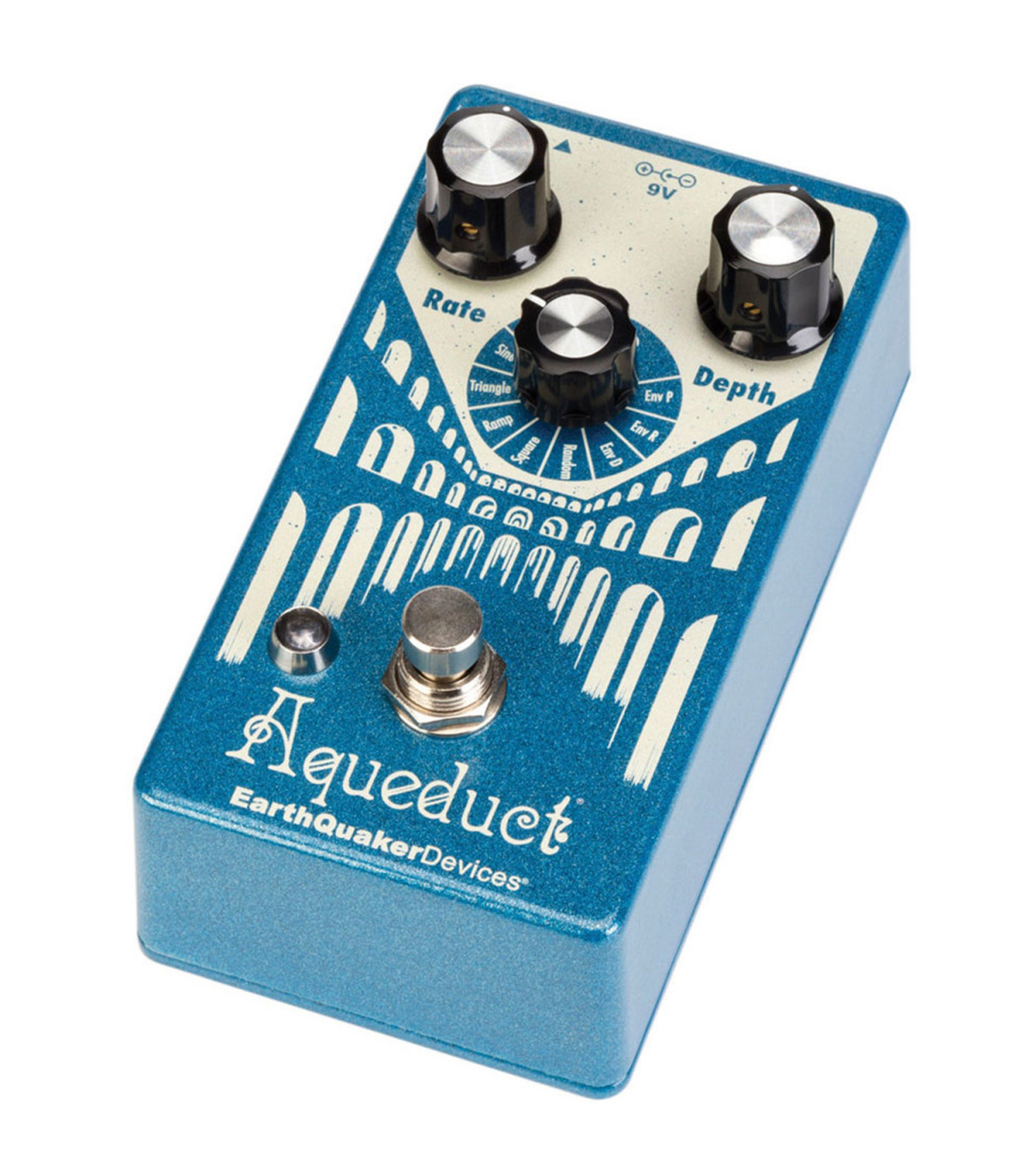

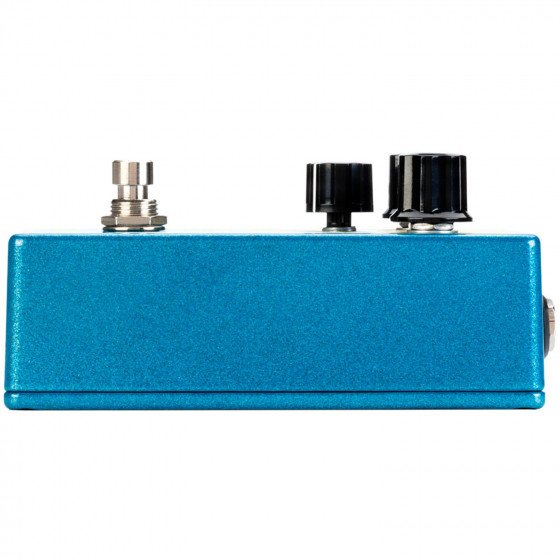

Earthquaker Devices Aqueduct
- Vibrato Pedal
- Digital operation functionality
- Vintage-inspired vibrato sounds
- From synth-style sound pulses to Whammy-Bar type Pitch Bends
- 8 modes (Sine/Triangle/Ramp/Square/Random/Env D/Env R/Env P)
- Purely analog Dry signal path@True Bypass
- Rate and Depth controls
- 8-way rotary switch for mode selection
- The footswitch functions as both latching and momentary switch
- Silent Soft-Touch relay-based circuit
- Bypass footswitch
- Status indicator LED
- Durable metal enclosure

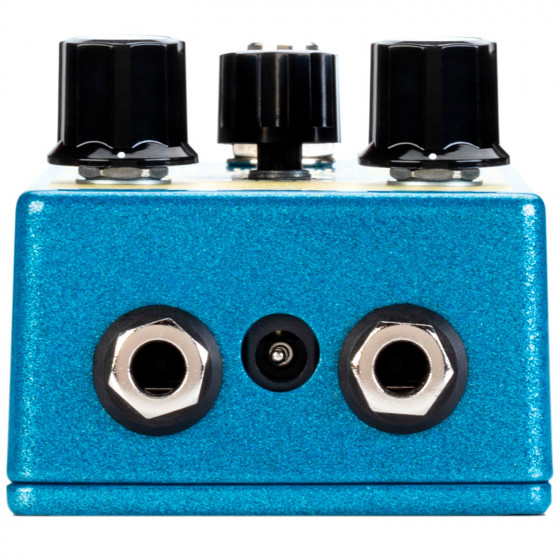

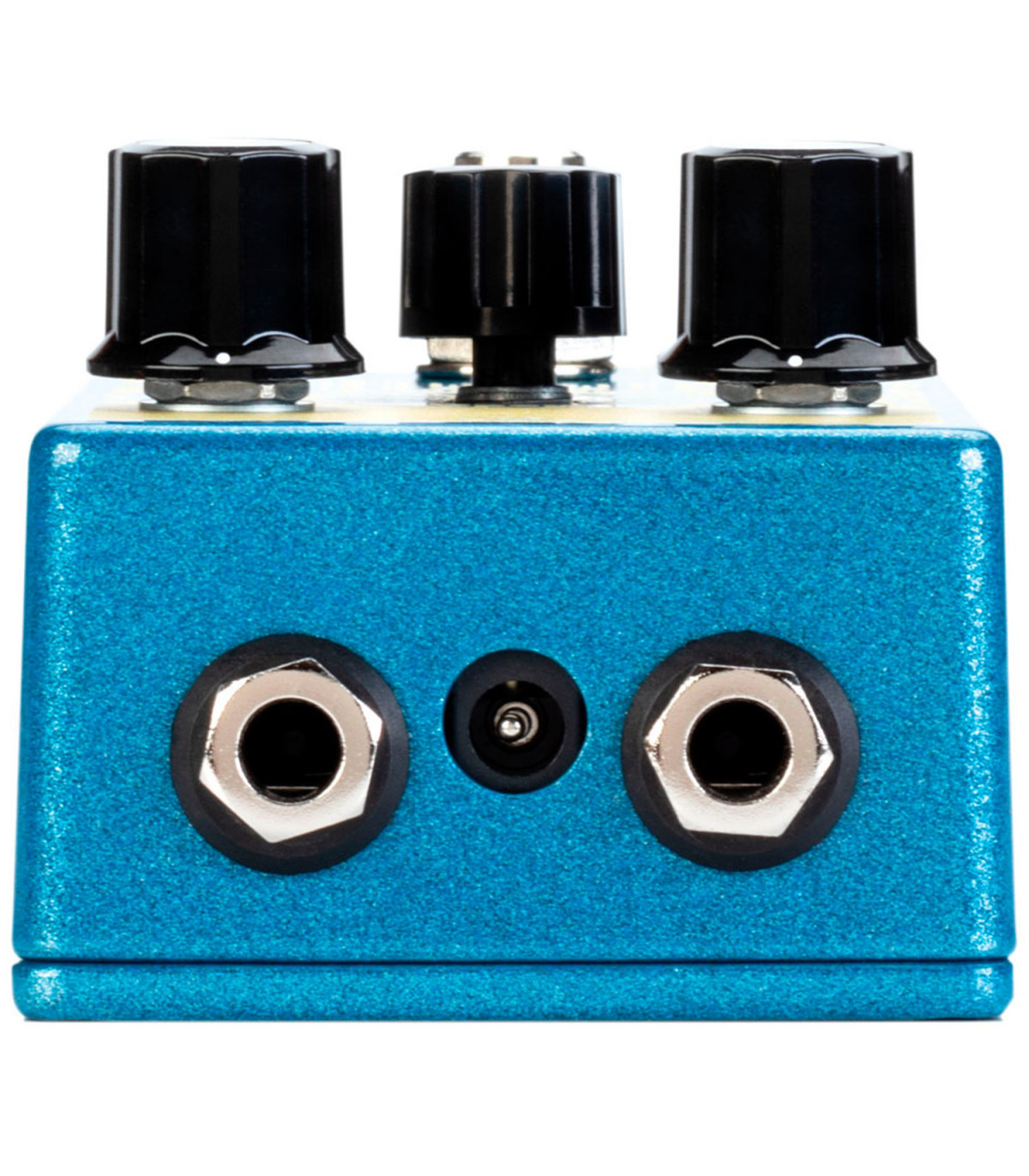

- 1/4" mono input and output jacks
- Powered by 9 V DC power supply with 2.1 mm coaxial hollow connector and negative center polarity (optional, not included)
- Power consumption: 68 mA
- Dimensions: 117 mm x 64 mm x 57 mm
- Weight: 370 g
With the Earthquaker Devices Aqueduct, the effects pedal manufacturer from Akron, Ohio, introduces a vibrato effect featuring eight different sound modes that deliver particularly versatile and inspiring tones. While the Rate and Depth controls determine the modulation speed and intensity as usual, the first five presets of the mode switch offer different waveforms that fundamentally shape the character of the sound. In the remaining three modes, an Envelope-Control is also available, allowing the user to manipulate various parameters of the effect through touch sensitivity, encouraging experimentation with expression and dynamics. Lastly, the Earthquaker Devices Aqueduct is equipped with a True Bypass relay controlled by Flexi-Switching, which also functions as a momentary switch, activating the effect only when the pedal is pressed.
EAN13: 0855755007343
Data sheet
- Effects Loop
- No
- Power Supply
- A/C Adaptor
- Format
- Classic
- Technology
- Analog
- True Bypass
- Yes
- Made In
- Usa
- Effect For
- Guitar
- Voltage
- 9V
- In
- Mono
- Out
- Mono
- Effect Type
- Vibrato
- Power Supply Included
- No
- USB Port
- No
- MIDI Control
- No
- EXP Out
- No
- SALIDA FOOTSWITCH
- No
- Tap Tempo
- No
