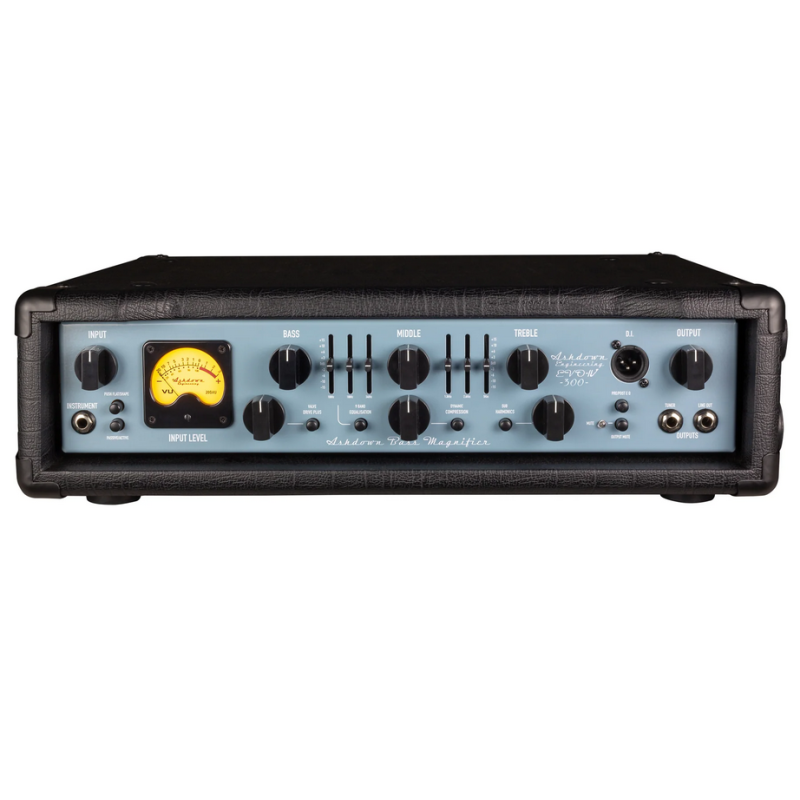

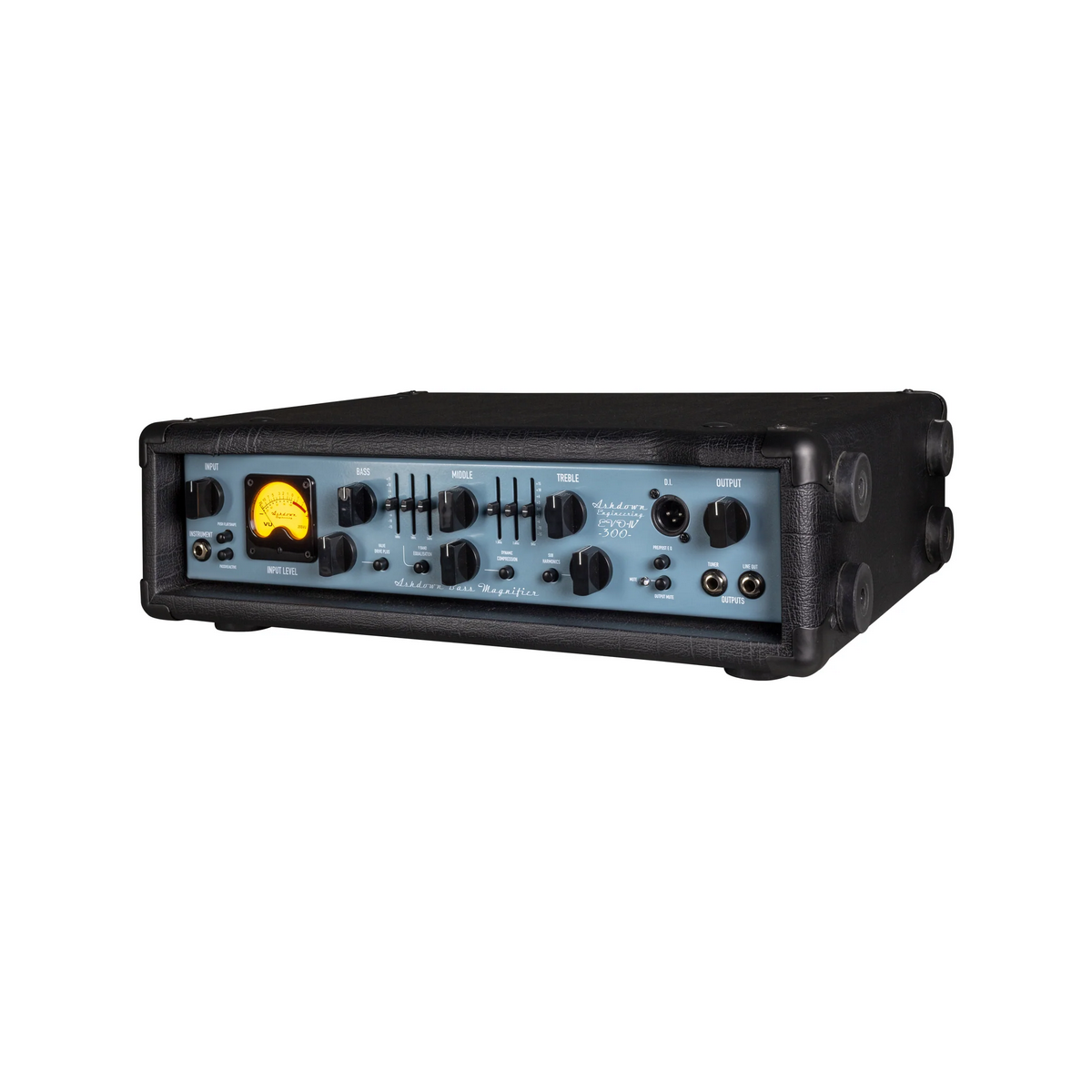

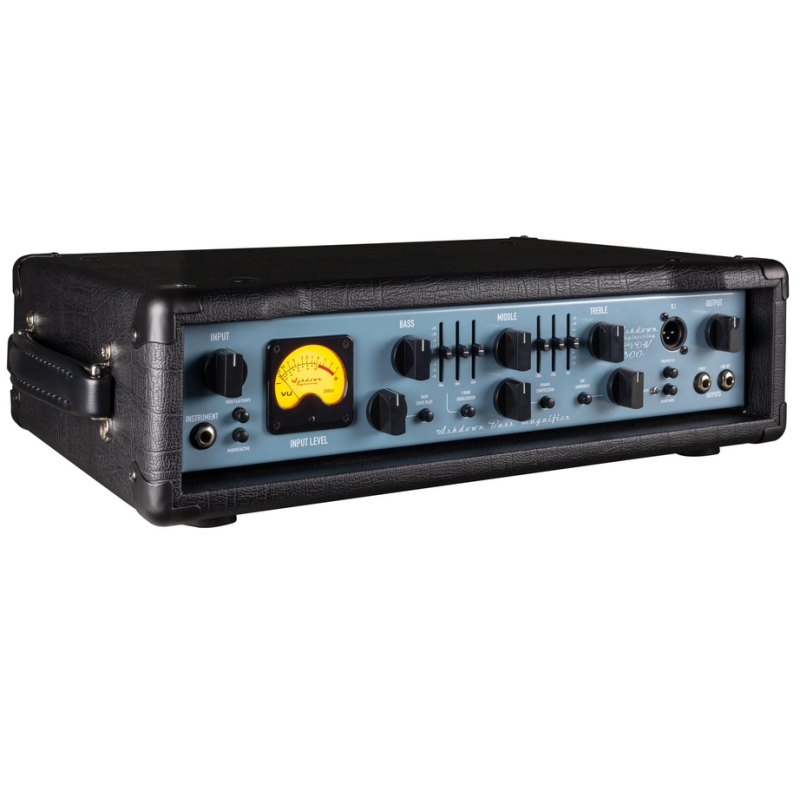

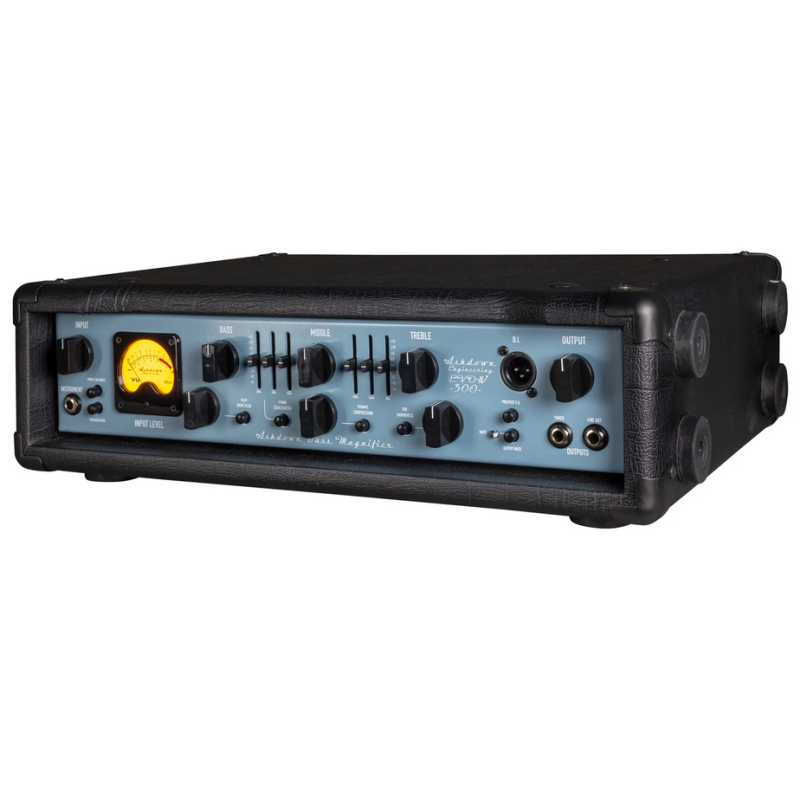

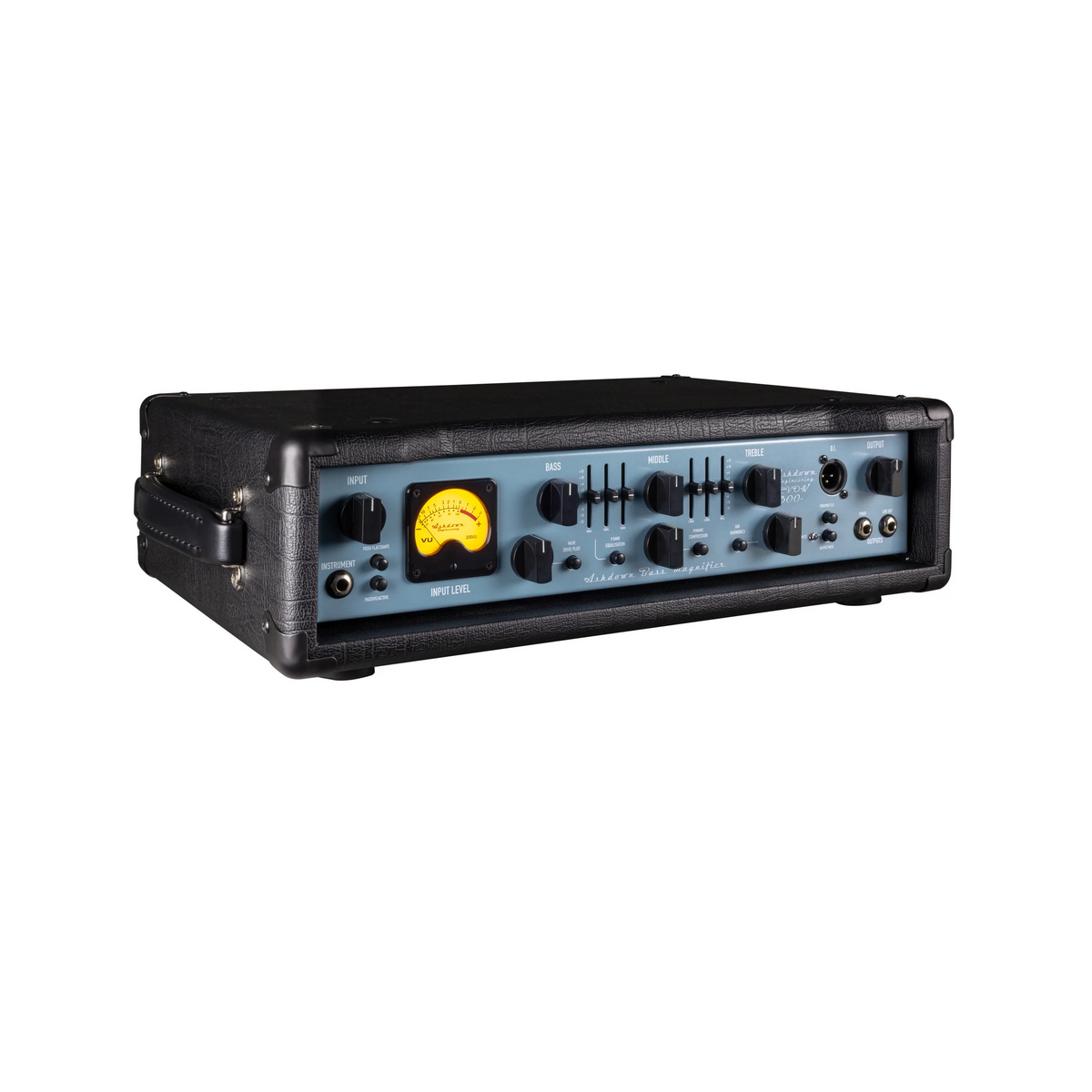

Ashdown ABM 300 Evo IV Head

The EVO IV features a sophisticated 9-band equalizer with the usual bass, mid, and treble controls, as well as six faders to precisely cut or boost frequencies at 100 Hz, 180 Hz, 340 Hz, 1.3 kHz, 2.6 kHz, and 5 kHz. The equalizer can be activated via a footswitch, allowing the bassist to instantly switch from a flat sound without frets to their preferred EQ setting. The NEW 9-band equalizer is a sonic perfection revelation and will impress even seasoned ABM users.

• Power output: 300 Watts
• Power requirements: 115-230 Volts
• Speaker outputs: 2 jack/Neutrik speakon outputs
• Frequency response: -3dB at 17Hz and 30KHz
• High impedance input: 3.9 M ohms, input range of 150mV
• Low impedance input: 10k ohms, input range 300mV - 40V p-p
• Line input: 22k ohms impedance, nominal input level of 0dBu
• DI output: 600 ohms balanced, 0dBu nominal
• Tuner output: 22k ohms impedance, nominal level of 0dBu
• Minimum impedance: 4 ohms
• Effects send: 22k ohms impedance, nominal level of 0dBu
• Effects return: 22k ohms impedance, nominal input level of 0dBu
• Preamp tube: 1x 12AX7
• Dimensions (mm): 146 x 488 x 336
• Weight: 12.5 kg

About Ashdown Engineering

The history of Ashdown dates back to 1997, but even in those early days, the company's founder, Mark Gooday, was already regarded as a veteran of bass amplifiers.After intense competition with another leading electric bass amplifier manufacturer in the UK, Gooday managed to position his company among the largest thanks to its pioneering approach and focused on even higher aspirations, developing what this manufacturer is today.
