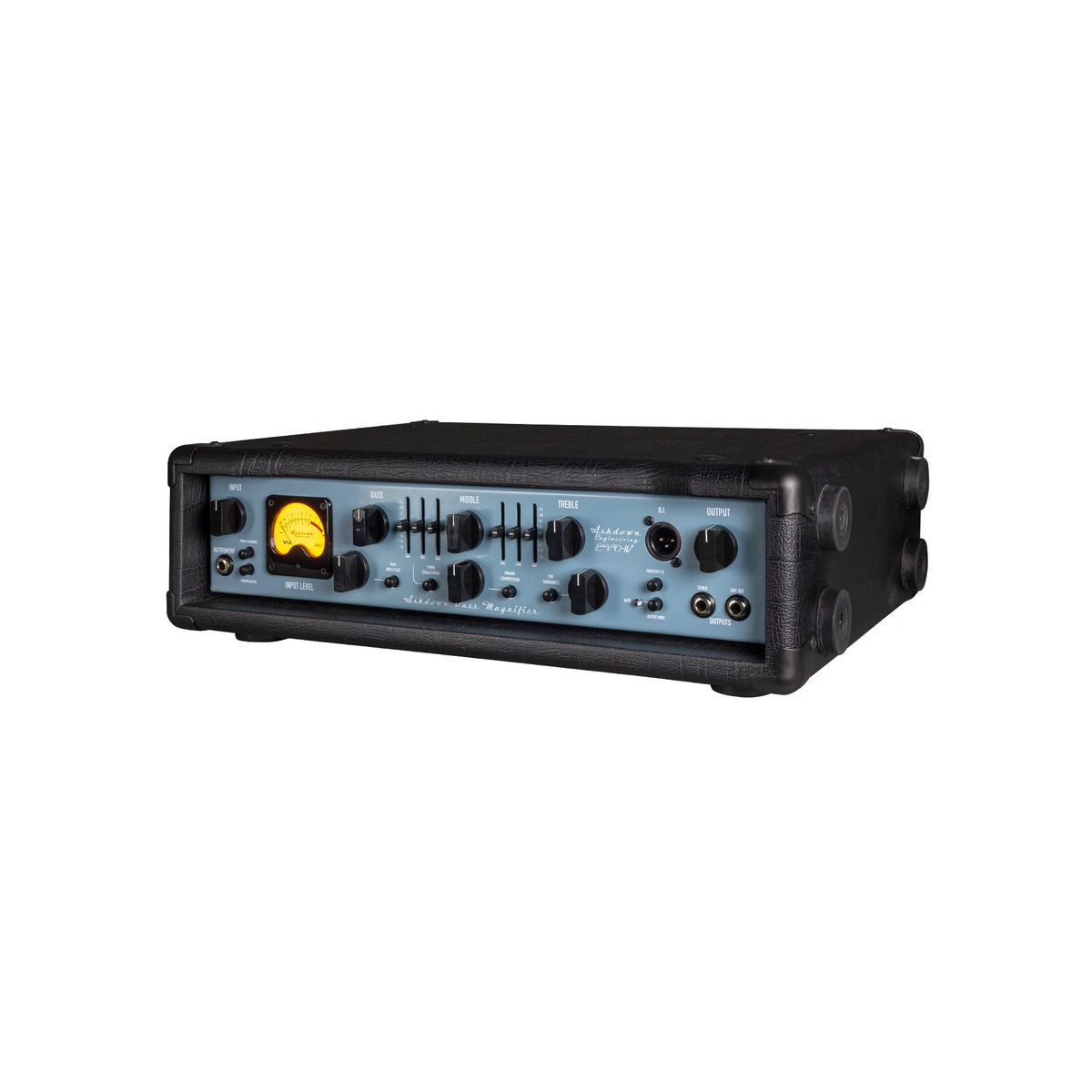

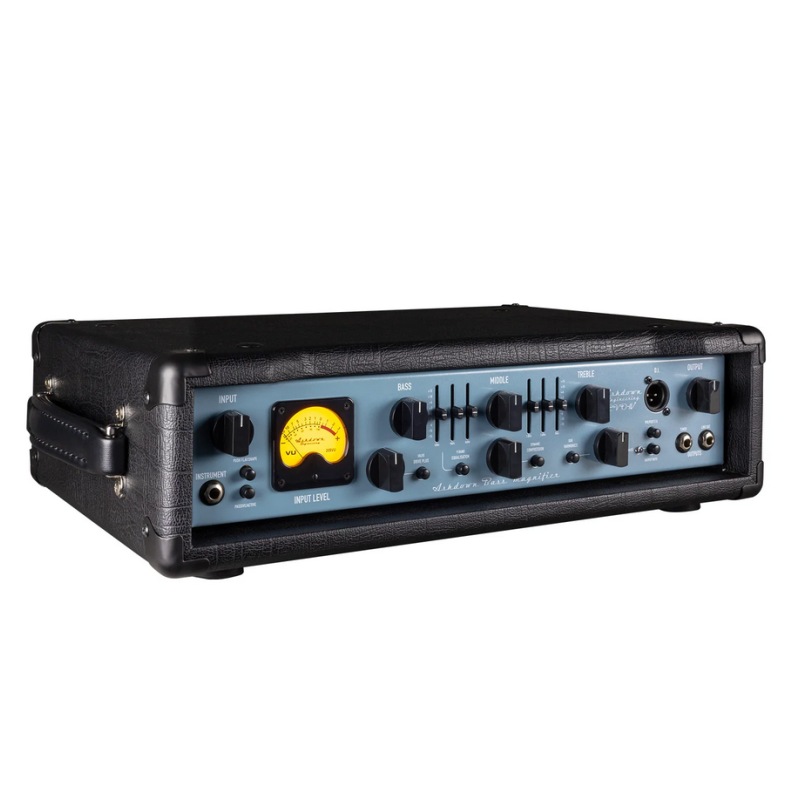

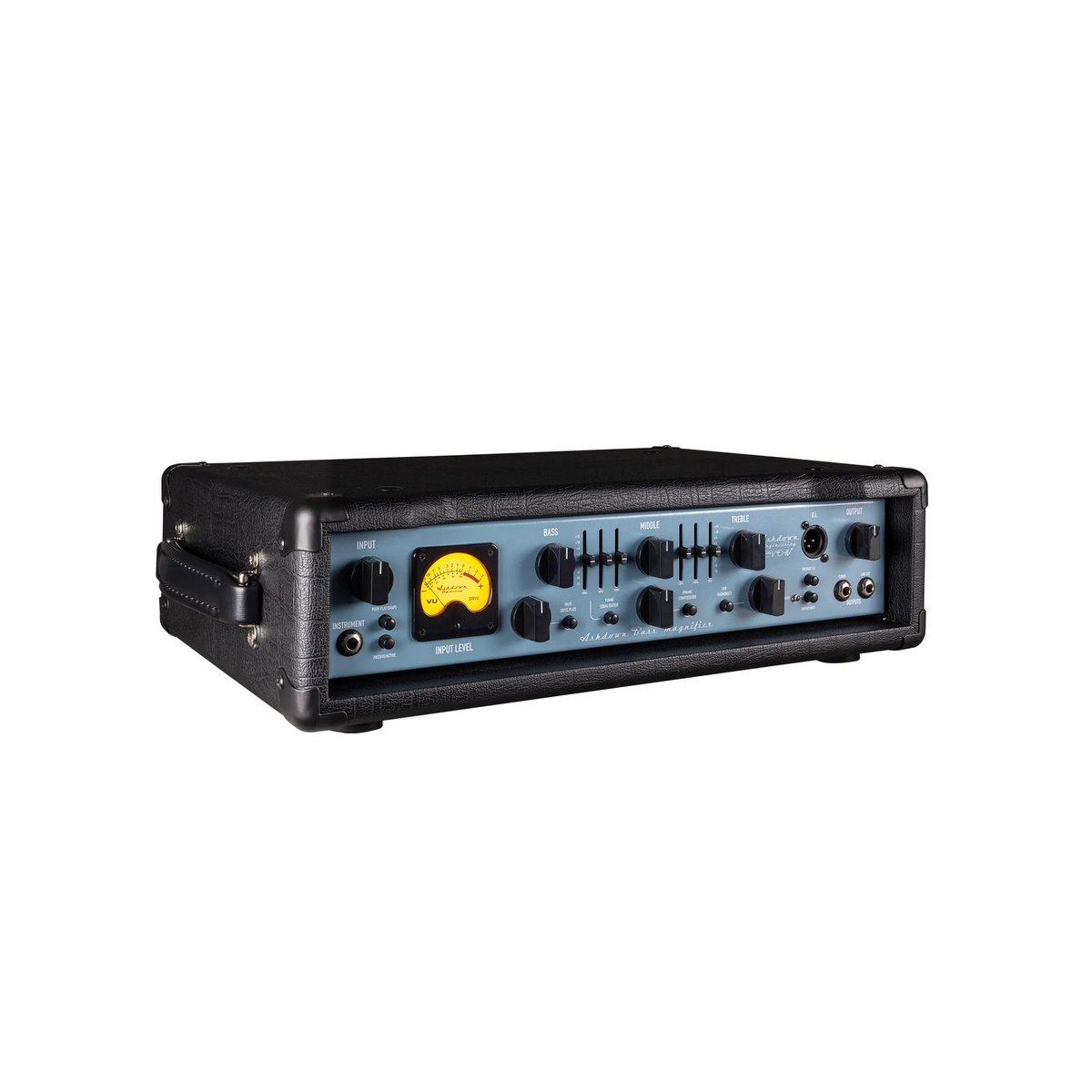

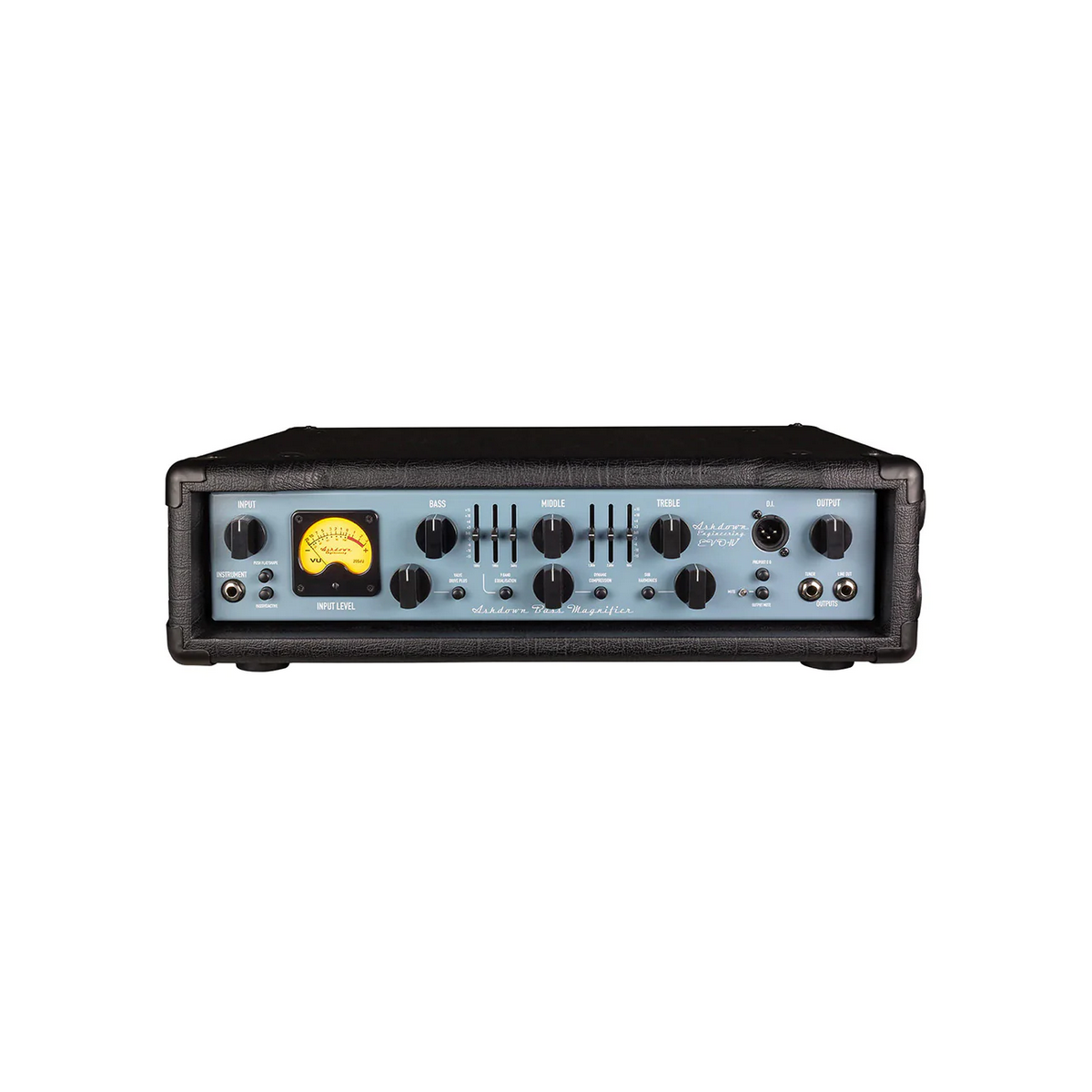

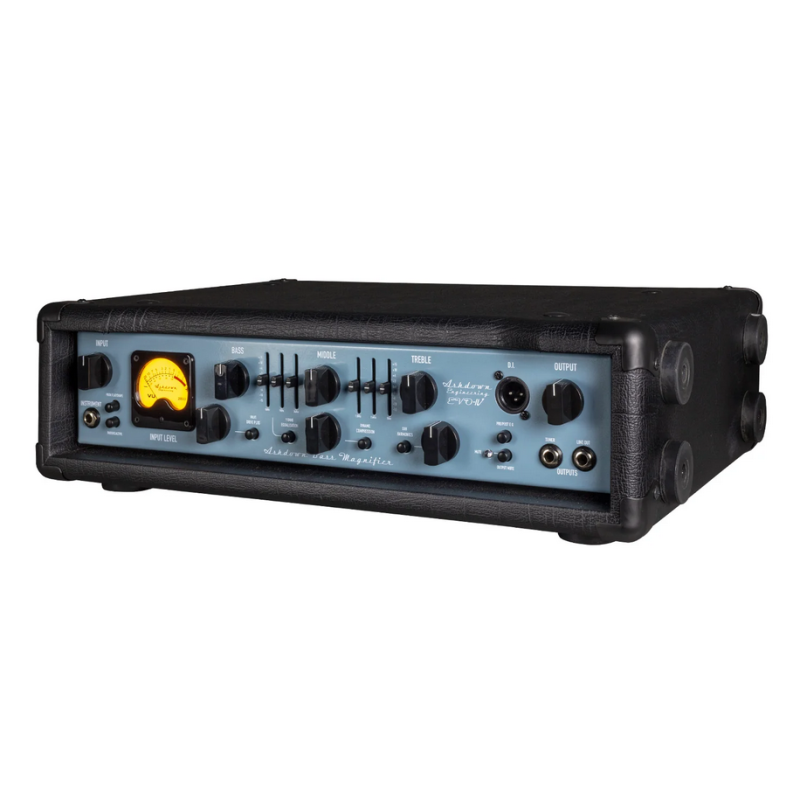

The ABM-EVO IV features a 9-band EQ and a range of upgraded features on Ashdown's flagship bass amplifier. Immediately recognizable on stages worldwide thanks to its bright VU meter.
- Power: 600 Watts
- 9-band EQ
- Sub-octave generator
Our tube preamp section has also been upgraded in EVO IV. The 12AX7 tubes allow musicians to shape a sound from pristine clean to the thickest, most complete overdrive available today. The Drive level can be preset and toggled on and off via the footswitch, providing access to a wide range of clean, warm, and saturated tones.
- Power output: 600 watts
- Power requirement - 115-230 volts

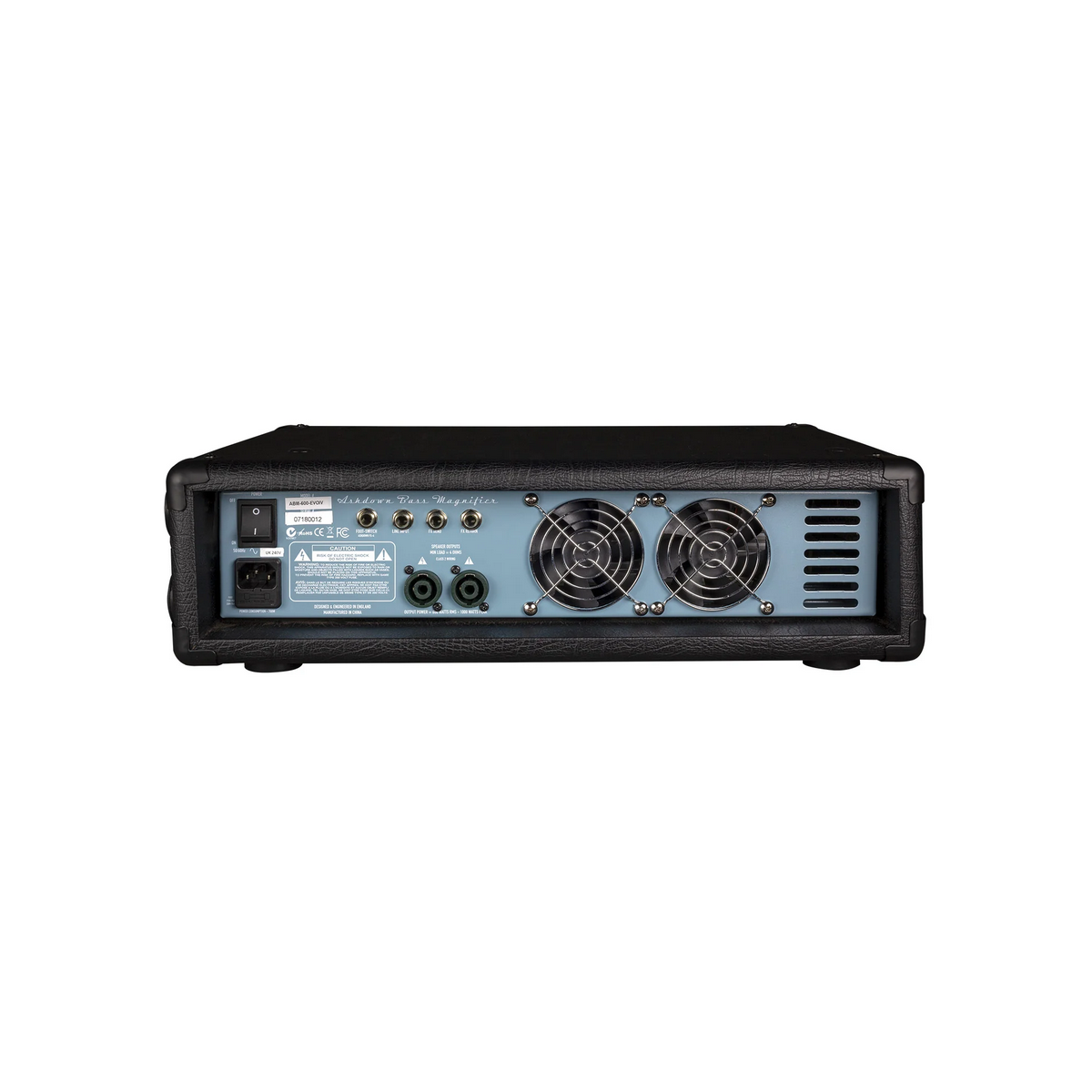

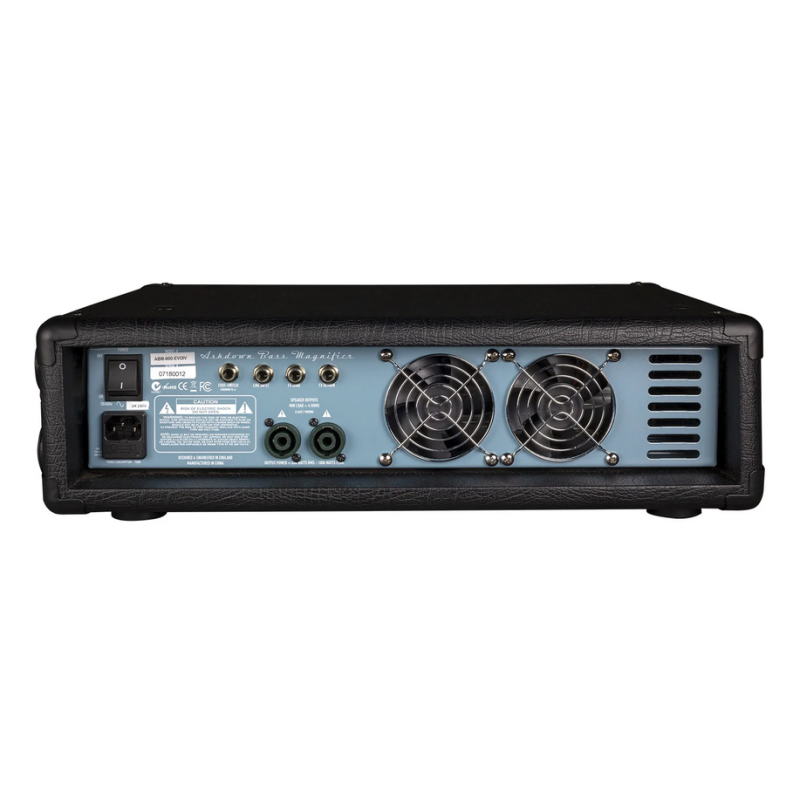

- Speaker outputs: 2 Jack/Speakon outputs
- Frequency response - -3dB @ 17Hz and 30KHz
- High impedance instrument input: 3.9 M ohms, input range of 150 mV
- Low impedance instrument input: 22k Ohms, nominal input level of 0dBu
- Line input: 22k Ohms impedance, nominal input level of 0dBu
- DI output: 600 ohm balanced, nominal level 0dBu
- Tuner output: 22k Ohms impedance, nominal level 0dBu
- Effects send: 22k Ohms impedance, nominal level 0dBu
- Effects return: 22k Ohms impedance, nominal input level 0dBu
- Dimensions (mm) - 146 x 489 x 336
- Weight (kg) - 12.5
EAN13: 0794677758523
