Aguilar OBP-3TK 3-Band Preamp
Reference:
MAGOBP-3TK
Add to compare
(0)

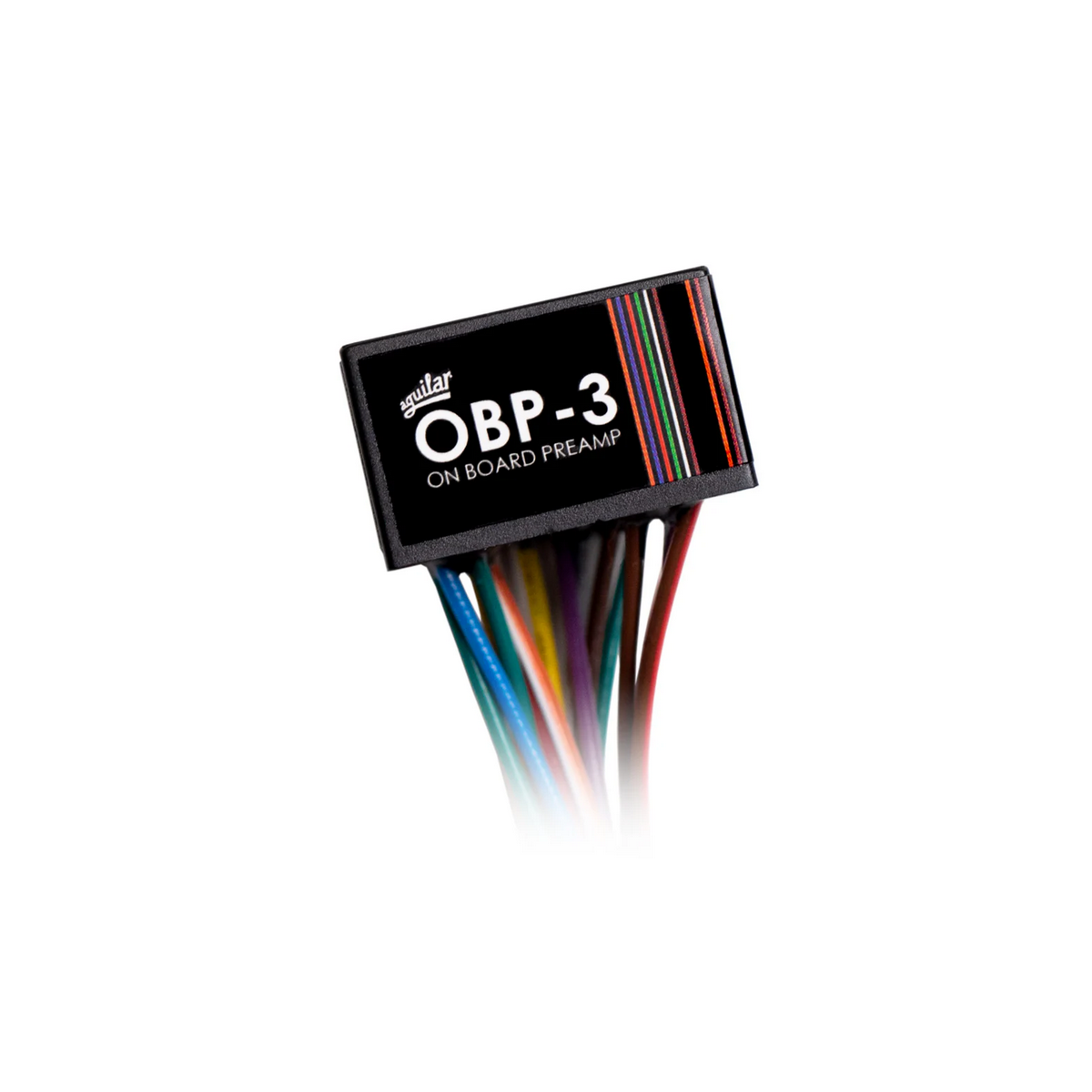

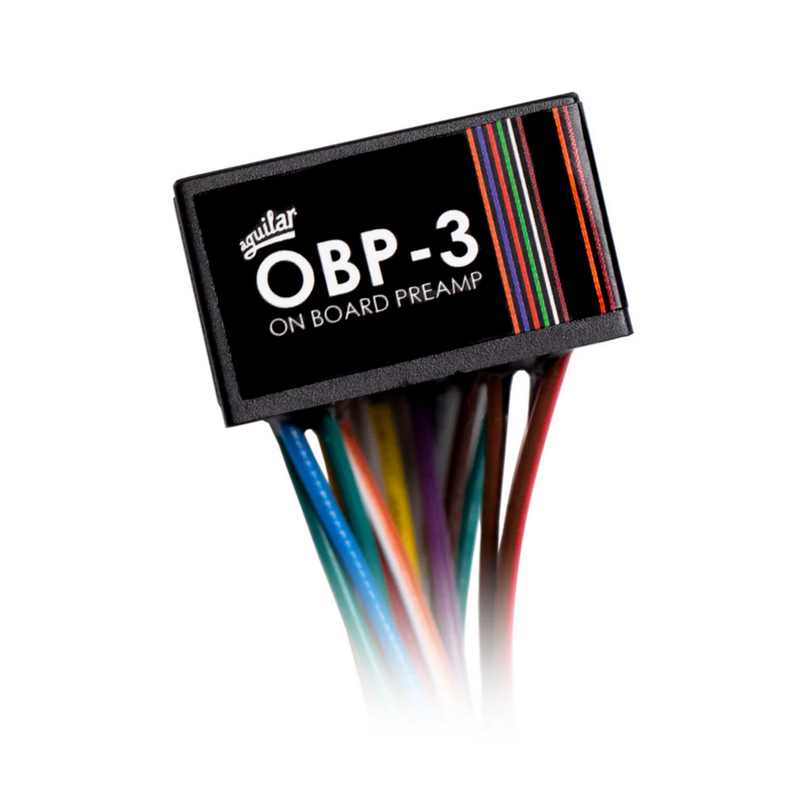

Three-band preamp, OBP-3TK.
- OBP-3TK: Independent treble, mid, and bass pots, with a black mini toggle switch to select the mid frequency
- Bass control: ±18 dB at 40 Hz
- Mid control: ±16 dB at 400 Hz or 800 Hz
- User-selectable center frequency
- Treble control: ±16 dB at 6.5 kHz
- Input impedance: 1 megaohm
- Output impedance: 100 ohms, operates at 9 or 18 volts
- Distortion: 0.019 at 10 kohm load
- Noise: -95 dBm unweighted
- Battery life: 324 hours
The OBP-3 TK is a three-band preamp with bass, mid, and treble boost and cut, offering a wide dynamic range, low distortion, and the ability to reproduce the full dynamic spectrum of your instrument. The OBP-3 provides multiple wiring options and can be connected with a push/pull pot or a mini toggle switch for mid-frequency selection.

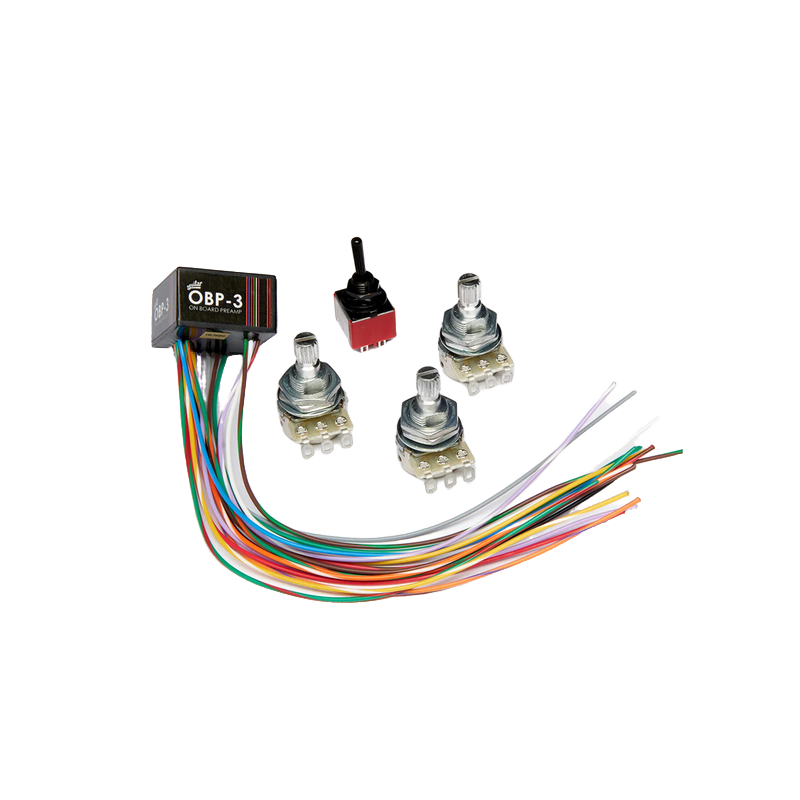

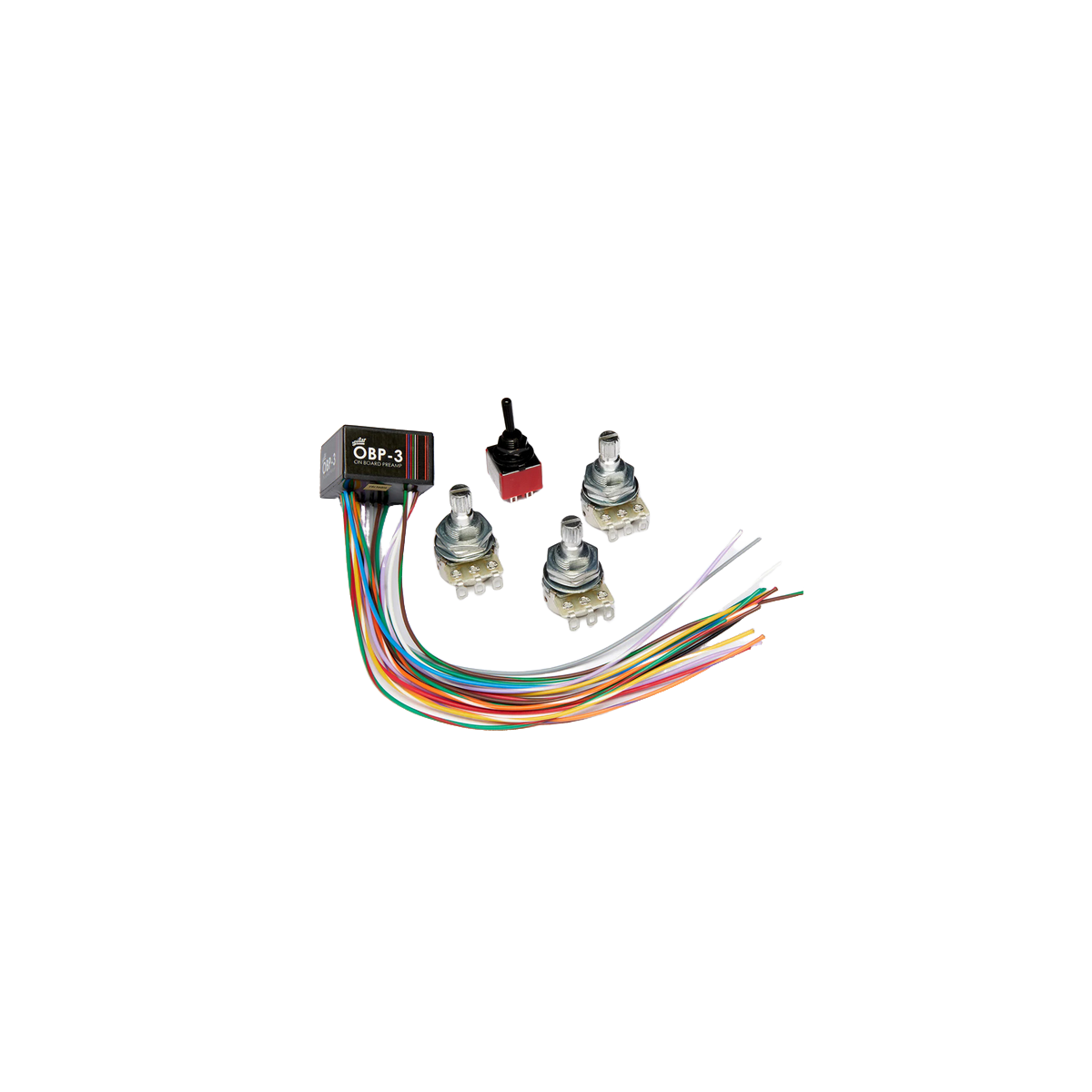

The OBP-3 TK kit includes independent bass, mid, and treble pots, plus a black mini toggle switch for mid-frequency selection. The OBP-3 is Aguilar’s most versatile onboard preamp, featuring +/-18 dB boost/cut at 40 Hz, +/-16 dB at 400 Hz or 800 Hz, and +/-16 dB at 6.5 kHz.
EAN13: 0824599000094
--
