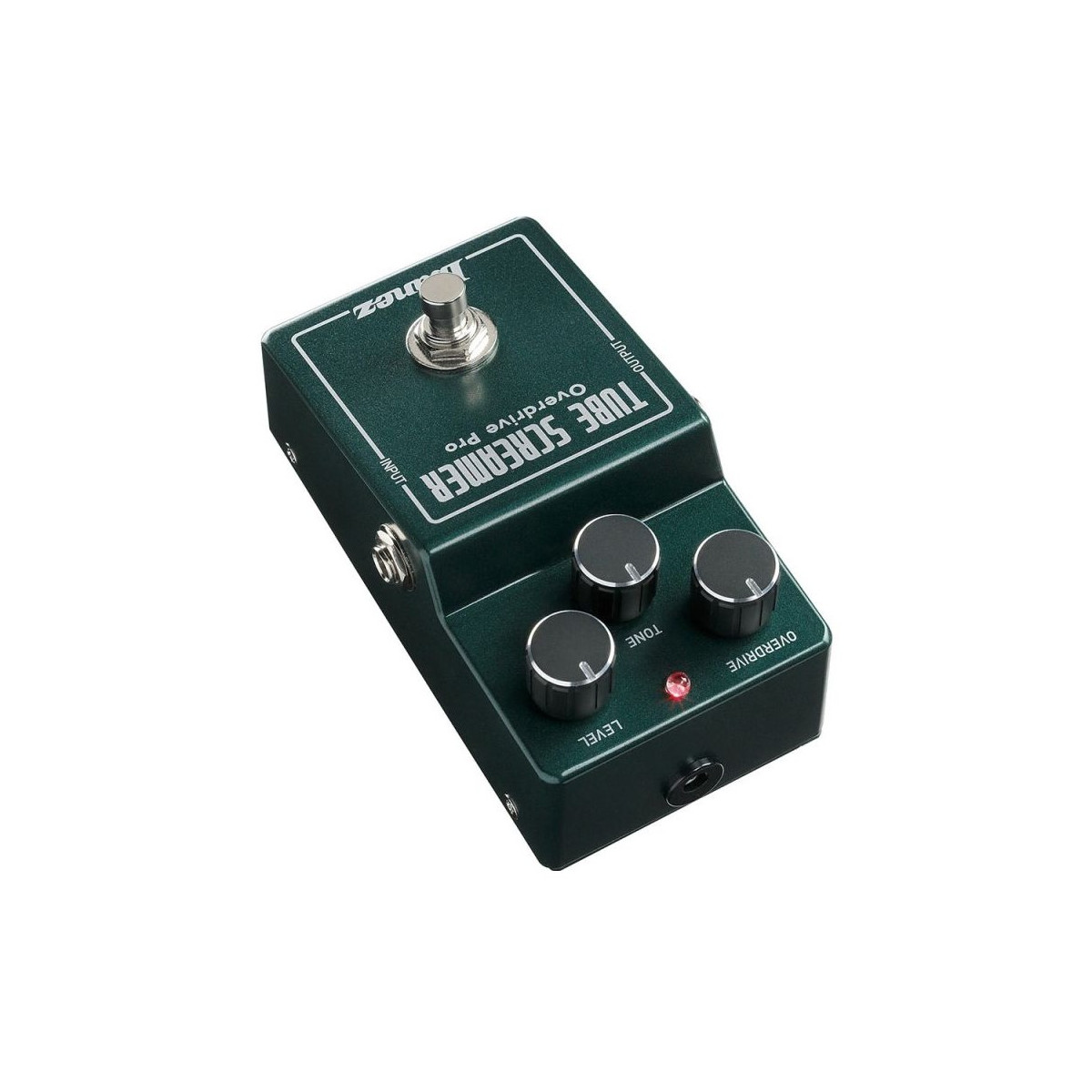

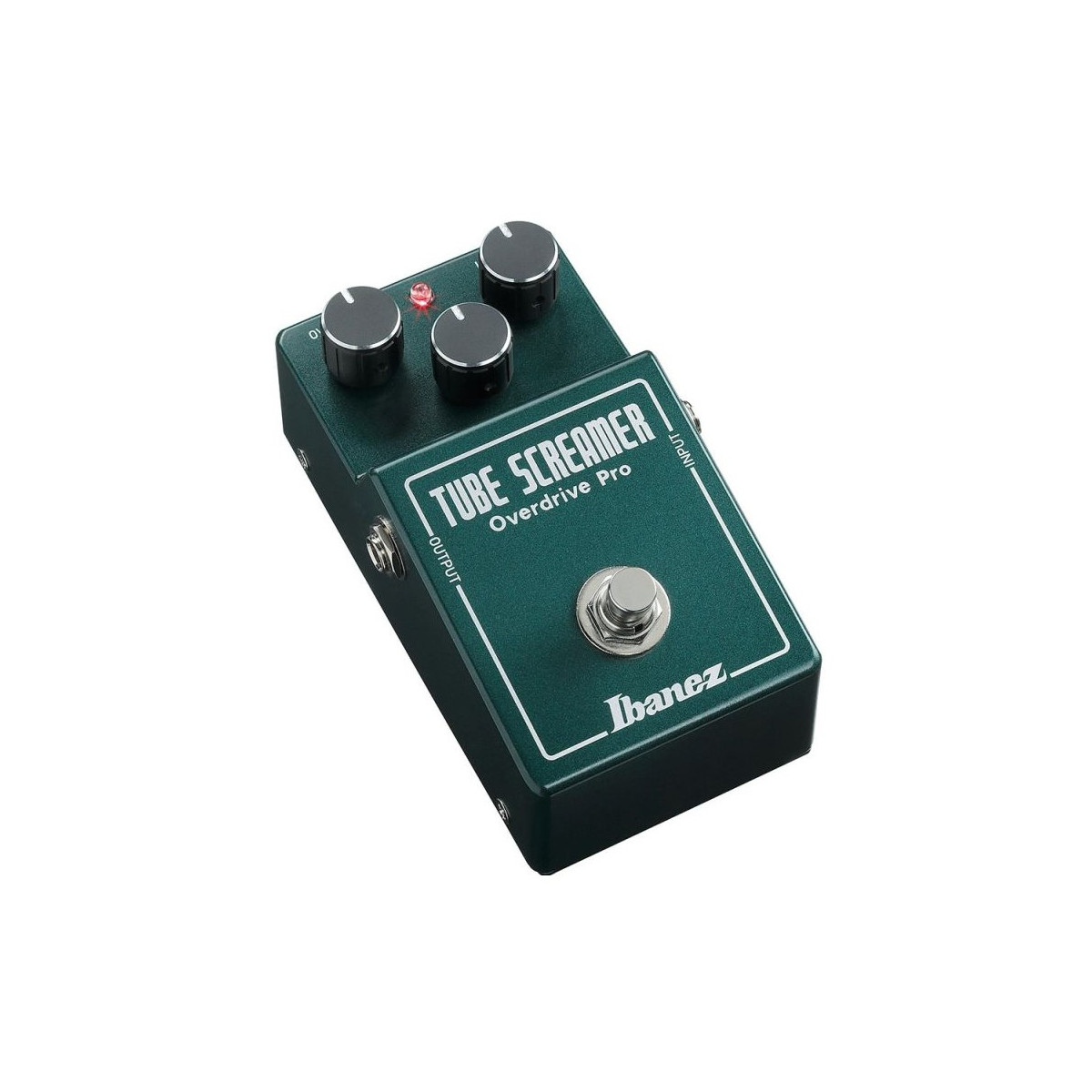

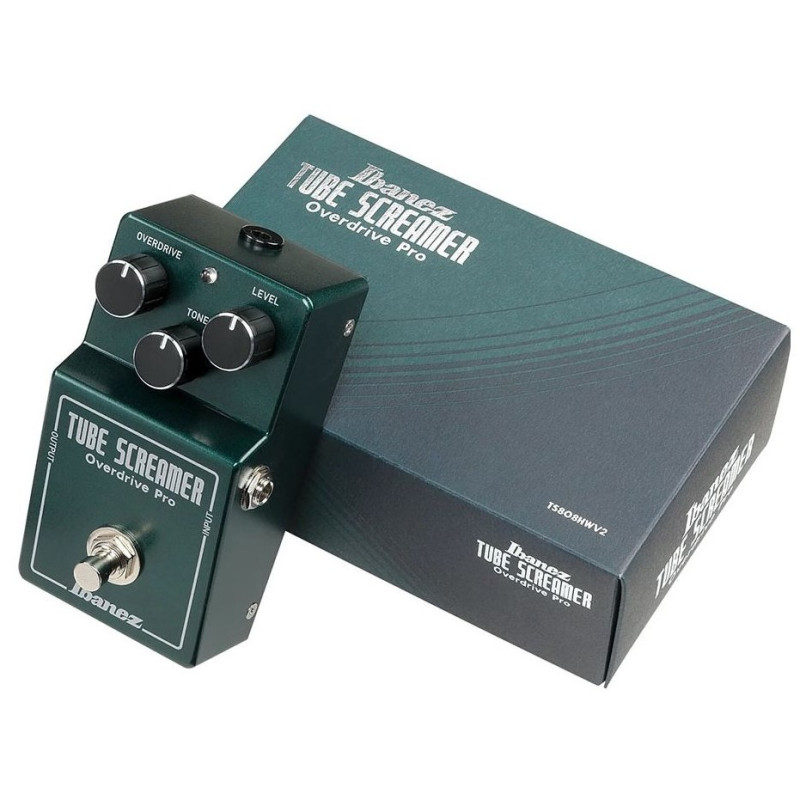

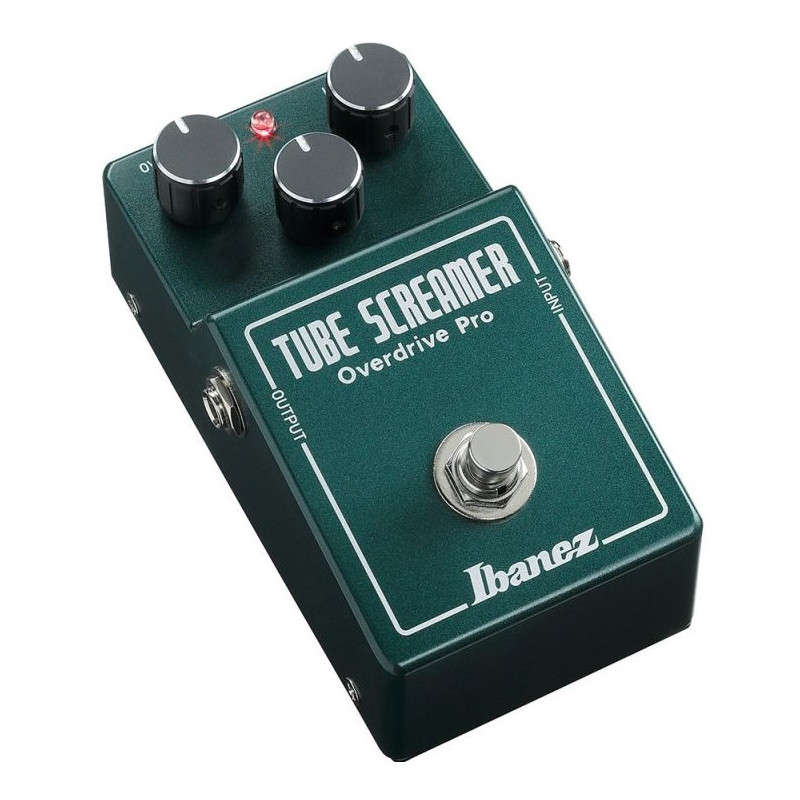

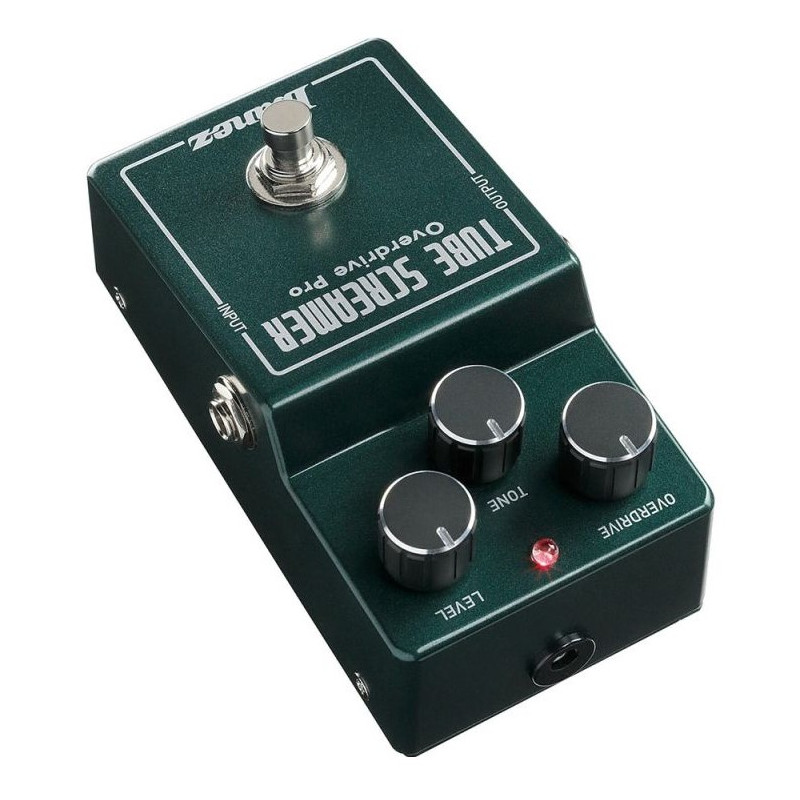

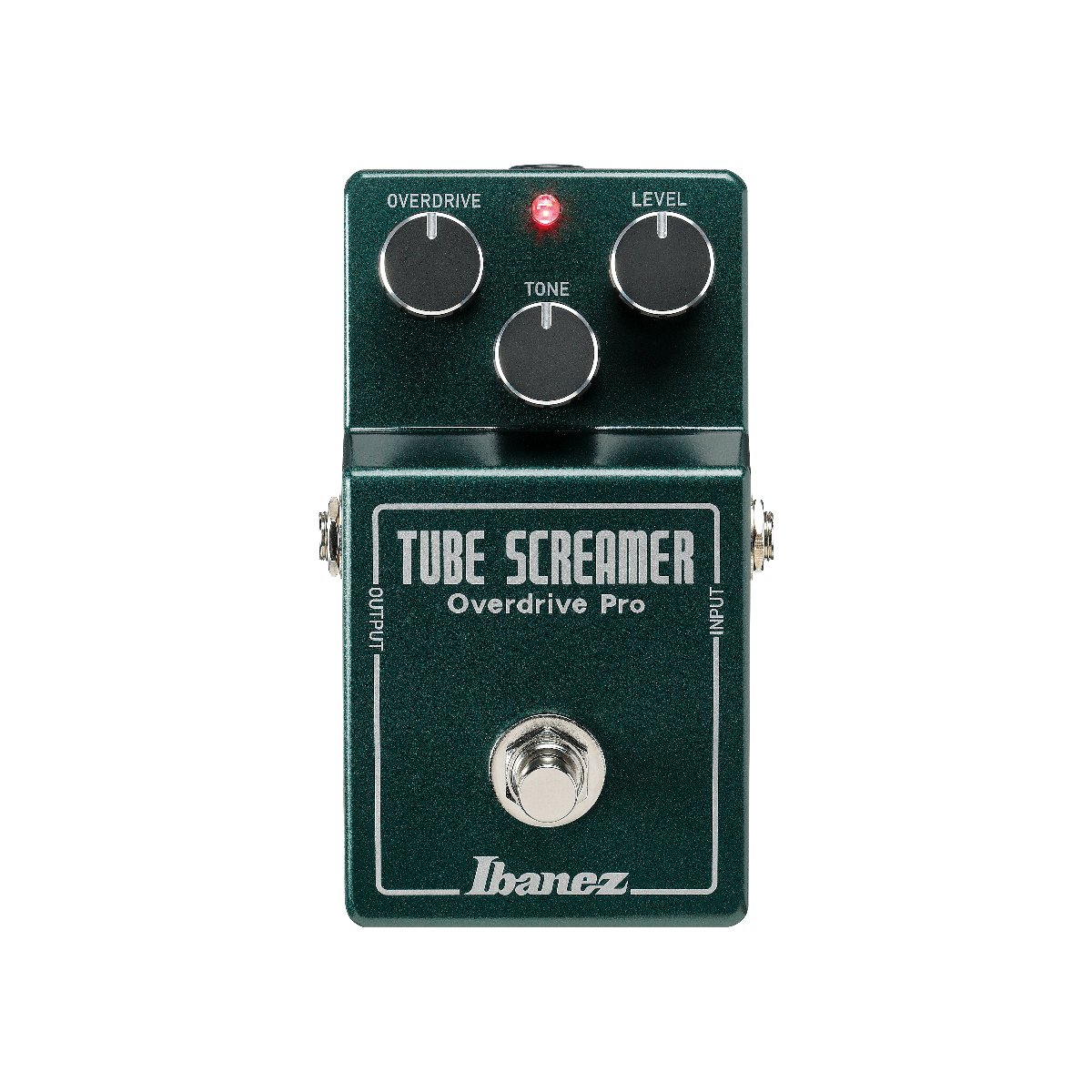

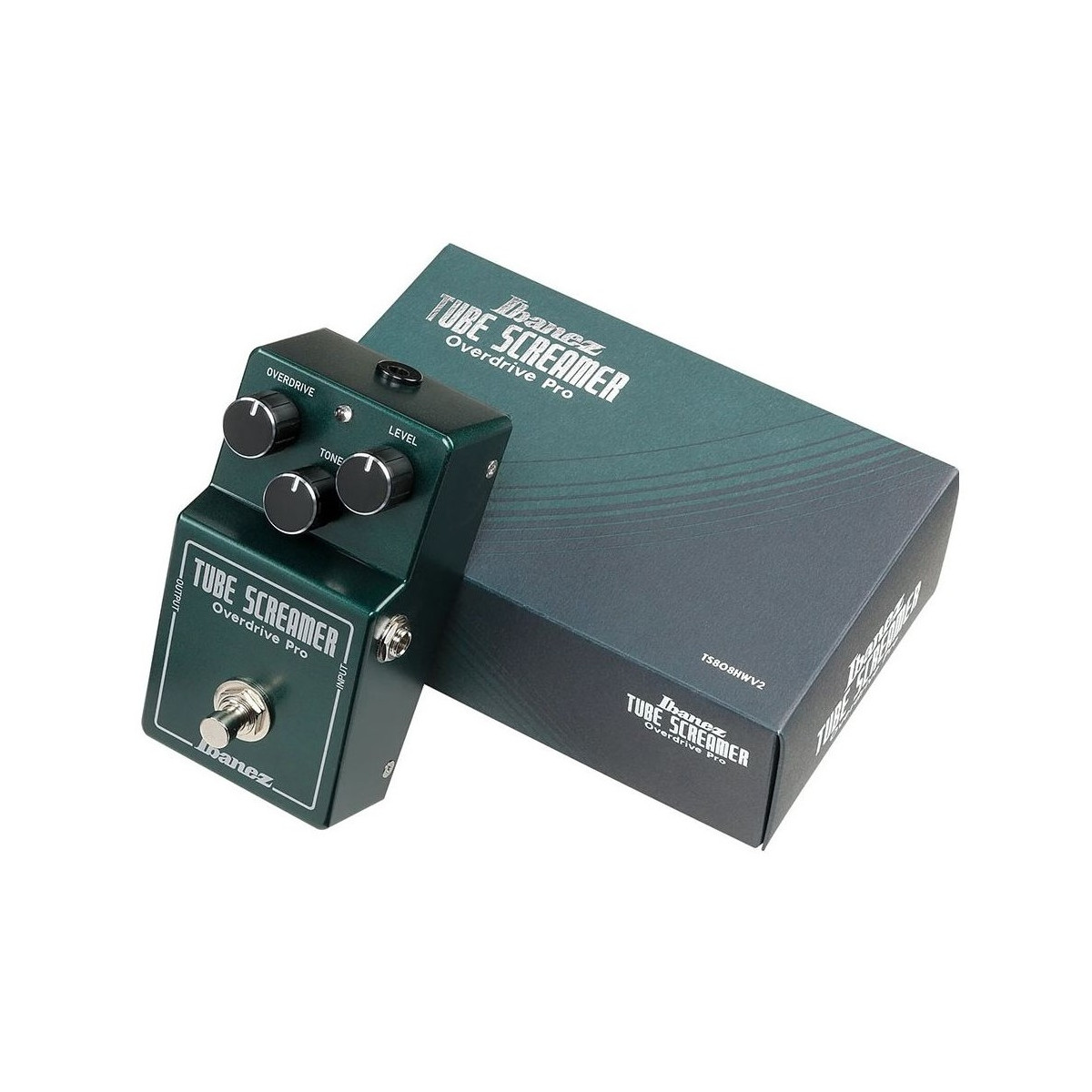

Ibanez TS808 Handwired V2
Handwired electric guitar effects pedal, TS808 Handwire.
- Overdrive effect
- Handwired (Japanese MOGAMI OFC cable)
- True Bypass
- Operates on batteries and 9V power supply
- Made in Japan
At Ibanez, they aimed to take the iconic Tube Screamer and push it further with a new concept of the handmade flagship model. They evaluated every component while striving to stay true to the pedal’s transparent sound focused on the midrange. After numerous prototypes, they concluded that the JRC NJM4558 operational amplifier was essential to achieve the legendary Tube Screamer tone.
At the same time, this new design offers a wider range of tones thanks to the incorporation of premium components like MOGAMI OFC cables, which further enhance the benefits of a hand-wired pedal. Additionally, a boost has been added to the final stage of the circuit, increasing the maximum output level by +6dB. Its look has also been refreshed, giving it a high-end appearance while retaining the traditional shape.
- Overdrive Effect
- Hand-wired
- Japanese MOGAMI OFC Cable (AWG21)
- Overdrive, Tone, and Level Controls
- Custom-designed black aluminum knobs
- Standard 2.1mm DC Jack (center negative)
- True Bypass
- I/O: INPUT, OUTPUT
- Current Draw: 7mA@9V / 11mA@18V
- Power Supply: One 9-volt battery or external AC adapter
- Made in Japan
EAN13: 4549763362414
